Starting and Charging Schematics

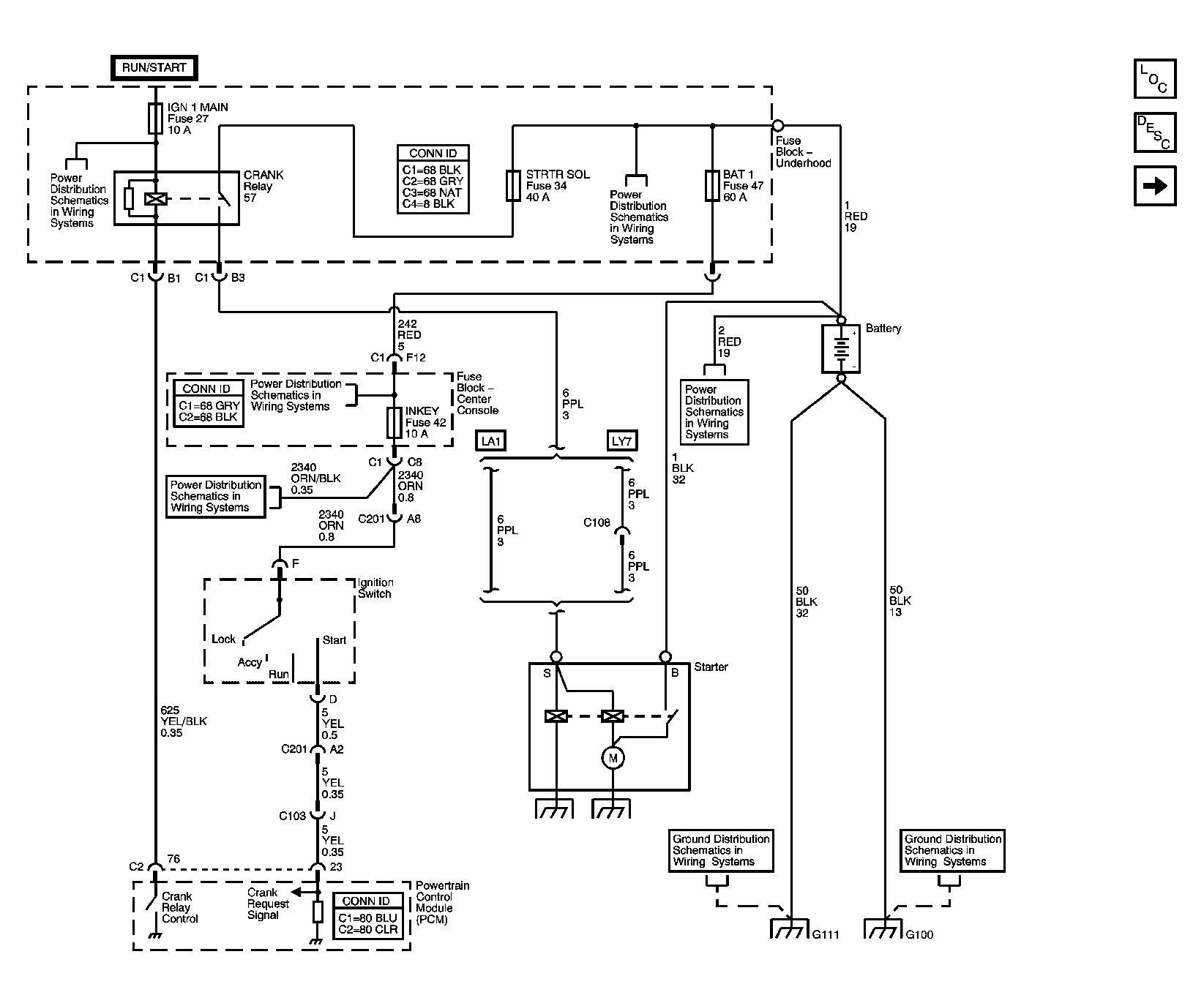

Fig 1: Engine Cranking Schematic
Courtesy of GENERAL MOTORS CORP.

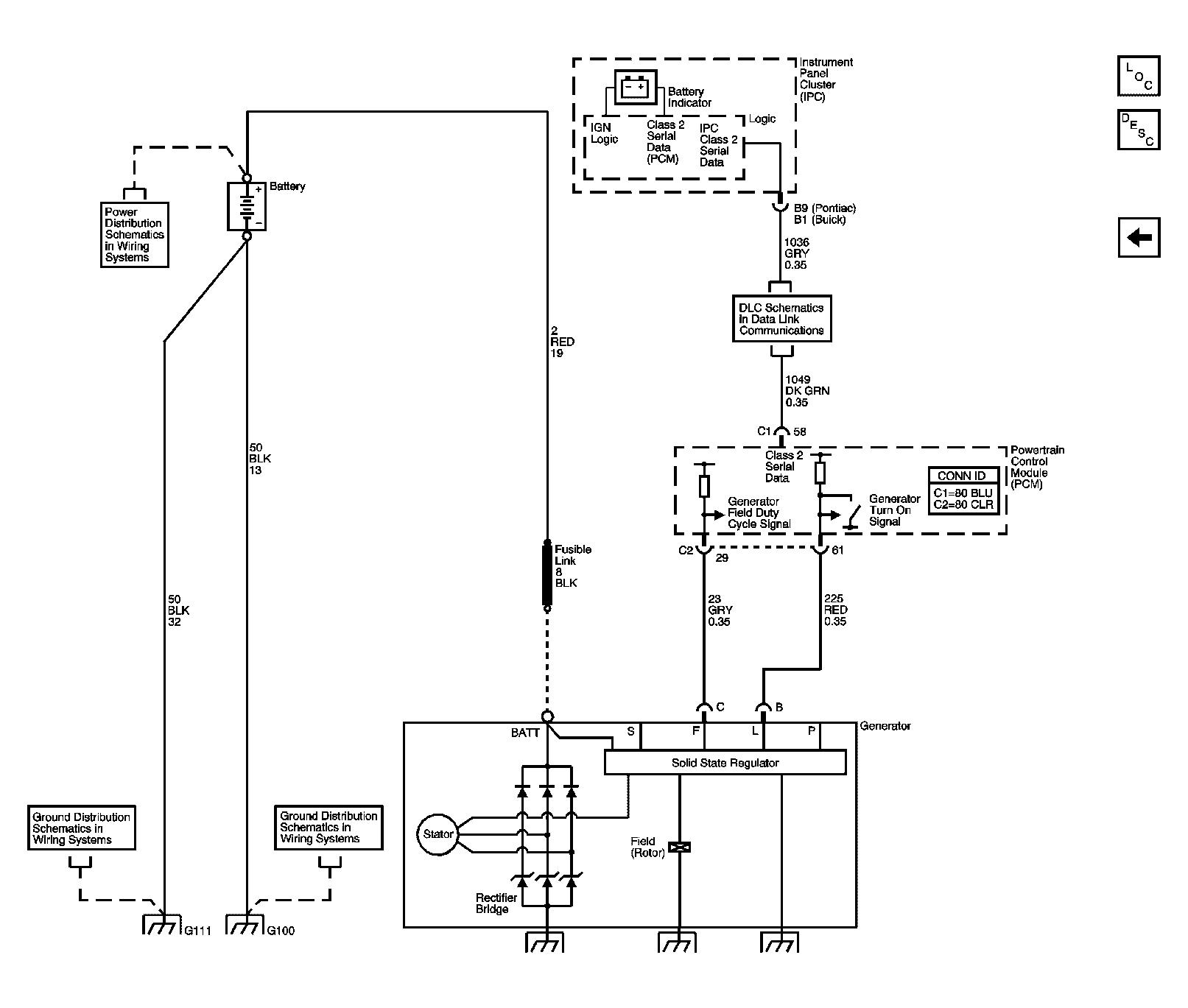

Fig 2: Charging Control, Indicator Schematic
Courtesy of GENERAL MOTORS CORP.
