Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • The negative battery cable must not be connected to the battery prior to the installation of the engine harness ground terminal to the engine block.
  • The negative battery cable must not be connected to the battery prior to the installation of the instrument panel harness and the engine harness to the powertrain control module.
  1. Clip the harness to the engine harness bracket.

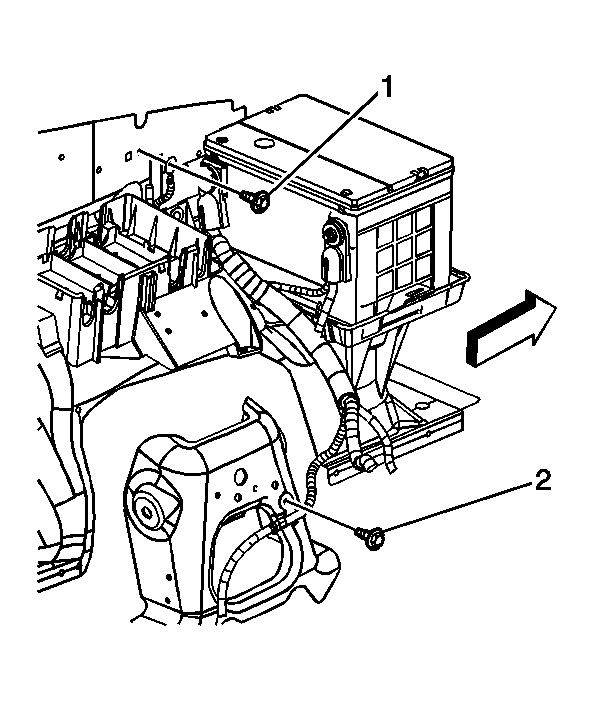

    2. Fig 1: Removing/Installing Harness Bolts
    GM754359Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt that secures the harness to the shock tower (2).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Install the bolt that secures the harness to the engine block.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  4. Install the bolt that secures the harness to the wheelhouse panel (1).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  5. Connect the negative battery cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
