Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to Console Replacement - Overhead (TrailBlazer, Envoy, Bravada)Console Replacement - Overhead (Envoy XUV) in Interior Trim.

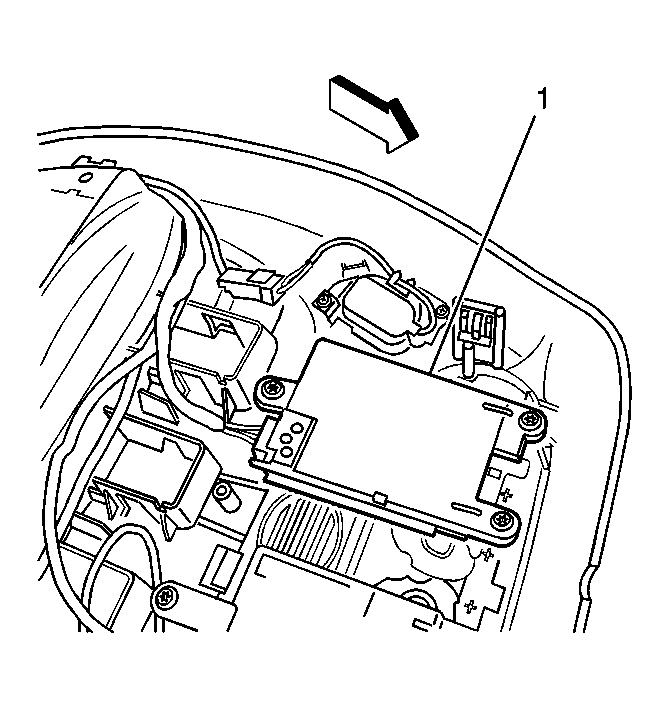

    2. Fig 1: Personal Message Recorder
    GM741631Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the personal message recorder (1).
  3. Remove the personal message recorder retaining screws.
  4. Remove the personal message recorder from the overhead console.
  5. Remove the button assembly from the overhead console.
