Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

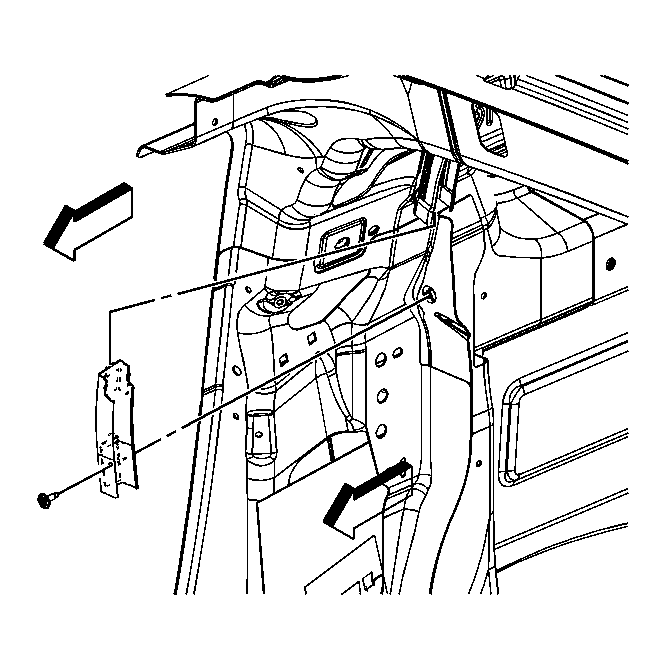

    Fig 1: Installing Midgate Window Channel Brackets
    GM1204238Courtesy of GENERAL MOTORS CORP.
  1. Install the midgate window channel brackets to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screw retaining the window channel brackets to the body.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

  3. Install the midgate weatherstrip. Refer to Weatherstrip Replacement - Midgate .
  4. Close the midgate.
