Power Roof Systems Connectors

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Cargo Release Switch Connector Terminals (XUV)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326801 2-Way F GT 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	GY	2537	Cargo Release Switch Signal
B	GY/BK	1796	Low Reference

Overhead Console Switch Assembly Connector Terminals (XUV)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12084944 16-Way F Micro-Pack 100 Series (BK)
Pin	Wire Color	Circuit No.	Function
A1	D-BU	1353	RAP Relay Control
A2	TN	5458	Midgate Overhead Console Switch Up Signal
A3	BN	100	Sunroof Switch Open Signal (CF5)
A4	BK	1350	Ground
A5	BN/WH	230	Instrument Panel Lamps Dimming Control
A6	D-BU	128	Sunroof Switch Low Reference (CF5)
A7	OG	110	Sunroof Switch Close Signal (CF5)
A8	WH	5457	Midgate Overhead Console Switch Down Signal
B1	L-BU	5436	Rear Moveable Roof Switch Close Signal
B2	YE	5439	Endgate Overhead Console Switch Up Signal
B3-B5	-	-	Not Used
B6	L-GN		Endgate Overhead Console Switch Up Signal
B7	D-BU	5435	Rear Moveable Roof Switch Open Signal
B8	GY/BK	1798	Low Reference

Power Roof Module Connector C1 Terminals (XUV)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		39-01-2180 18-Way F Molex Mini-Fit Jr. (NA)
Pin	Wire Color	Circuit No.	Function
1	PU	5435	Rear Moveable Roof Switch Open Signal
2	RD	5436	Rear Moveable Roof Switch Close Signal
3	L-GN	5439	Endgate Overhead Console Switch Up Signal
4	L-BU	5438	Endgate Overhead Console Switch Down Signal
5	GN	5437	Endgate Overhead Console Switch Express Down Signal
6-8	-	-	Not Used
9	BU	2537	Cargo Release Switch Signal
10	GY	3340	Battery Positive Voltage
11	BN	5124	Roof Obstruction Sensor Signal 2
12	BK	5034	Roof Obstruction Sensor Signal 1
13	OG	932	Class 2 Serial Data
14-16	-	-	Not Used
17	YE	133	Low Reference
18	WH	5033	12 Volt Reference

Power Roof Module Connector C2 Terminals (XUV)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	PU	127	Roof Motor Open Control
B	BU	129	Roof Motor Close Control
C	GN	2640	Battery Positive Voltage
D	BK	1150	Ground

Power Roof Motor Connector Terminals (XUV)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5620-40 8-Way F Hybrid Unsealed Series (GY)
Pin	Wire Color	Circuit No.	Function
1	BU	129	Roof Motor Close Control
2-3	-	-	Not Used
4	PU	127	Roof Motor Open Control
5	BK	5034	Roof Obstruction Sensor Signal 1
6	YE	133	Low Reference
7	BN	5124	Roof Obstruction Sensor Signal 2
8	WH	5033	12 Volt Reference

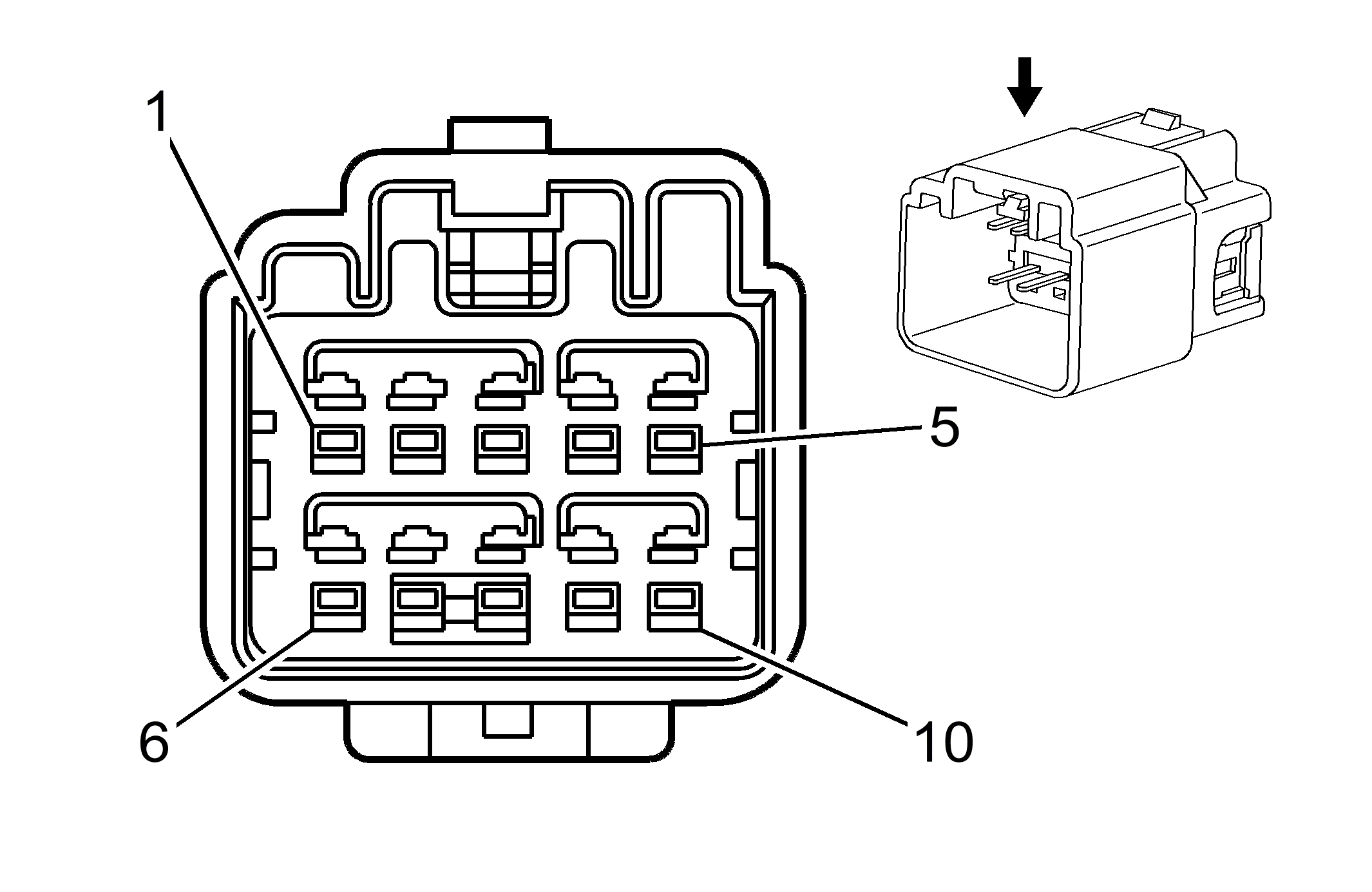

Sunroof Motor Connector Terminals (CF5)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5909-40 10-Way F
Pin	Wire Color	Circuit No.	Function
1	BK/PU	1150	Ground
2	BN	128	Sunroof Switch Low Reference
3	PU	1353	RAP Fuse Supply Voltage
4	-	-	Not Used
5	WH	100	Sunroof Switch Open Signal
6	YE/RD	1840	Battery Positive Voltage
7-9	-	-	Not Used
10	L-BU	110	Sunroof Switch Close Signal

Sunroof Switch Connector Terminals (CF5 Except XUV)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12191825 8-Way F Metri-Pack 280 Series (BN)
Pin	Wire Color	Circuit No.	Function
A	D-BU	128	Sunroof Switch Low Reference
B	BN/WH	230	Instrument Panel Lamps Dimming Control
C	BK	1350	Ground
D-E	-	-	Not Used
F	OG	110	Sunroof Switch Close Signal
G	BN	100	Sunroof Switch Open Signal
H	-	-	Not Used
