Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Condenser
    GM735918Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If replacing the condenser, add the refrigerant oil to the condenser. Refer to Refrigerant System Capacities  for the capacity information.
  1. Install the condenser to the radiator.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the retaining screws to the condenser.

    Tighten:  Tighten the screws to 5 N.m (44 lb in).

  3. Install the hood latch. Refer to Hood Replacement in Body Front End.
  4. Connect the evaporator tube (4) to the condenser (3).
  5. Install the retaining nut to the evaporator tube (4) at the condenser (3).

    Tighten:  Tighten the nut to 28 N.m (21 lb ft).

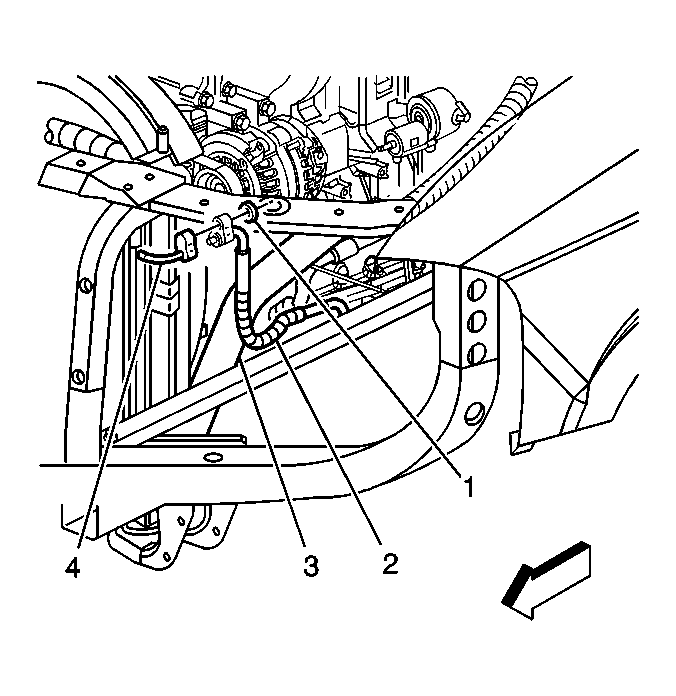

    6. Fig 2: Compressor Discharge Hose From Condenser
    GM735782Courtesy of GENERAL MOTORS CORP.
  6. Connect the compressor discharge hose (2) to the condenser (4).
  7. Install the retaining nut (1) to the compressor discharge hose (2) at the condenser (4).

    Tighten:  Tighten the nut to 28 N.m (21 lb ft).

  8. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  9. Leak test the fittings of the components using J 39400-A  . See Special Tools and Equipment .
