Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the dimmer switch to the I/P cluster trim plate.
    2. Fig 1: Dimmer Switch (I/P)
    GM928662Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the dimmer switch screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

    3. Fig 2: Dimmer Switch Screws (I/P)
    GM928608Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the dimmer switch.

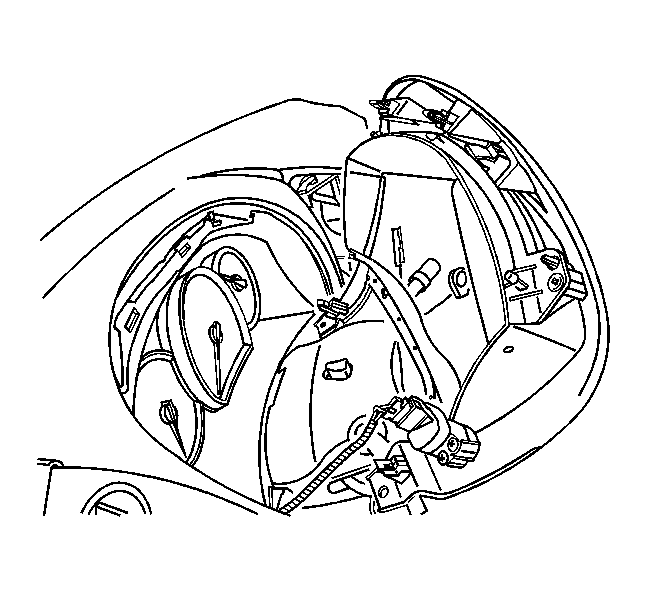

    4. Fig 3: Electrical Connector & Dimmer Switch
    GM928956Courtesy of GENERAL MOTORS CORP.
  4. Align the locating pins and the retainers on the I/P cluster trim plate to the openings in the I/P.
  5. Push in the trim plate at each of the retainer locations. Completely engage the retainers.
  6. Return the steering wheel to the original position.
  7. Install the steering column filler. Refer to Steering Column Filler Replacement in Instrument Panel, Gages, and Console.
  8. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages, and Console.
