Section 32 (Disc Brakes): Overhaul

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use illustrations to aid in overhaul. See Fig 1-Fig 3 .

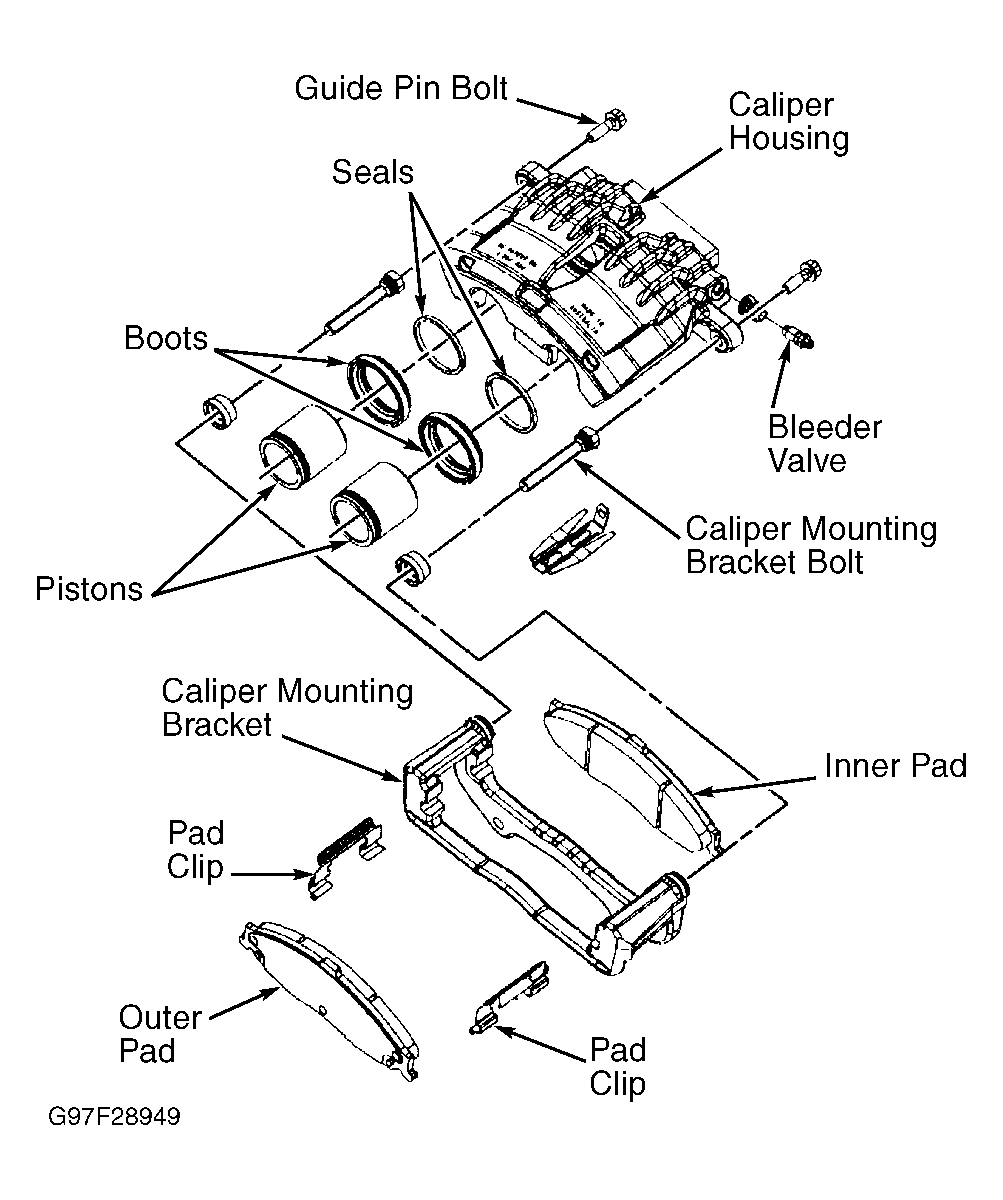

Fig 1: Exploded View Of Front Brake Caliper

Courtesy of GENERAL MOTORS CORP.

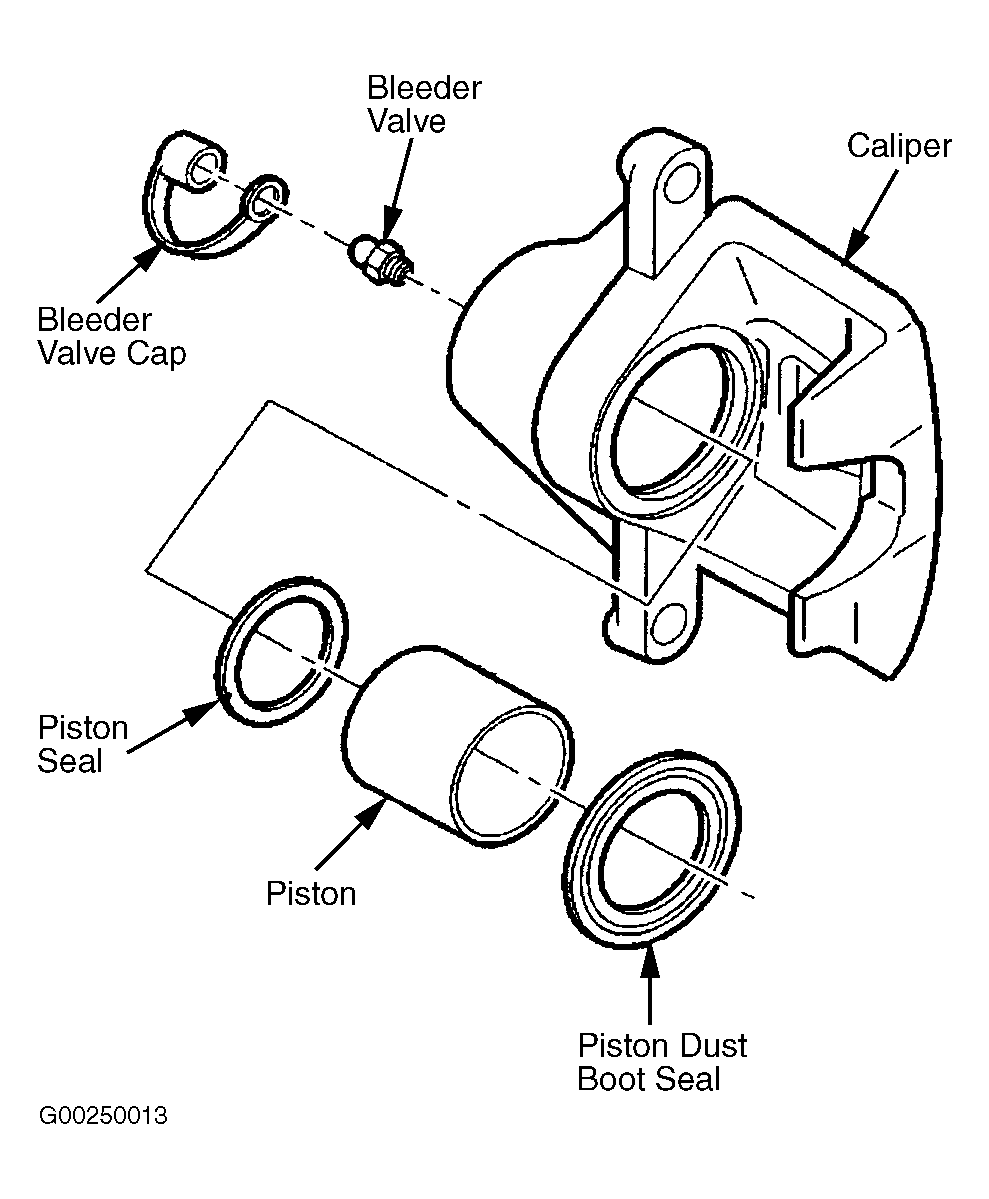

Fig 2: Exploded View Of Rear Brake Caliper

Courtesy of GENERAL MOTORS CORP.

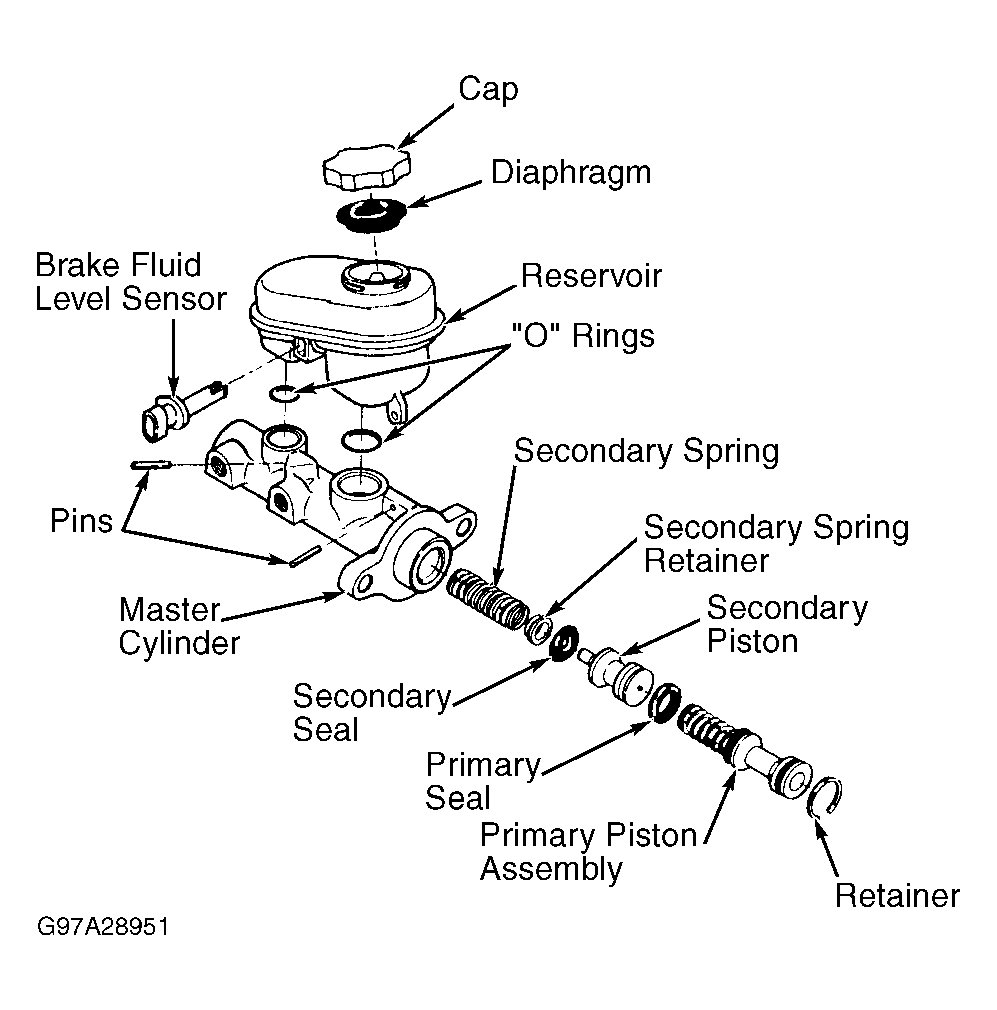

Fig 3: Exploded View Of Master Cylinder

Courtesy of GENERAL MOTORS CORP.
