Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cockpit Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror-Driver
2	Fog Lamp/Rear Compartment Lid Release Switch (Domestic), Fog Lamp Switch (Export)
3	Dimmer Switch
4	Dimmer/Head Up Display (HUD) Switch
5	Instrument Panel Cluster (IPC)
6	Vanity Mirror Lamp-Left
7	Driver Information Center (DIC) Switch-Right
8	Hazard Switch
9	Radio
10	HVAC Control Module
11	Vanity Mirror Lamp-Right
12	Door Switch-Passenger
13	Outside Rearview Mirror-Passenger
14	Footwell Courtesy Lamp-Right
15	Fuel Door Lock Release Switch (Domestic), Rear Compartment Lid/Fuel Door Lock Release Switch (Export)
16	Traction/Suspension Control Switch
17	Auxiliary Power Outlet Connector
18	Cigar Lighter
19	Horn Switch
20	Seat Control Module (SCM)-Driver (W/Memory Seats), Seat Relay Center-Driver (W/O Memory Seats)
21	Seat Adjuster Switch-Driver
22	Footwell Courtesy Lamp-Left
23	Door Switch-Driver

Fig 2: Rear Of Vehicle Component View - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid
2	Electronic Suspension Control (ESC) Module
3	Remote Control Door Lock Receiver (RCDLR)

Fig 3: Folding Top Components Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Actuator
2	Folding Top Ajar Indicator Switch
3	Folding Top Lid Latch
4	Folding Top Release Switch

Fig 4: Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Suspension Control (ESC) Module
2	Rear Compartment Courtesy Lamp - Left
3	Remote Playback Device - CD Changer
4	Rear Compartment Courtesy Lamp - Right
5	Rear Compartment Lid Ajar Switch
6	Rear Compartment Lid Latch (Hardtop/Convertible)

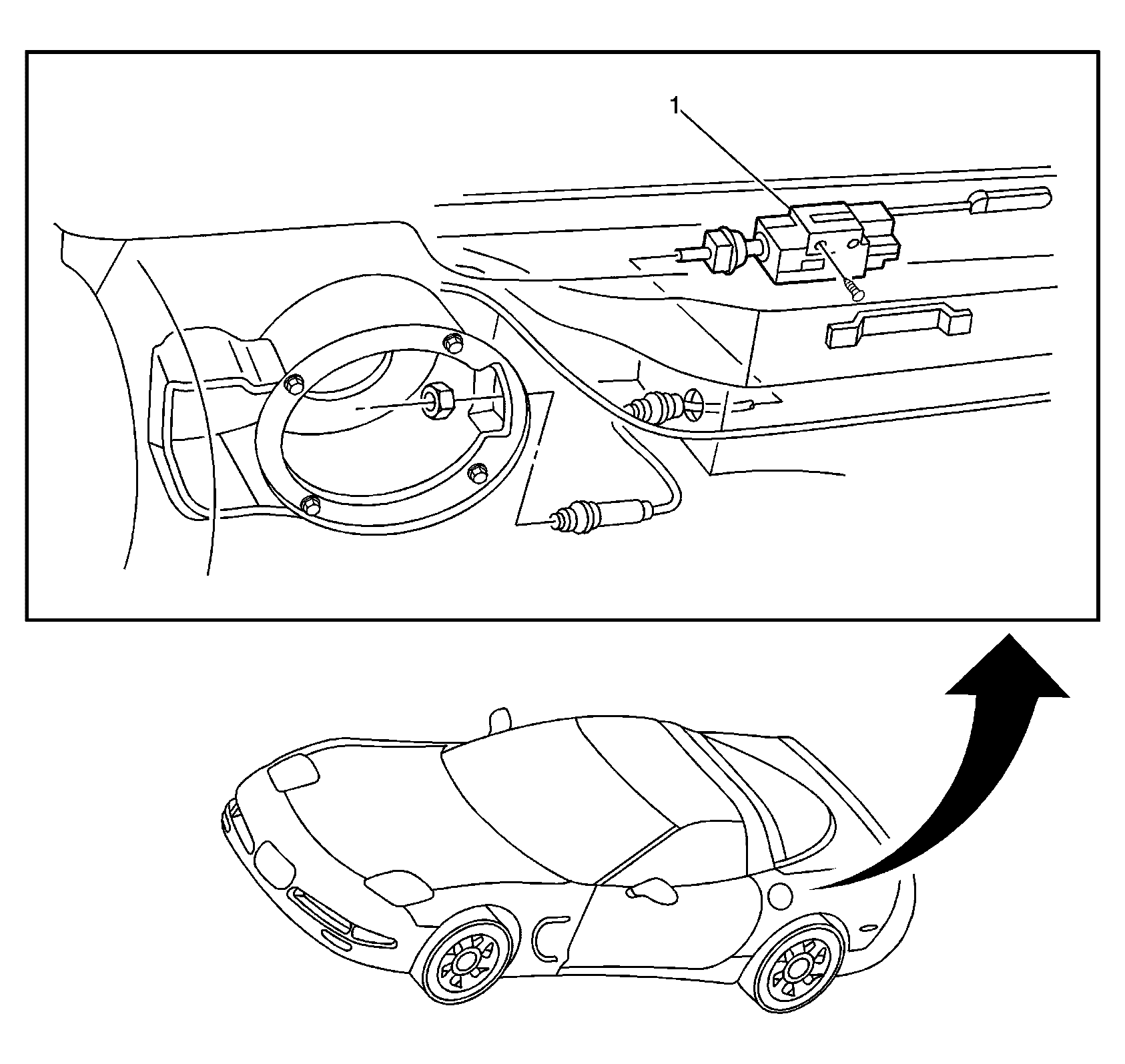

Fig 5: LR Of The Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Door Lock Actuator

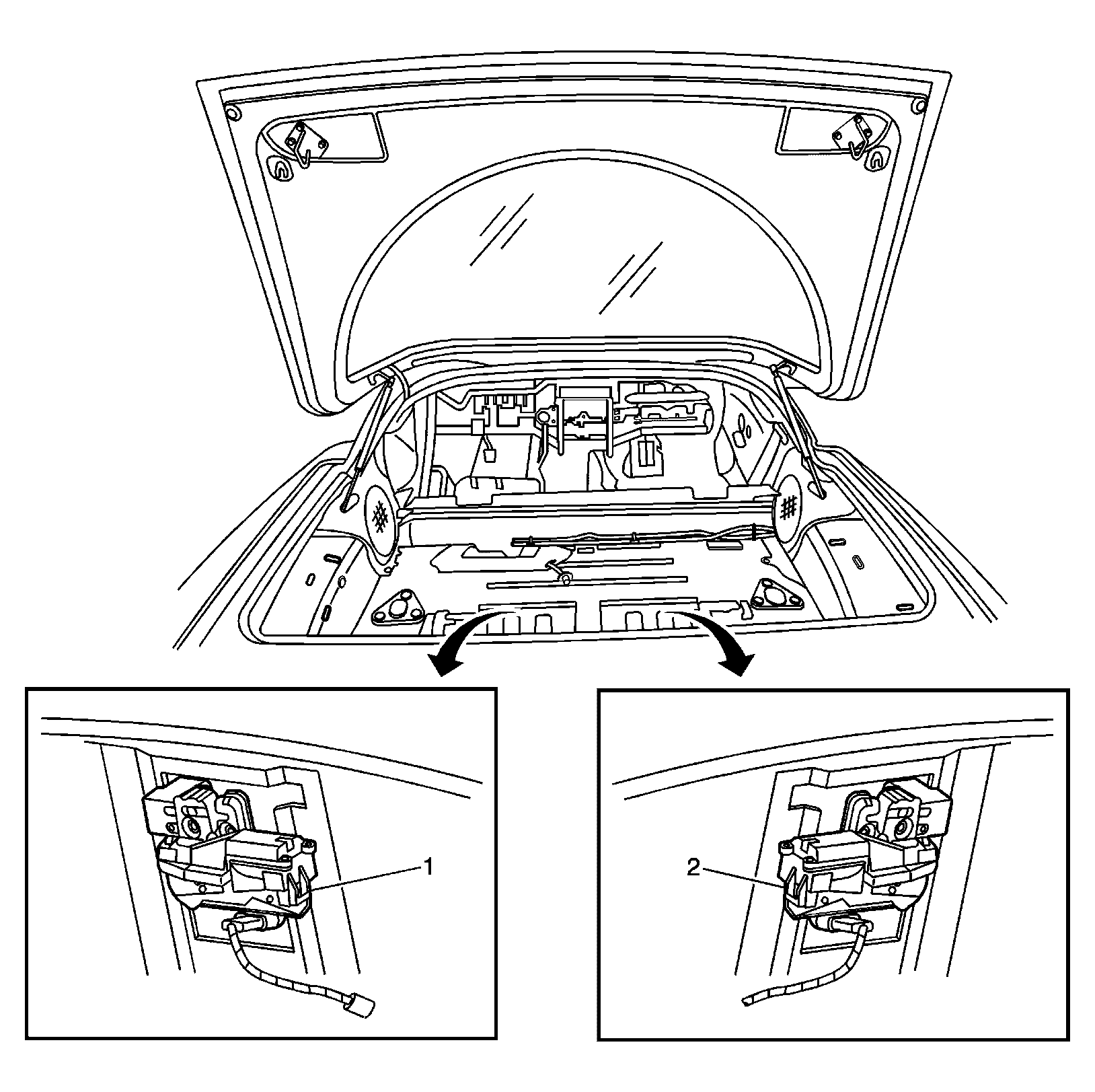

Fig 6: Rear Compartment Component View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch - Left
2	Rear Compartment Lid Latch - Right
