Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Important: The ambient air temperature sensor must be orientated so that the sensor probe end is inboard and the electrical connector is outboard.

Install the ambient air temperature sensor to the lower radiator support.
Install the push-in retainer to secure the ambient air temperature sensor to the radiator support.

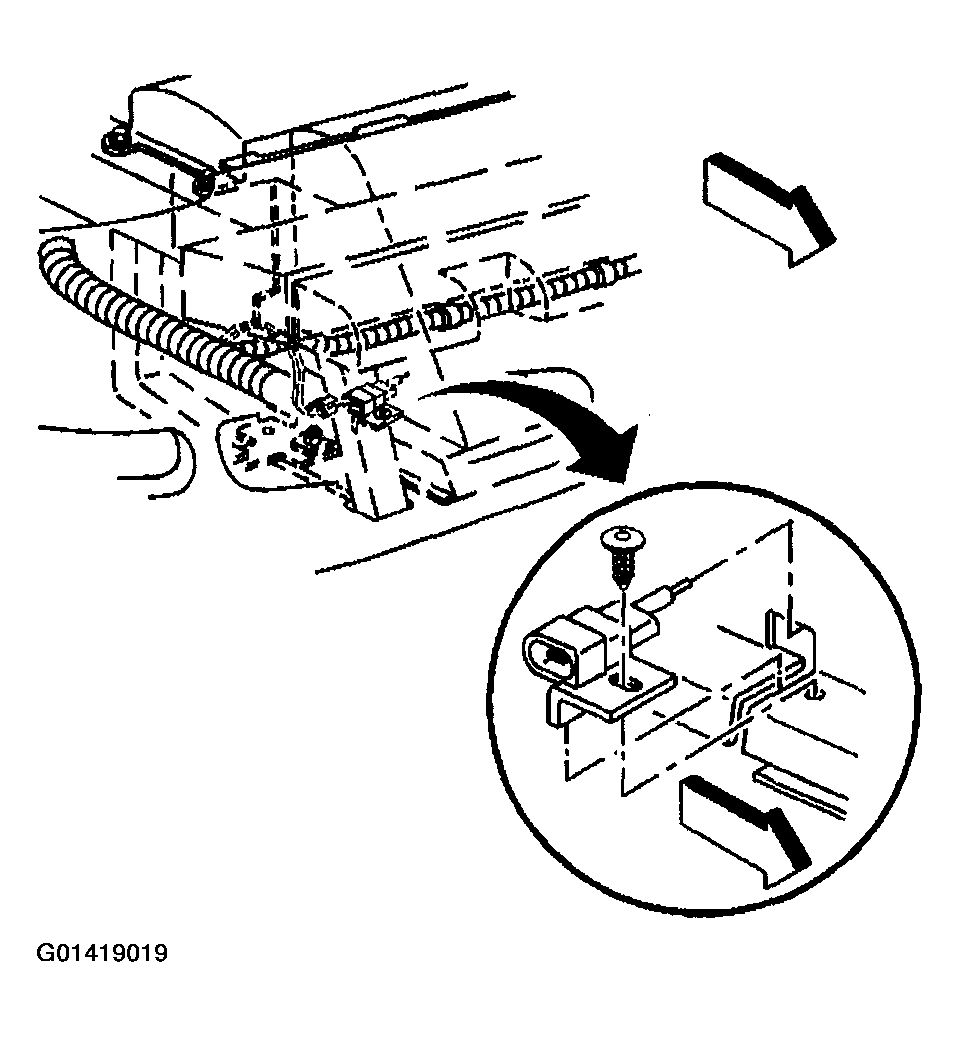

Fig 1: Installing Ambient Air Temperature Sensor To Radiator Support
Courtesy of GENERAL MOTORS CORP.
Connect the ambient air temperature sensor electrical connector.

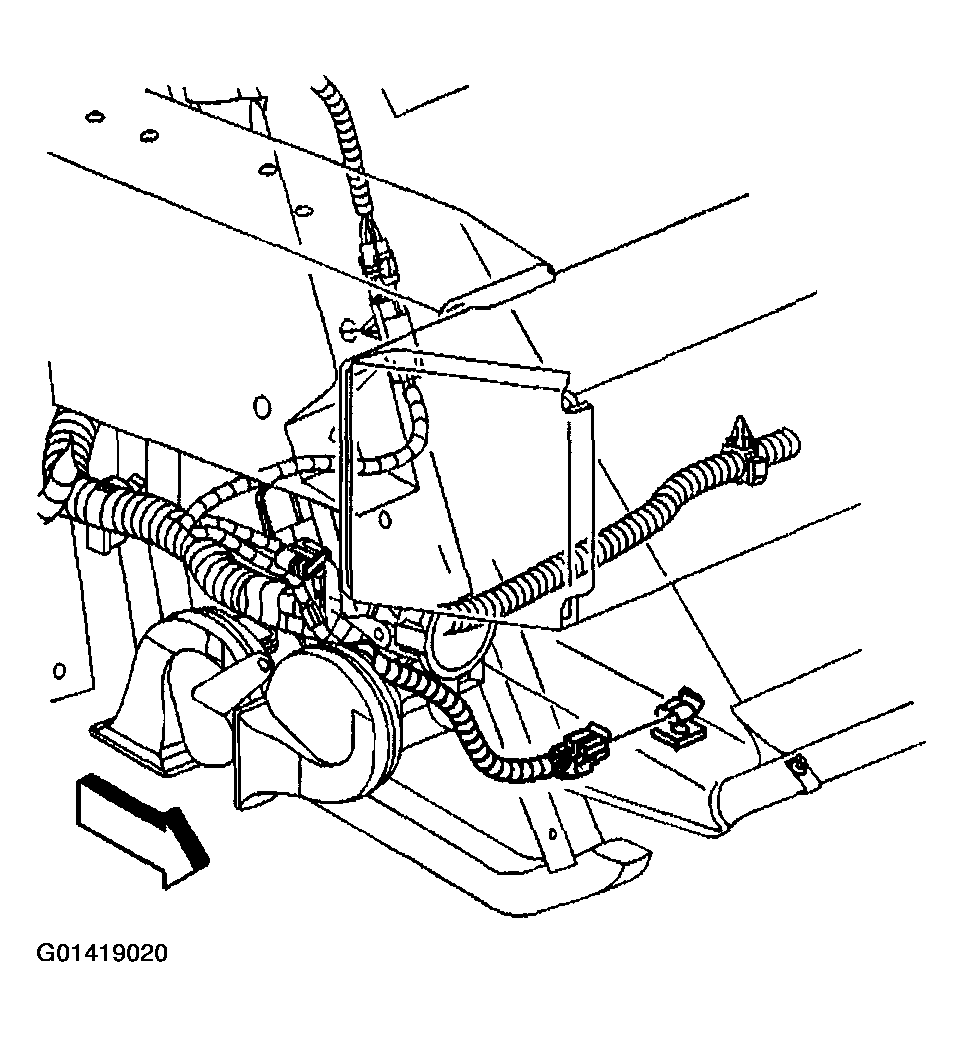

Fig 2: Connecting Ambient Air Temperature Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
