Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the heat shield with the rearward edge between the retention fingers.
Position the shield onto the ground stud.
Install the push-in retainer attaching the heat shield to the wheelhouse panel.

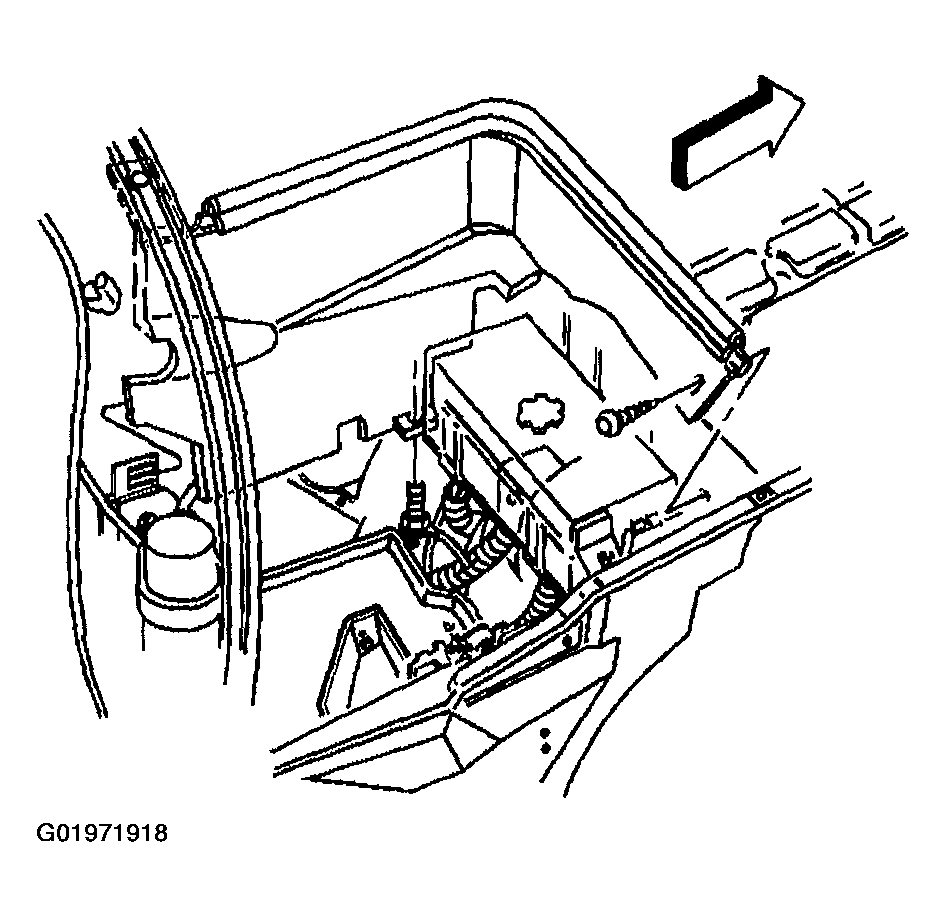

Fig 1: Installing Battery Heat Shield To Wheelhouse Panel
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainer attaching the air inlet screen and the battery heat shield to the plenum panel.

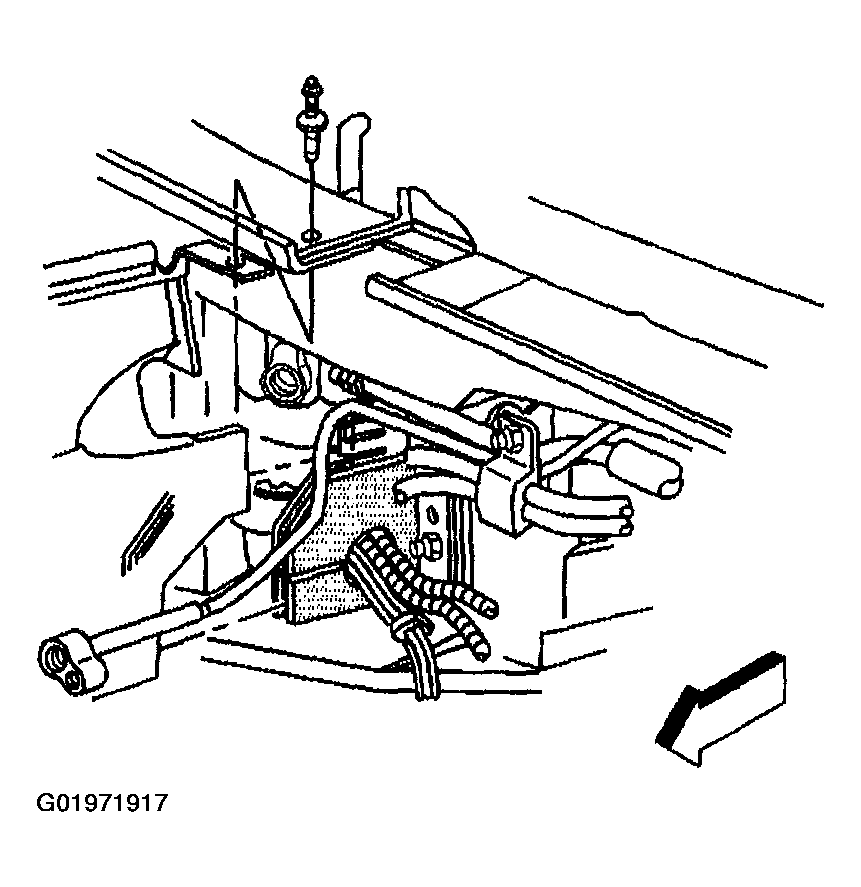

Fig 2: Installing Battery Heat Shield To Plenum Panel
Courtesy of GENERAL MOTORS CORP.
