Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 12 N.m (106 lb in).

  3. Install the battery. Refer to BATTERY REPLACEMENT .

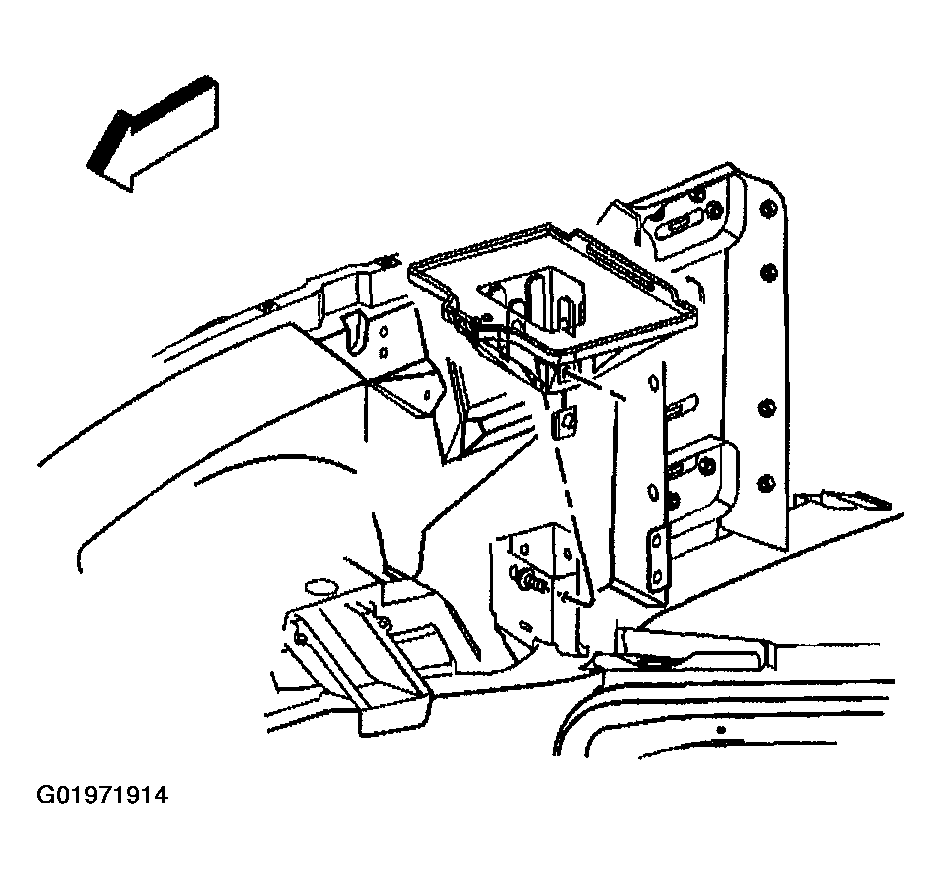

    Fig 1: Battery Tray
    G01971914Courtesy of GENERAL MOTORS CORP.
