Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backup lamp sockets to the backup lamp assembly.

    Rotate the sockets clockwise to engage the locking tabs.

  2. Install the backup lamp assembly into position on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the backup lamp assembly retaining screws.

    Tighten

    Tighten the backup lamp and rear license assembly retaining screws to 2 N.m (18 lb in).

  4. Install the rear license plate.
  5. Install the rear license frame.

    Align the locking tabs, then press engage.

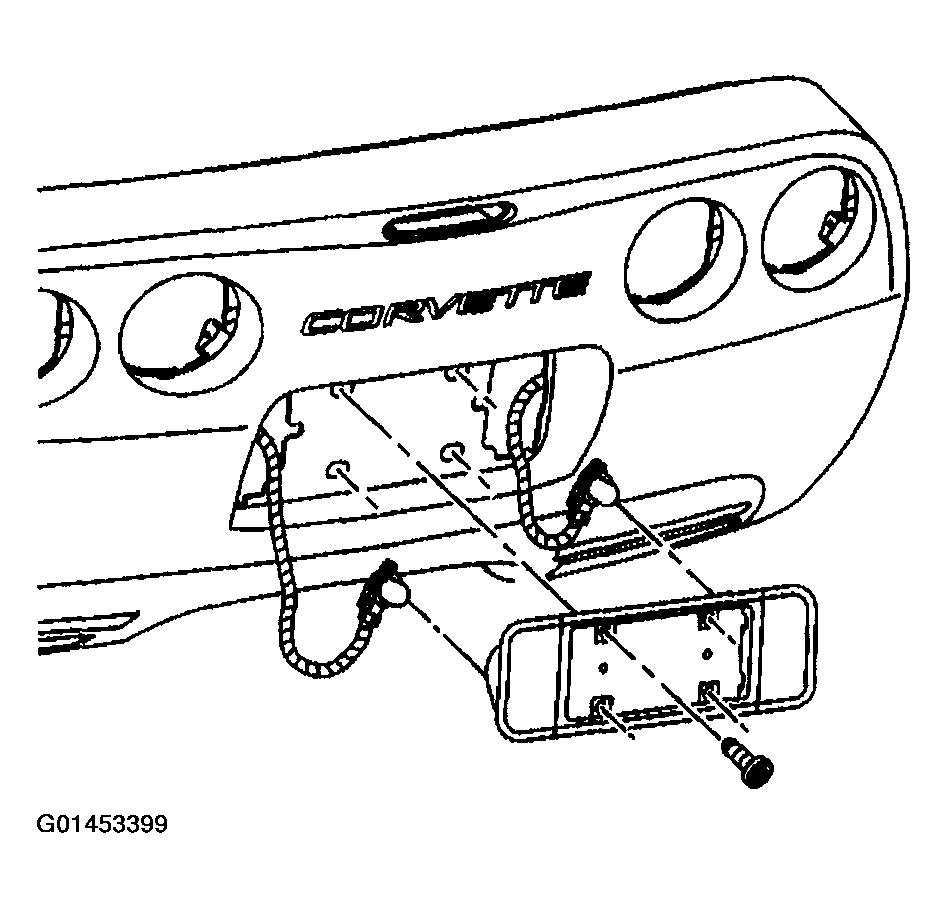

    Fig 1: Installing Backup Lamp Assembly To Vehicle
    G01453399Courtesy of GENERAL MOTORS CORP.
