Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the cargo lamp.

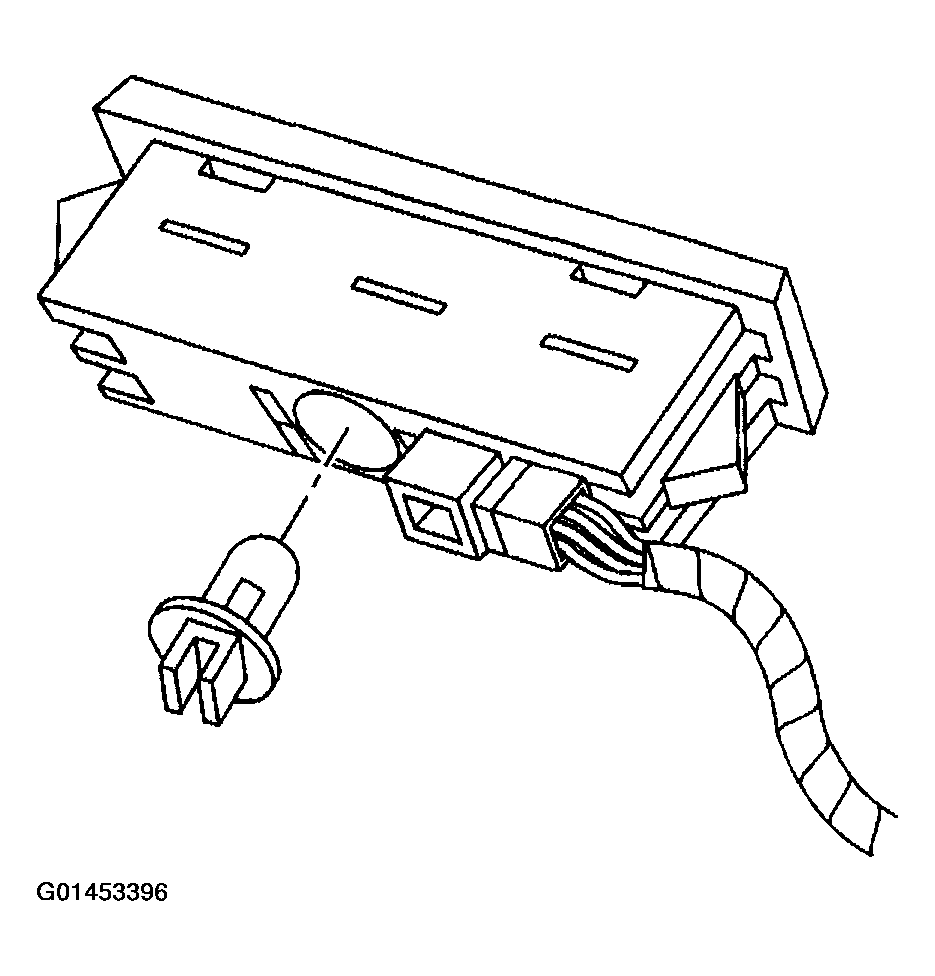

Fig 1: Installing Bulb From Cargo Lamp
Courtesy of GENERAL MOTORS CORP.
Install the cargo lamp assembly to the cargo area corner carpet section.
Snap the lamp into the carpet panel.
Close the rear lift window (coupe), or close the trunk lid.

Fig 2: Cargo Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
