Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) lower trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages, and Console.
  2. Disconnect the stop lamp switch connectors.

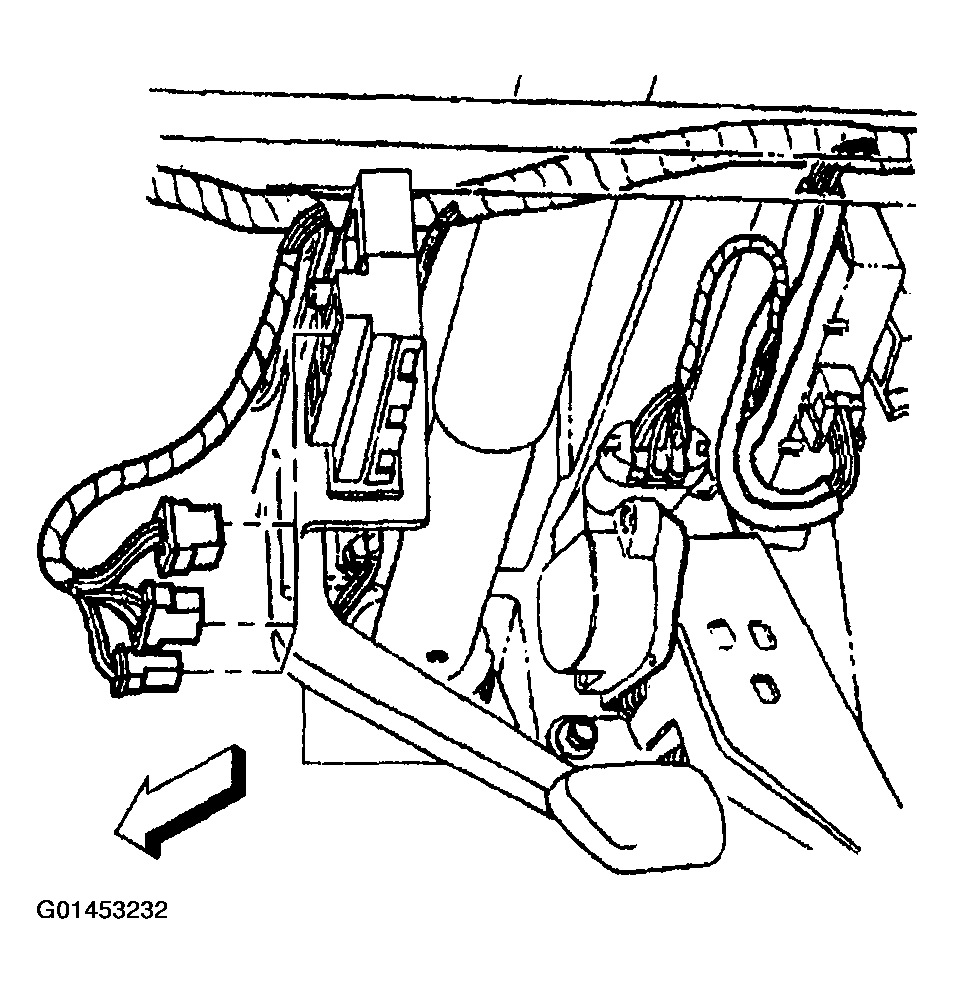

    Fig 1: Disconnecting Stop Lamp Switch Connectors
    G01453232Courtesy of GENERAL MOTORS CORP.
  3. Remove the stop lamp switch.

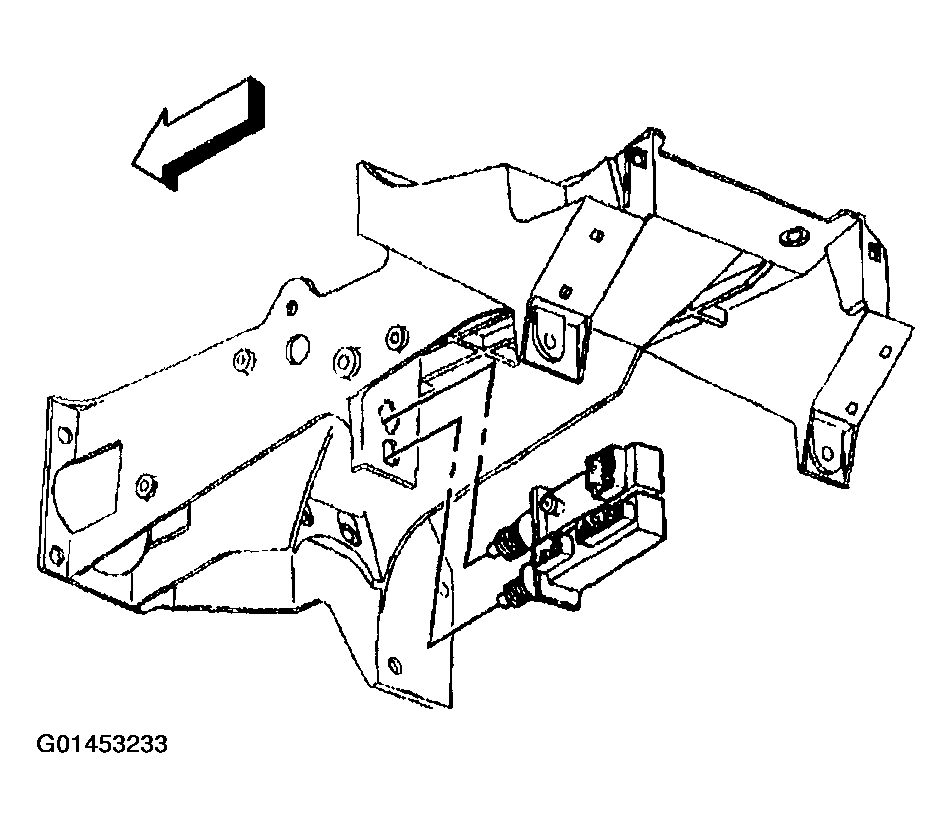

    Fig 2: Stop Lamp Switch
    G01453233Courtesy of GENERAL MOTORS CORP.
