Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the tail lamp socket, if replacing the bulb.
Install the socket to the tail lamp assembly.
Position the tail lamp assembly to the rear fascia.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws retaining the tail lamp to the rear fascia.
Tighten

Tighten the tail lamp retaining screws to 2 N.m (18 lb in).

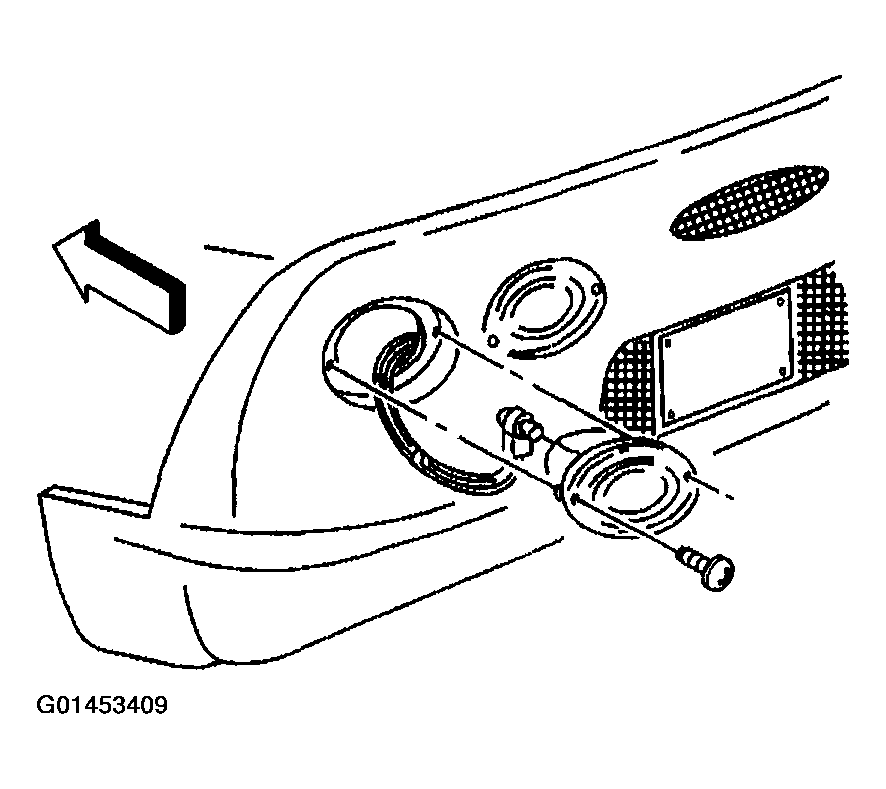

Fig 1: Installing Socket To Tail Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
