Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor shift control. Refer to FLOOR SHIFT CONTROL REPLACEMENT in Automatic Transmission - 4L60-E.

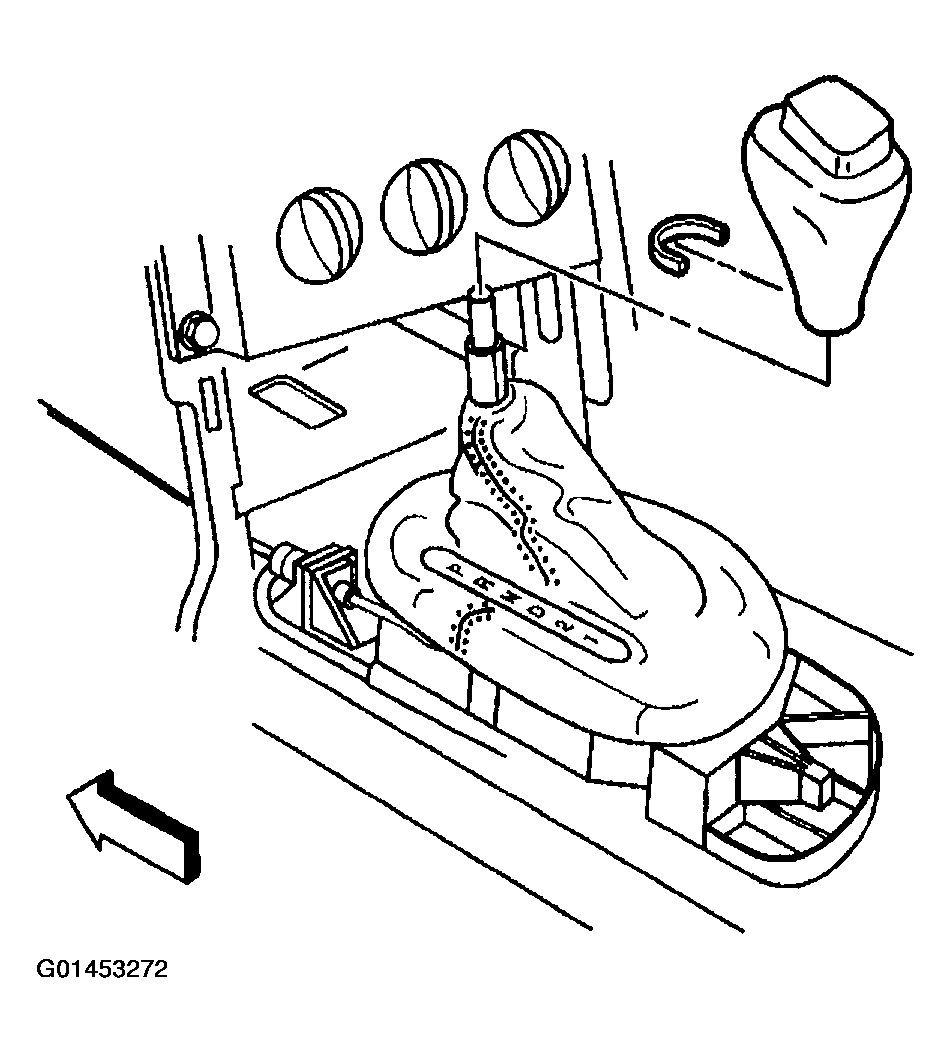

Fig 1: Floor Shift Control
Courtesy of GENERAL MOTORS CORP.
Remove the floor shift control boot assembly. Refer to FLOOR SHIFT CONTROL BOOT REPLACEMENT in Automatic Transmission - 4L60-E.
Remove the lamp socket.
Remove the bulb from the lamp socket.

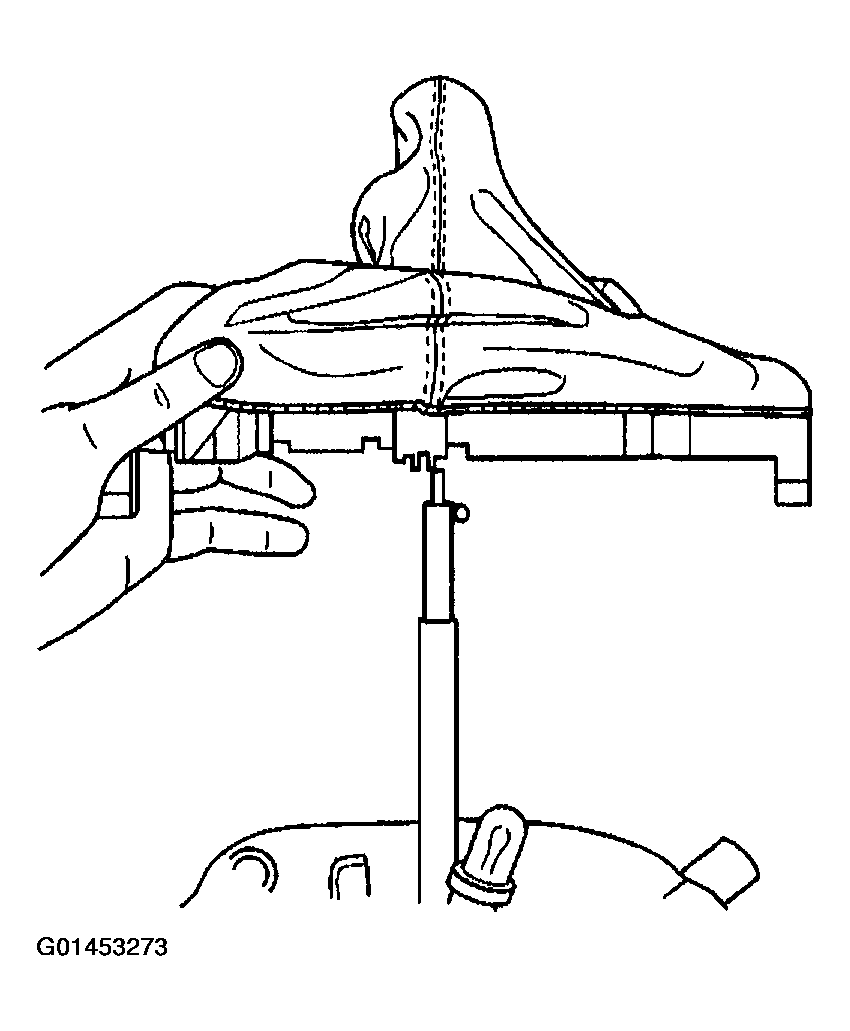

Fig 2: Floor Shift Control Boot Assembly
Courtesy of GENERAL MOTORS CORP.
