Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna buffer into position on the roof bow.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the antenna buffer retaining screws.

    Tighten

    Tighten the antenna buffer retaining screws to 1.8 N.m (16 lb in).

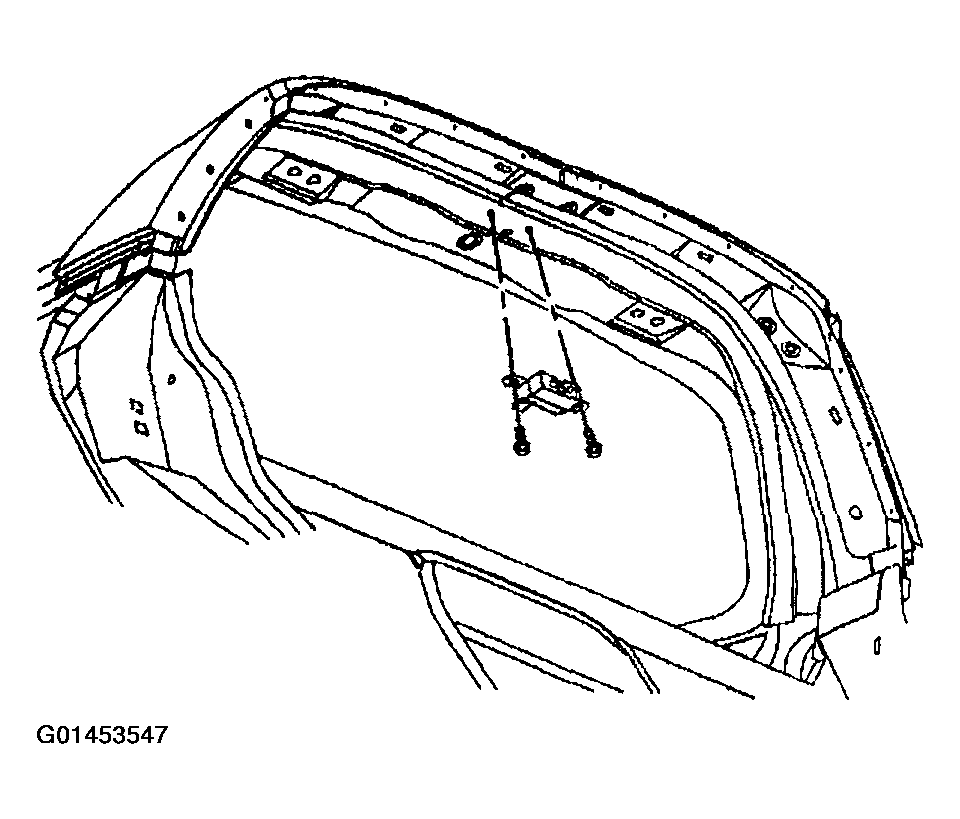

    Fig 1: Antenna Buffer
    G01453547Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear lift window antenna cable connector and the rear lift window antenna extension cable to the antenna buffer.
  4. Install the roof bow interior trim panel; use care to not damage the rear antenna cable. Refer to TRIM PANEL REPLACEMENT - REAR ROOF BOW in Interior Trim.
    Fig 2: Connecting Rear Lift Window Antenna Cable Connector
    G01453548Courtesy of GENERAL MOTORS CORP.
