Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.
  2. Remove the cover from the I/P electrical center.
  3. Remove the RDO/CD MiniFuse® #5 from the I/P electrical center.
  4. Remove the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gauges and Console.
  5. Remove the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY) in Instrument Panel, Gauges and Console.
  6. Remove the screws retaining the radio control to the I/P center support bracket.
  7. Begin to remove the radio control from the center support bracket enough to access the connectors at rear of the radio control.
  8. Disconnect the electrical/audio and coaxial cable connectors from the radio control.

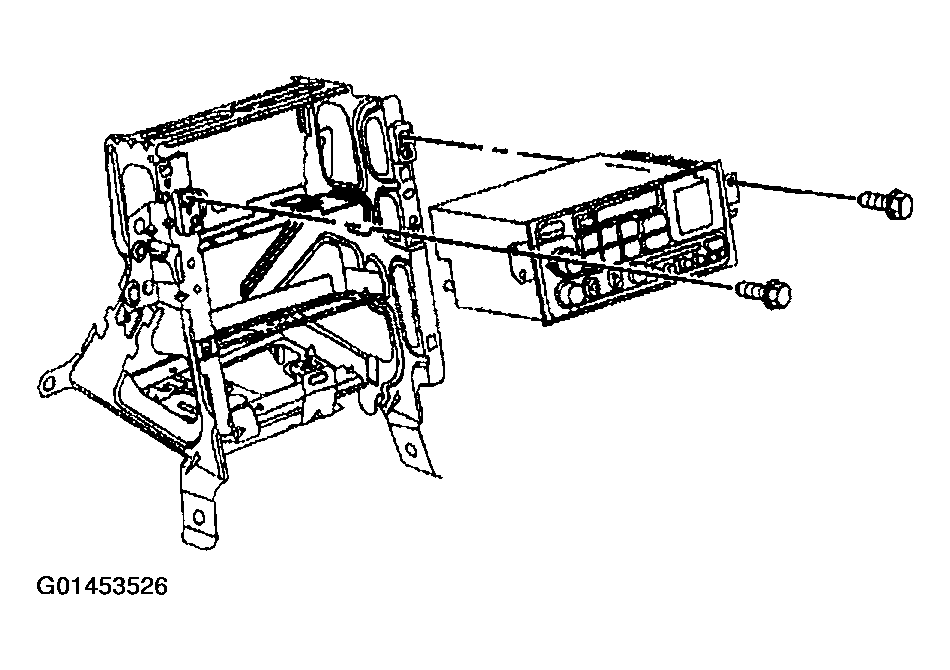

    Fig 1: Removing Screws Retaining Radio Control To I/P Center Support Bracket
    G01453526Courtesy of GENERAL MOTORS CORP.

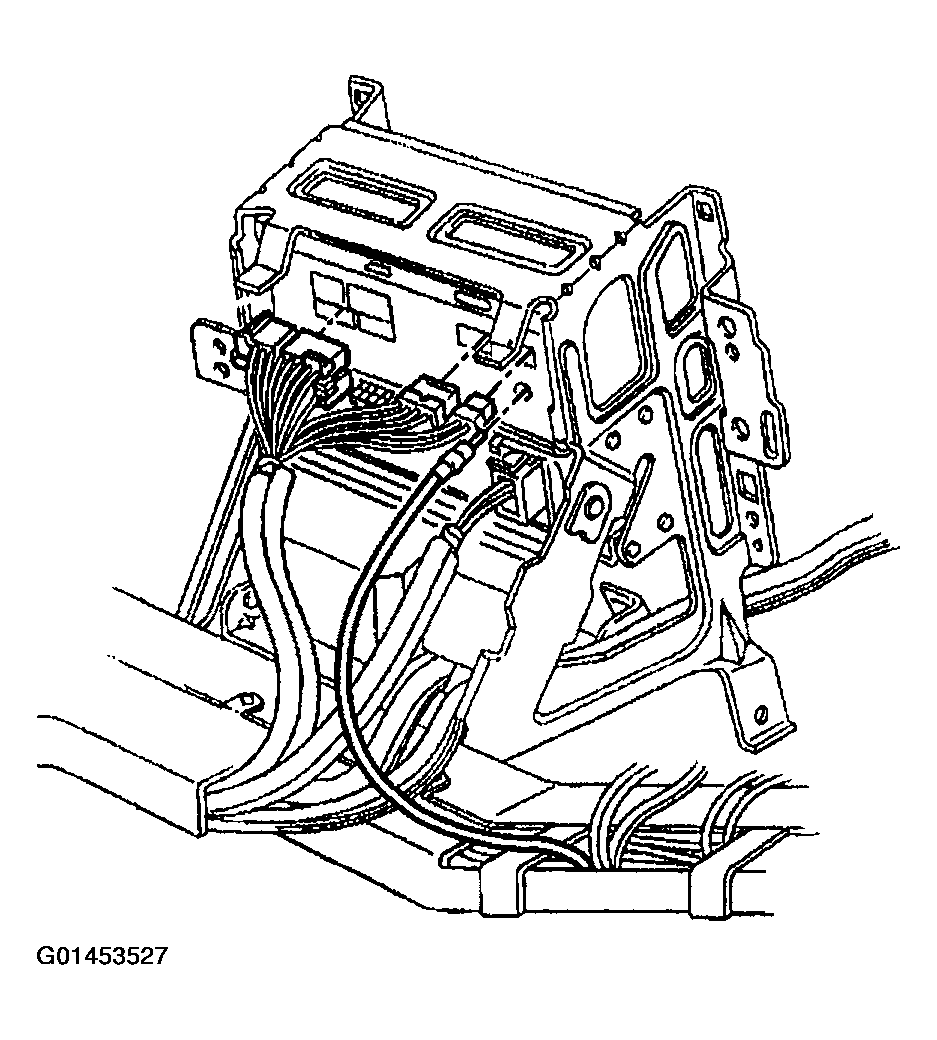

    Fig 2: Disconnecting Electrical/Audio & Coaxial Cable Connectors From Radio Control
    G01453527Courtesy of GENERAL MOTORS CORP.
  9. Remove the radio control.

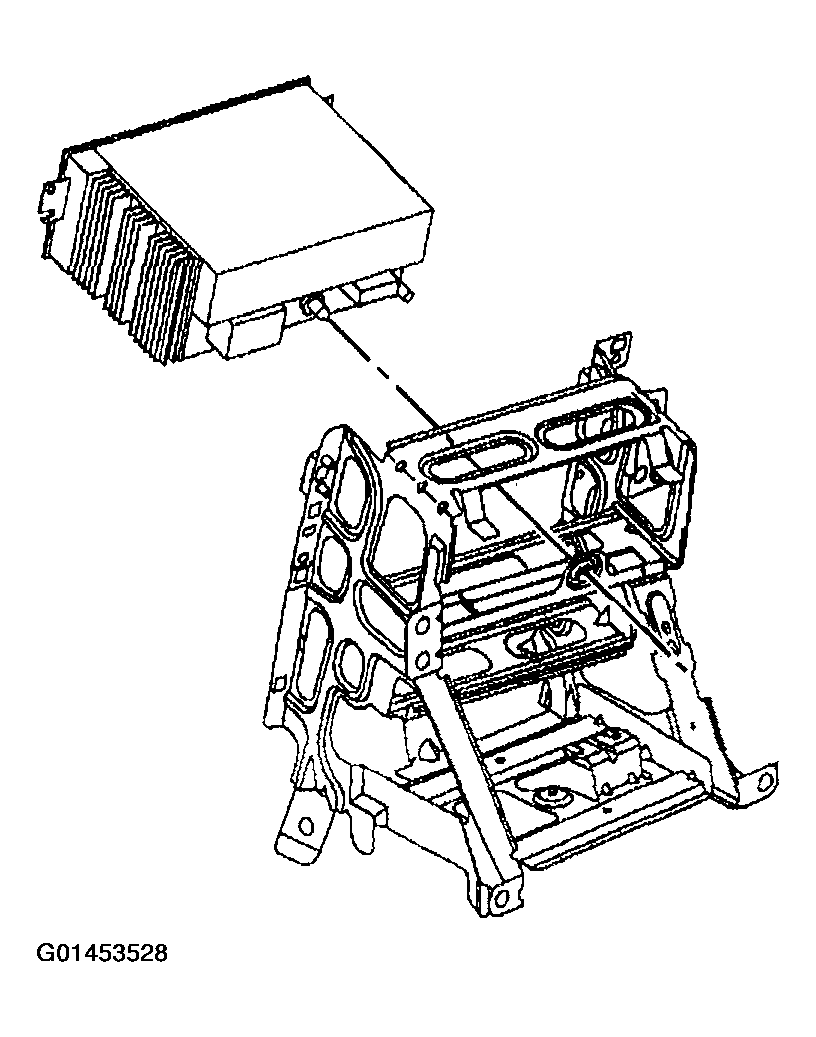

    Fig 3: Radio Control
    G01453528Courtesy of GENERAL MOTORS CORP.
