Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR in Doors.
  2. Disconnect the electrical/audio connector from the front door radio speaker assembly.

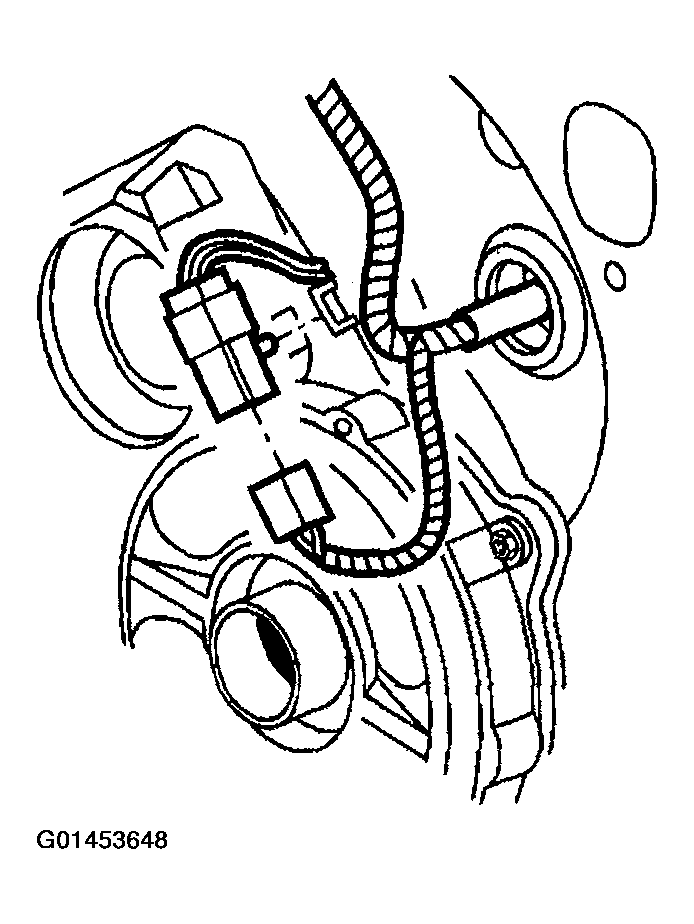

    Fig 1: Disconnecting Electrical/Audio Connector From Front Door Radio Speaker Assembly
    G01453648Courtesy of GENERAL MOTORS CORP.

    Important:  The speaker assembly is only held in place by retaining screws. Be sure to support the speaker assembly upon removal.

  3. Remove the screws retaining the front door speaker assembly to the door.
  4. Remove the front door speaker assembly.

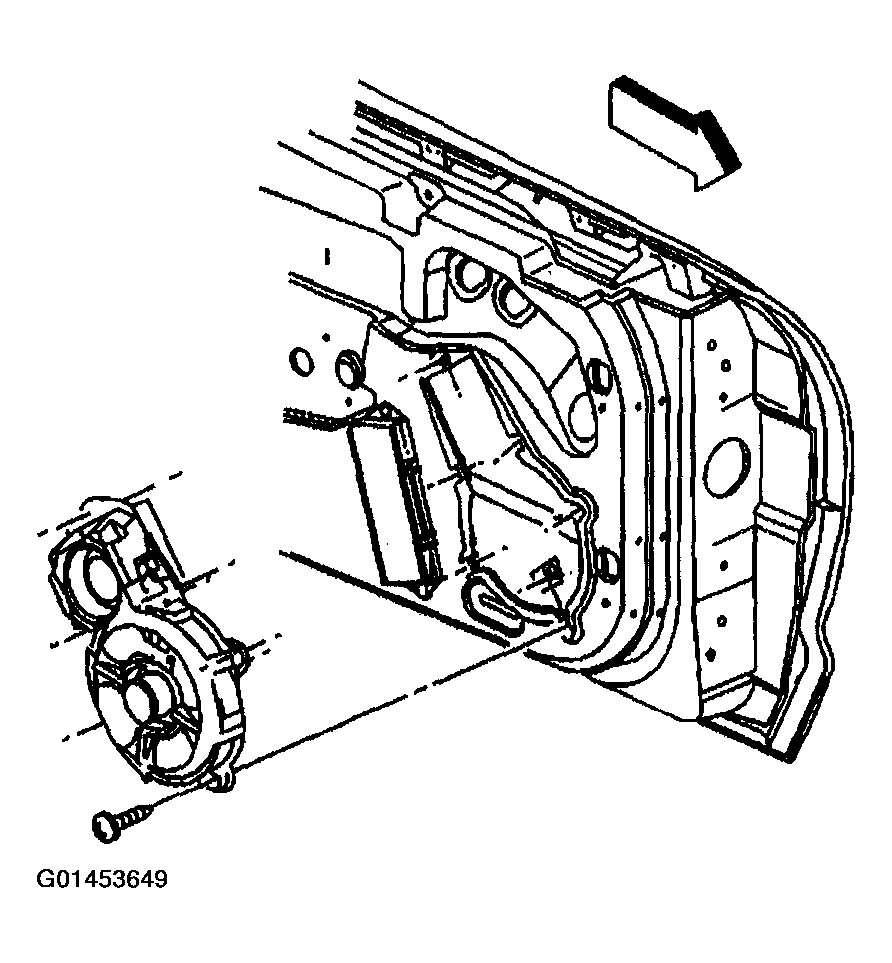

    Fig 2: Front Door Speaker Assembly
    G01453649Courtesy of GENERAL MOTORS CORP.
