Cruise Release Switch Adjustment
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left I/P lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gauges and Console.
- Ensure that the cruise control release switch is fully seated to the cruise control release switch bracket.
Push the switch down toward the switch bracket; audible clicks will be heard while pushing the switch.

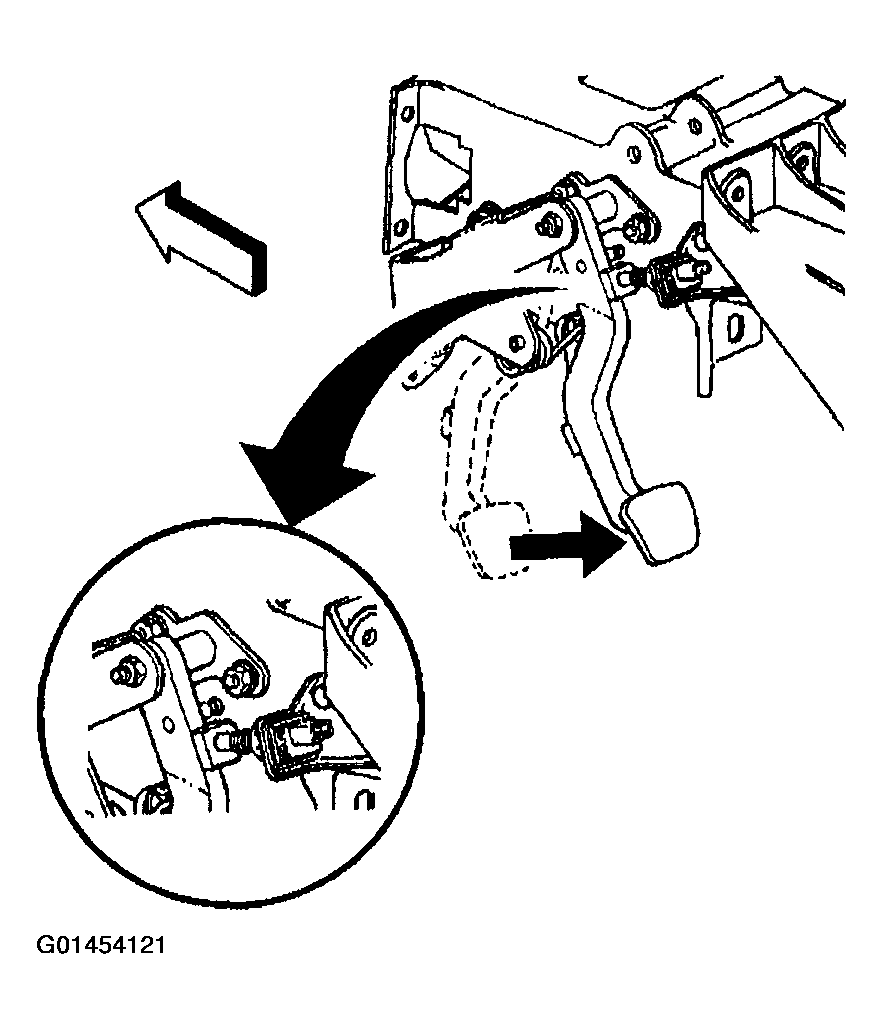

- Adjust the cruise control release switch.
Grasp the clutch pedal and pull fully rearward against the pedal stop; audible clicks may be heard as the switch moves into the adjusted position.
- Install the left I/P lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gauges and Console.
