Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the aid of a helper position the hood with hinges relative to the marks on the frame rails.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts attaching the hinge to the frame rail.

    Tighten

    Tighten the hinge to frame rail nuts to 25 N.m (18 lb ft).

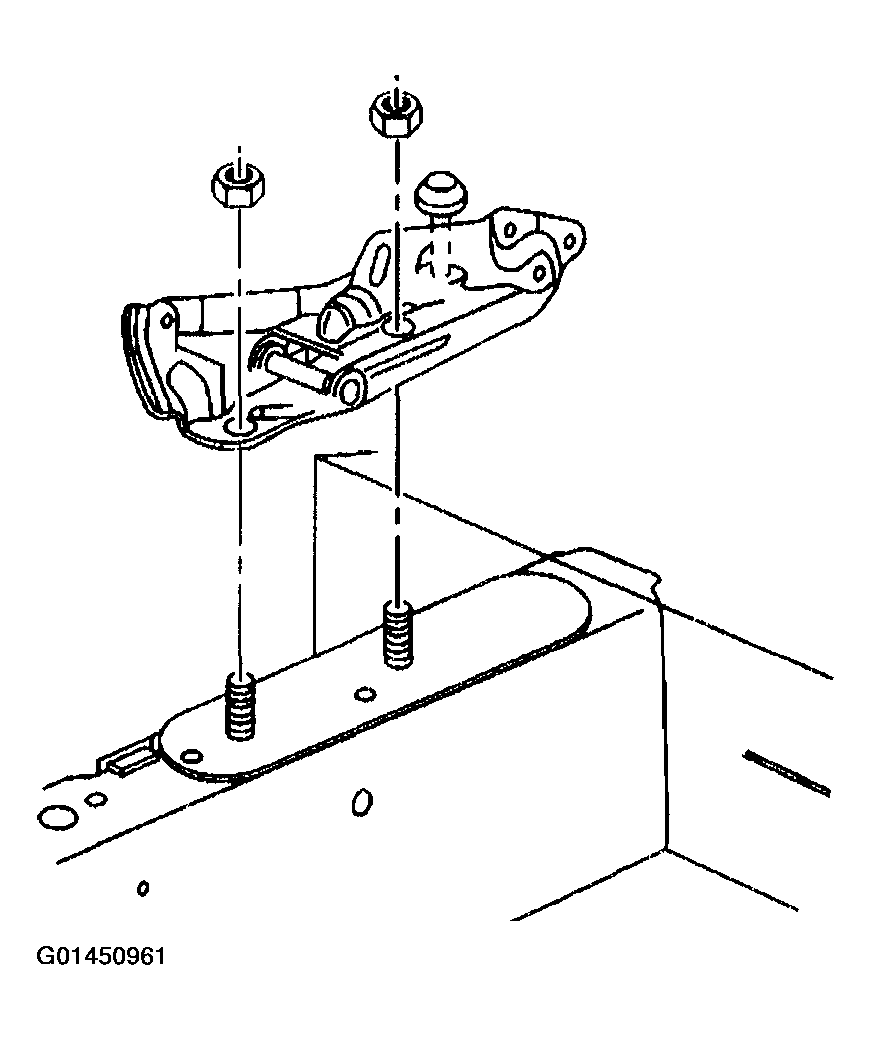

    Fig 1: Installing Nuts Attaching Hinge To Frame Rail
    G01450961Courtesy of GENERAL MOTORS CORP.
  3. Install the struts.

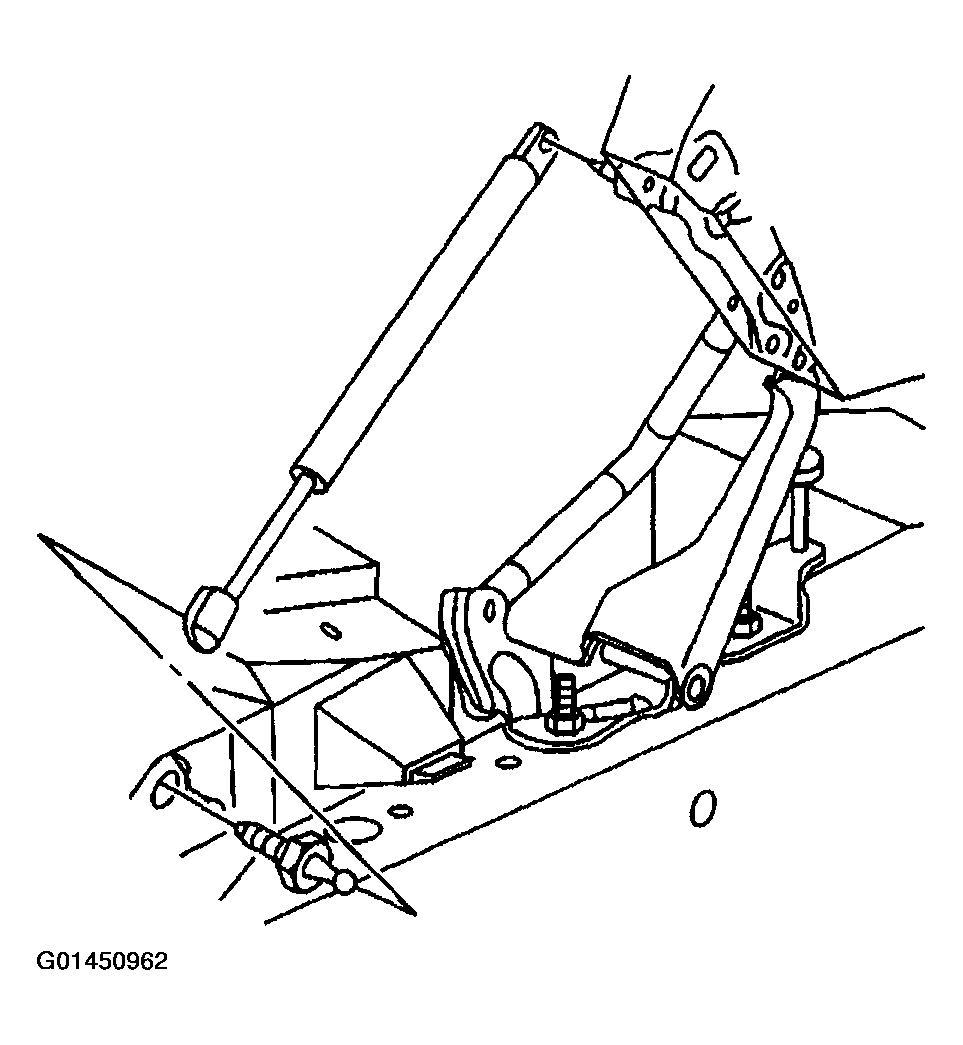

    Fig 2: Struts
    G01450962Courtesy of GENERAL MOTORS CORP.
  4. Connect the under hood light electrical connection.
  5. Adjust the hood fit as necessary.

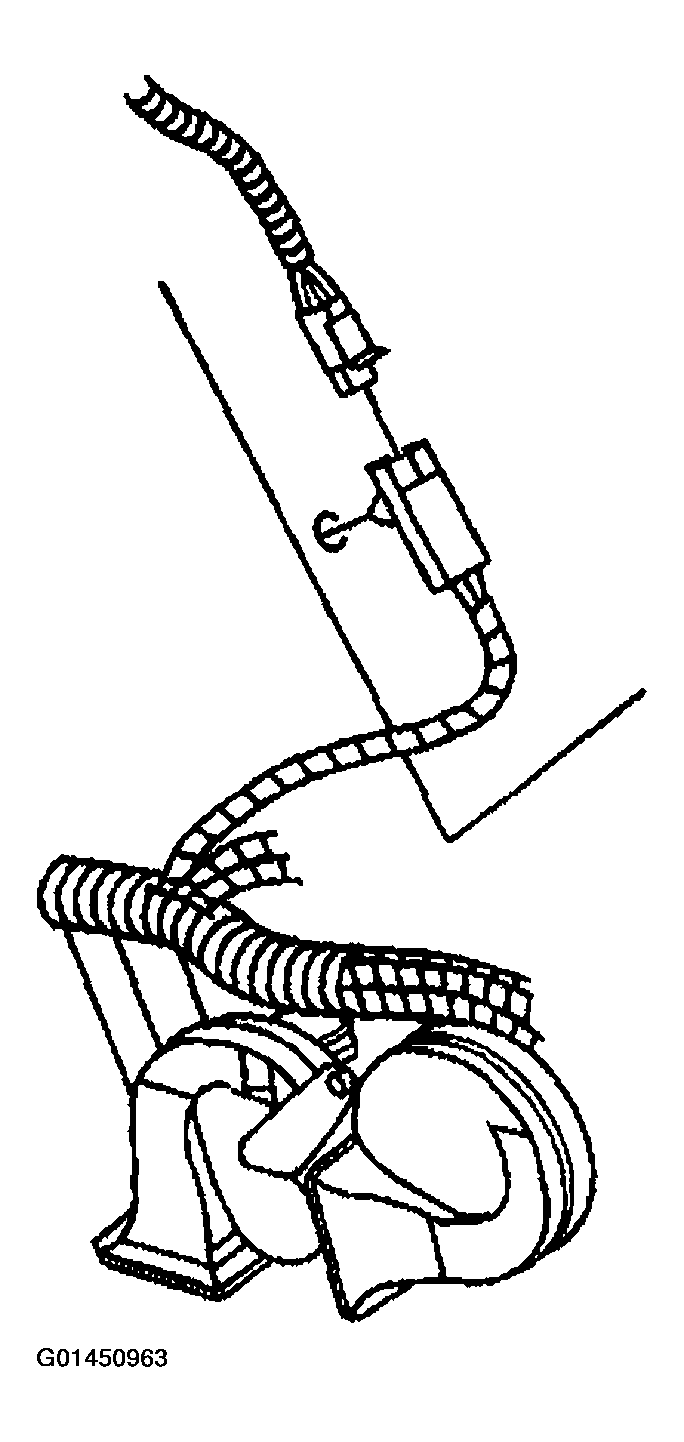

    Fig 3: Connecting Under Hood Light Electrical Connection
    G01450963Courtesy of GENERAL MOTORS CORP.
