Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Positioning Accelerator Pedal Onto Mounting Studs

Courtesy of GENERAL MOTORS CORP.

Position the accelerator pedal on the mounting studs.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the mounting nuts.
Tighten: Tighten the mounting nuts to 11 N.m (97 lb in).

Fig 2: Installing Mounting Bolt Behind Accelerator Pedal

Courtesy of GENERAL MOTORS CORP.

Install the mounting bolt behind the accelerator pedal.
Tighten: Tighten the mounting nuts to 11 N.m (97 lb in).

Fig 3: Adjusting Accelerator Pedal

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The following procedure must be performed before if the accelerator pedal or brake pedal drive motor and cable assembly are being replaced. Failure to do so could cause an IMPROPER STEP OVER HEIGHT.

Adjust the accelerator pedal in the following sequence:
1. Turning the motor transmission clockwise reduces the gap, and counterclockwise increases the gap.
2. Position the drill bit 4.5 N.m (0.187 in-3/16 or the equivalent in number and or letter drill bits) a 1/4 of an inch from the bottom of the metal accelerator pivot arm.
3. Rotating the drive cable by hand, adjust the accelerator motor transmission until the drill 4.5 N.m (0.187 in-3/16 or the equivalent in number and or letter drill) bit fits snugly between the plastic accelerator arm and the metal pivot arm.

Fig 4: Locating Drive Cable

Courtesy of GENERAL MOTORS CORP.

Install the drive cable.

Fig 5: Installing Drive Cable Lock Collar

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure that the locking tabs are fully seated before installing the lock for the drive cable.

Install the drive cable lock collar.

Fig 6: Rotating Drive Cable Lock Collar To Lock Position

Courtesy of GENERAL MOTORS CORP.

Rotate the drive cable lock collar to the lock position.

Fig 7: Electrical Connection For Accelerator

Courtesy of GENERAL MOTORS CORP.

Install the electrical connection for the accelerator.

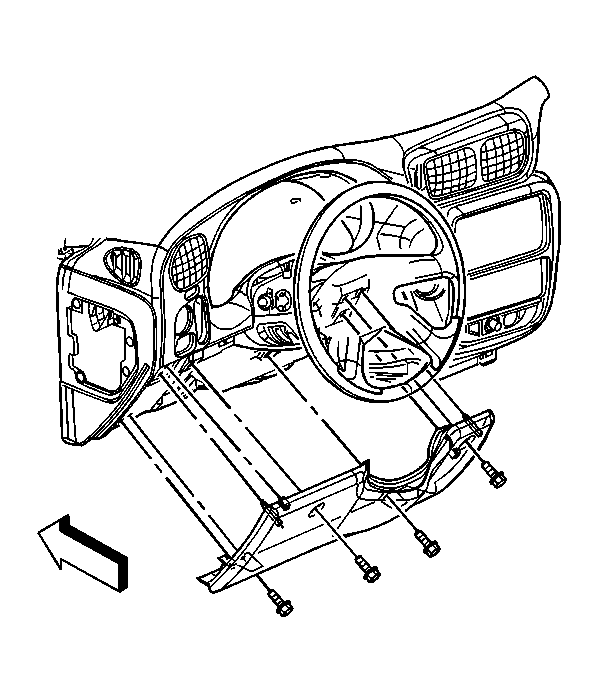

Fig 8: Installing Knee Bolster Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster in Instrument Panel, Gages, and Console.
Verify the operation of the adjustable pedals.
