Automatic Level Control Suspension Component Views

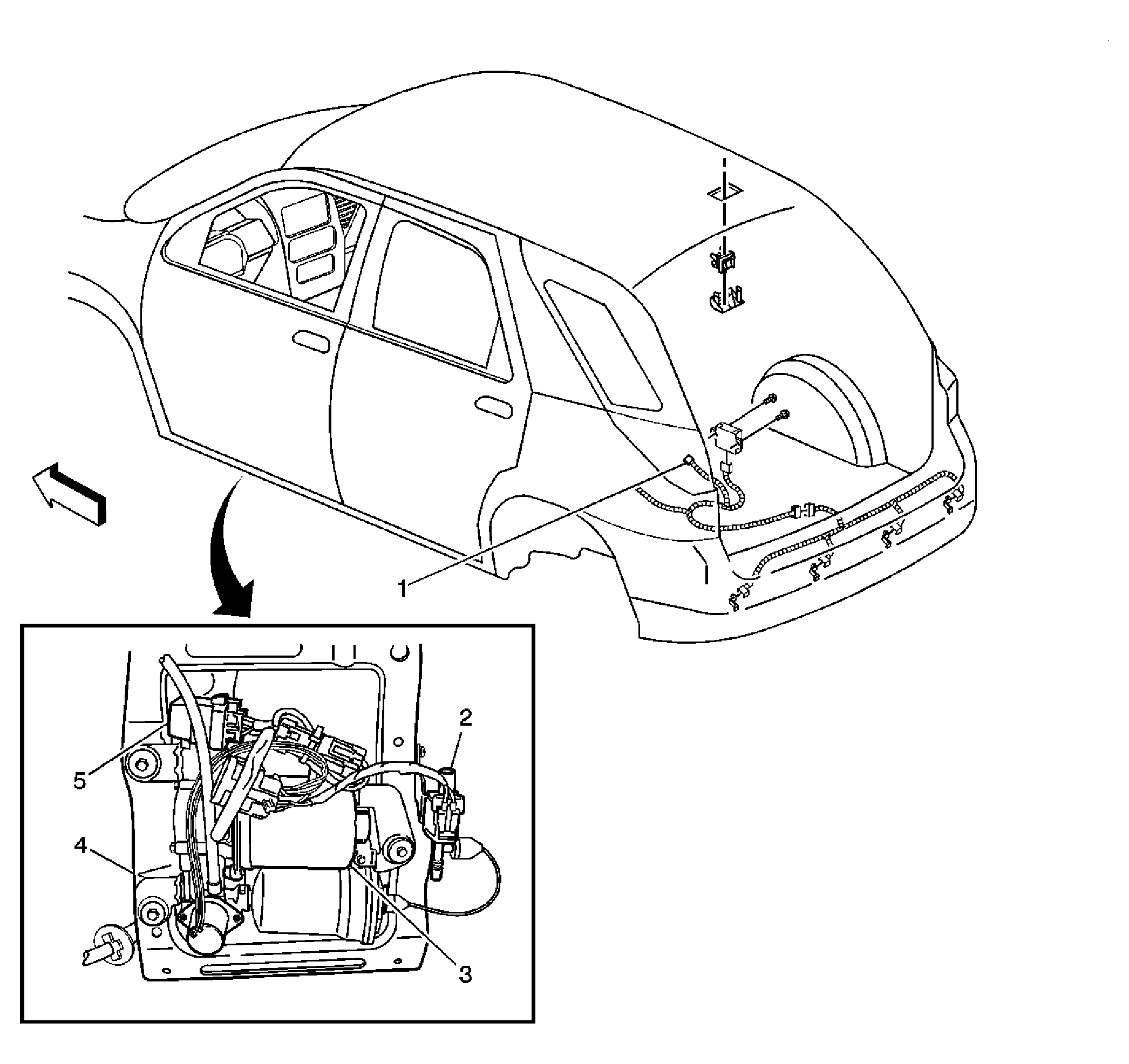

Fig 1: Relay, Switch, Solenoid and Compressor Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflator Air Switch
2	Inflator Soleniod
3	Automatic Level Control (ALC) Compressor
4	Exhaust Solenoid
5	Automatic Level Control (ALC) Compressor Relay

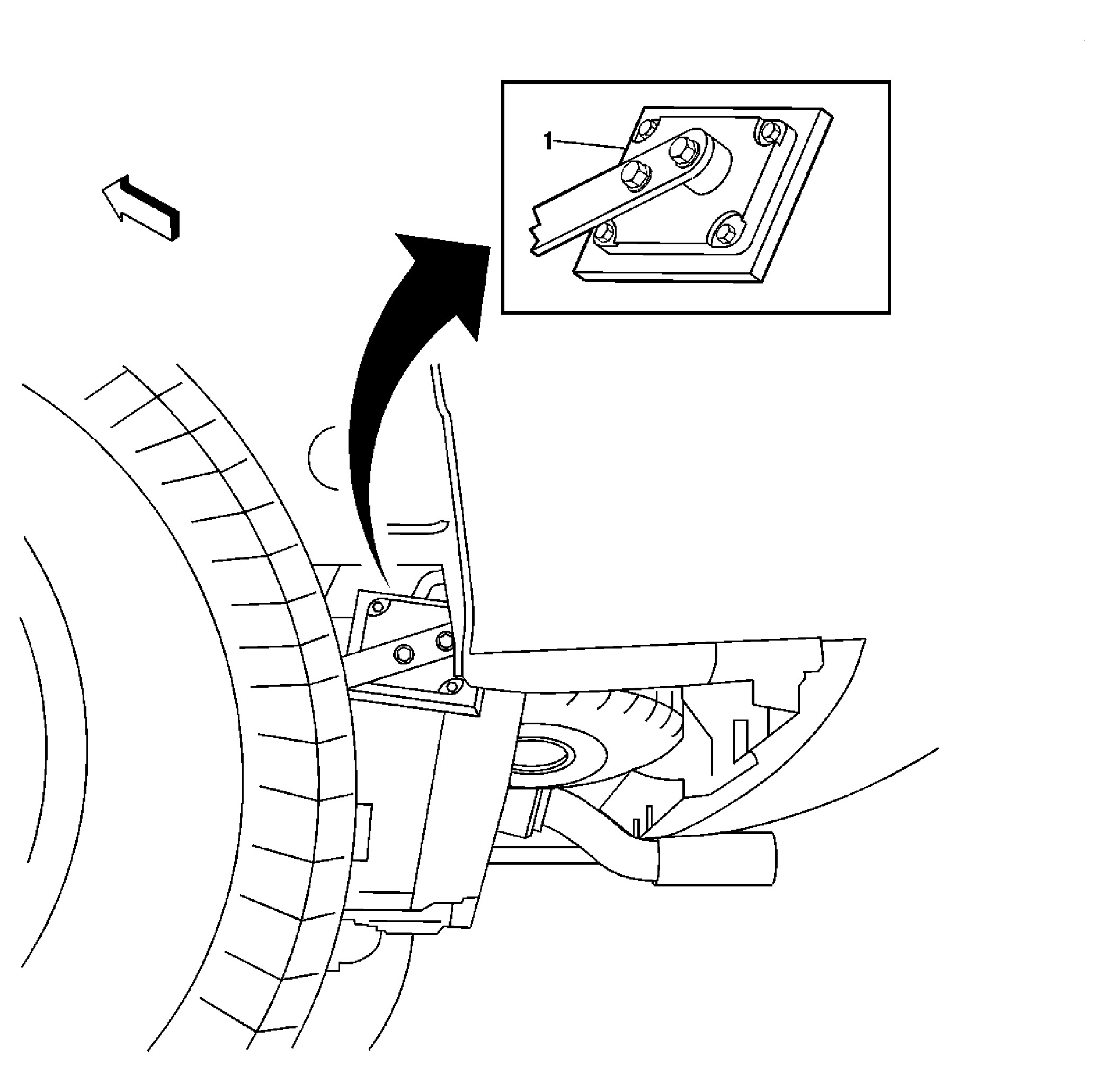

Fig 2: Automatic Level Control (ALC) Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auto Level Control (ALC) Sensor
