Fluid Passages

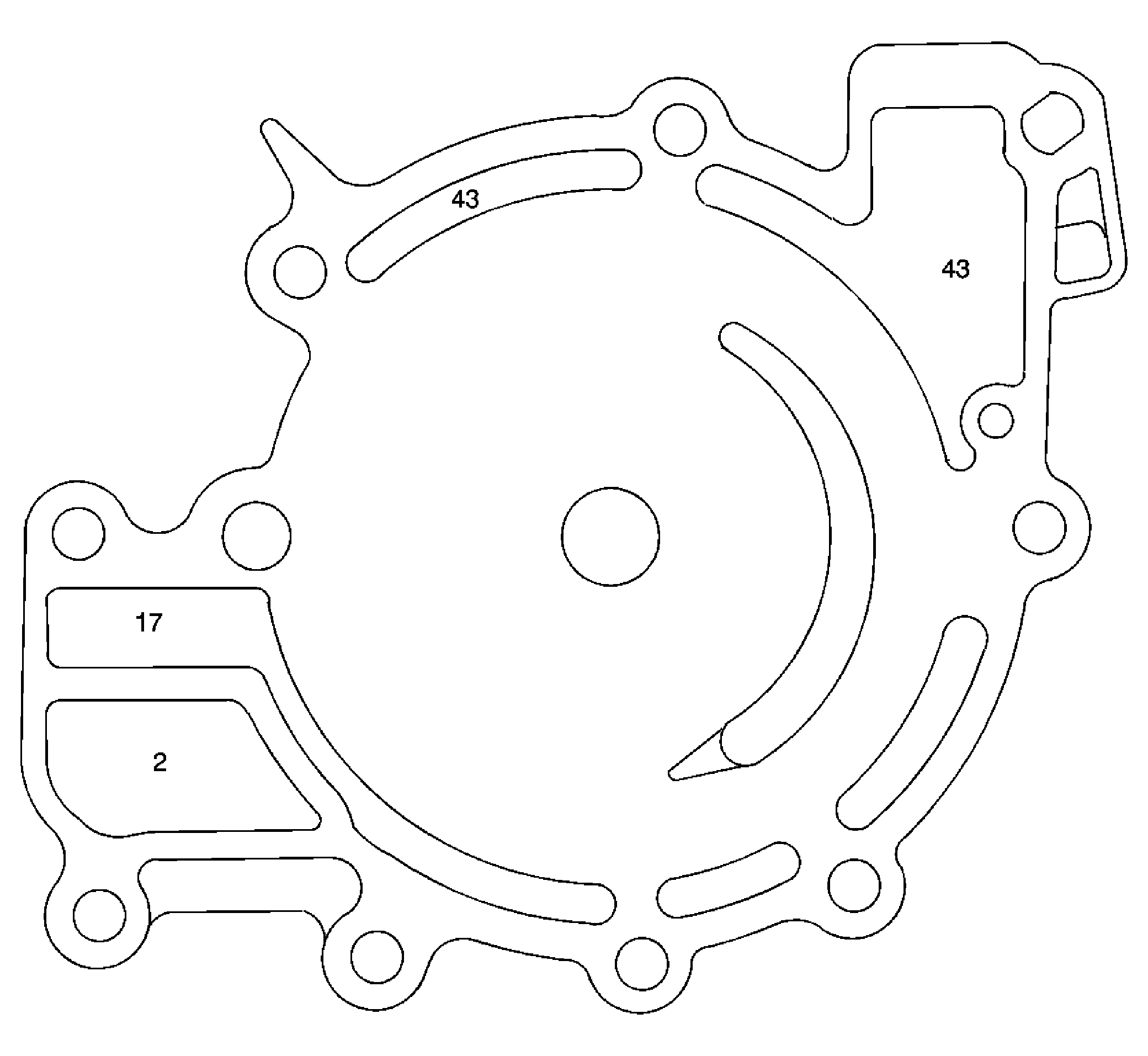

Fig 1: Oil Pump Cover Fluid Passages - Oil Pump Body Side
GM893339Courtesy of GENERAL MOTORS CORP.
Callout Component Name
2 Line
17 Decrease
43 Casting Void
43 Casting Void

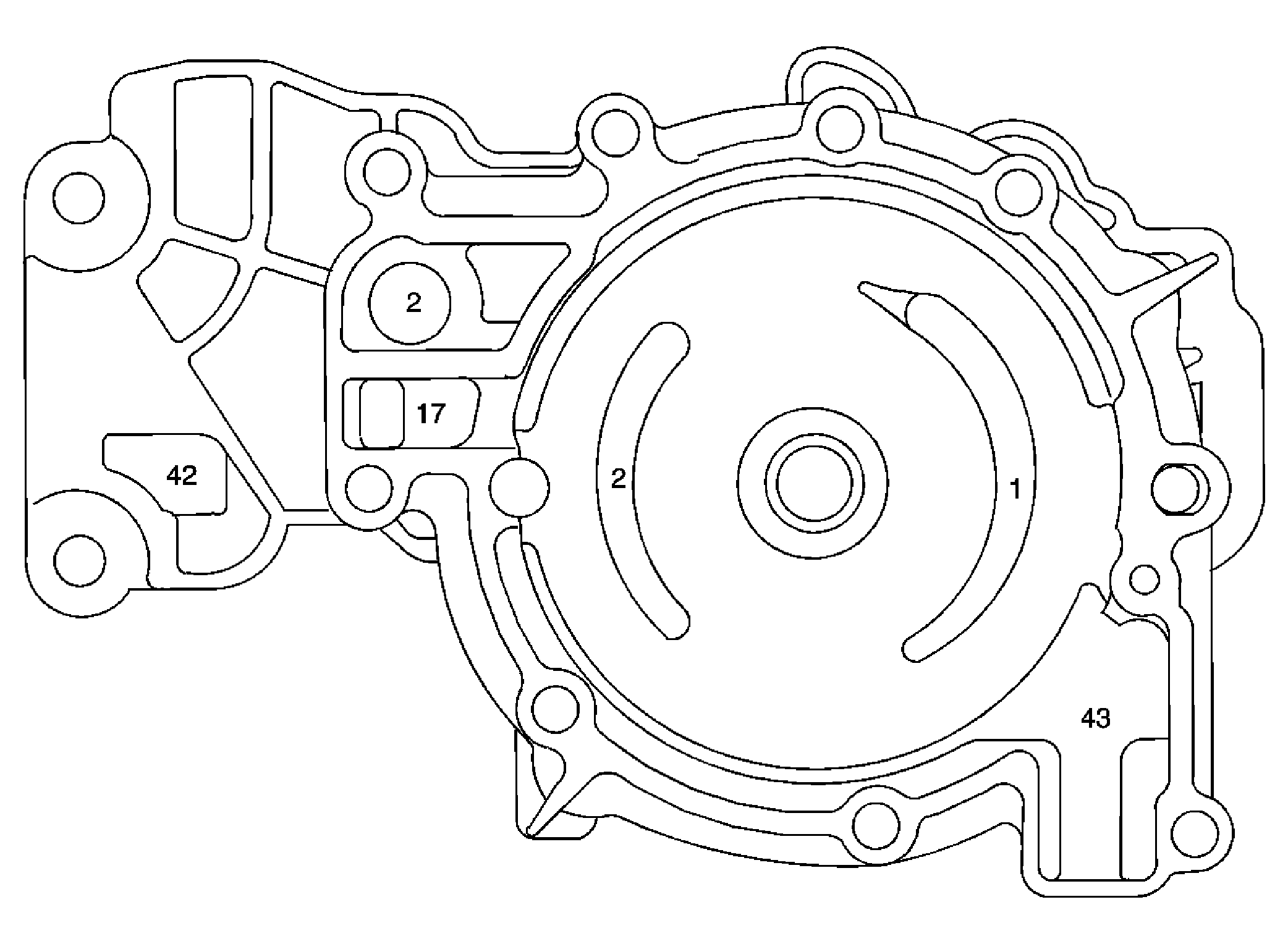

Fig 2: Oil Pump Body Fluid Passages - Oil Pump Cover Side
GM893340Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
17 Decrease
42 Exhaust
43 Casting Void

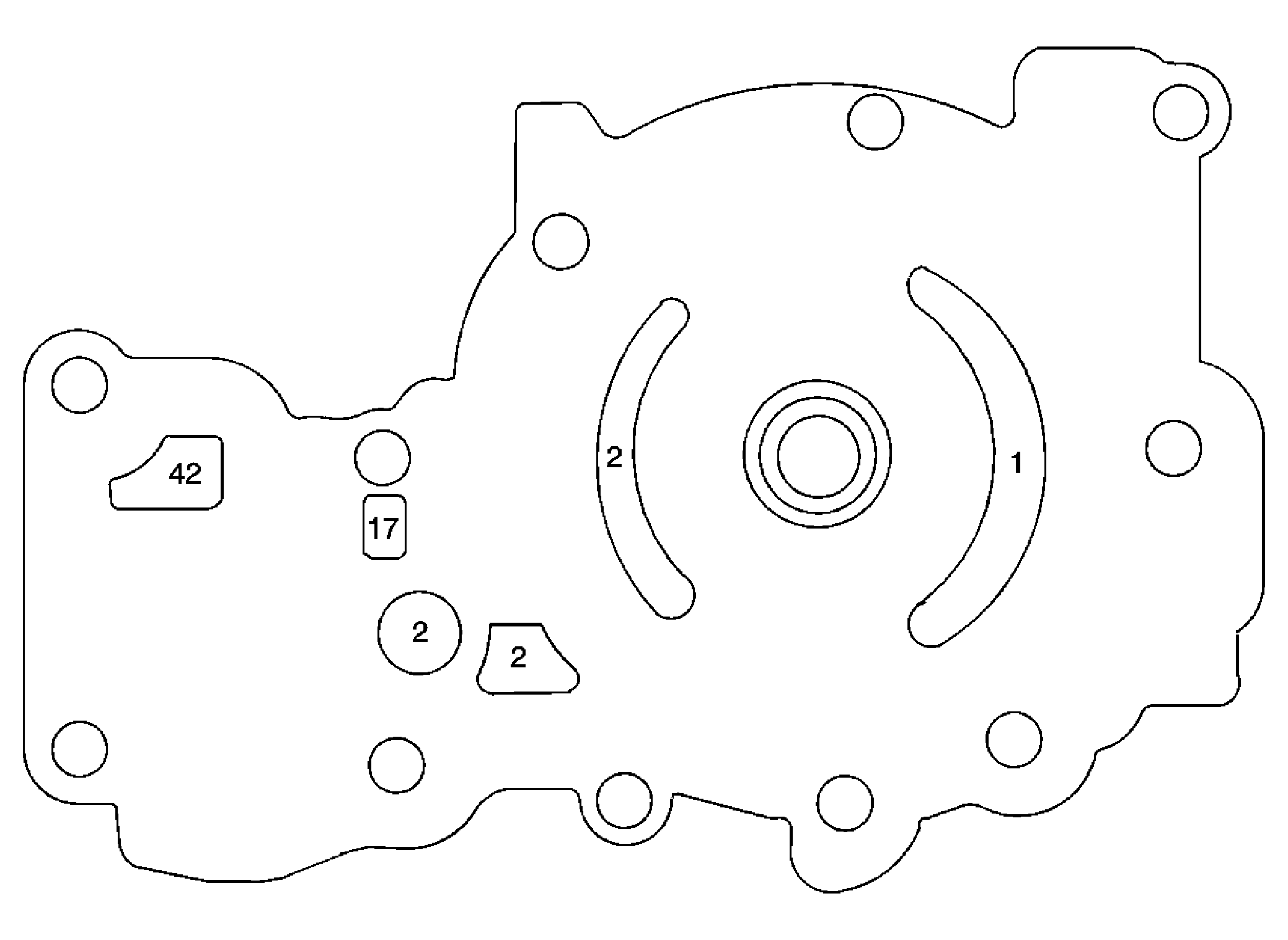

Fig 3: Oil Pump Body Fluid Passages - Control Valve Body Side
GM893341Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
17 Decrease
42 Exhaust

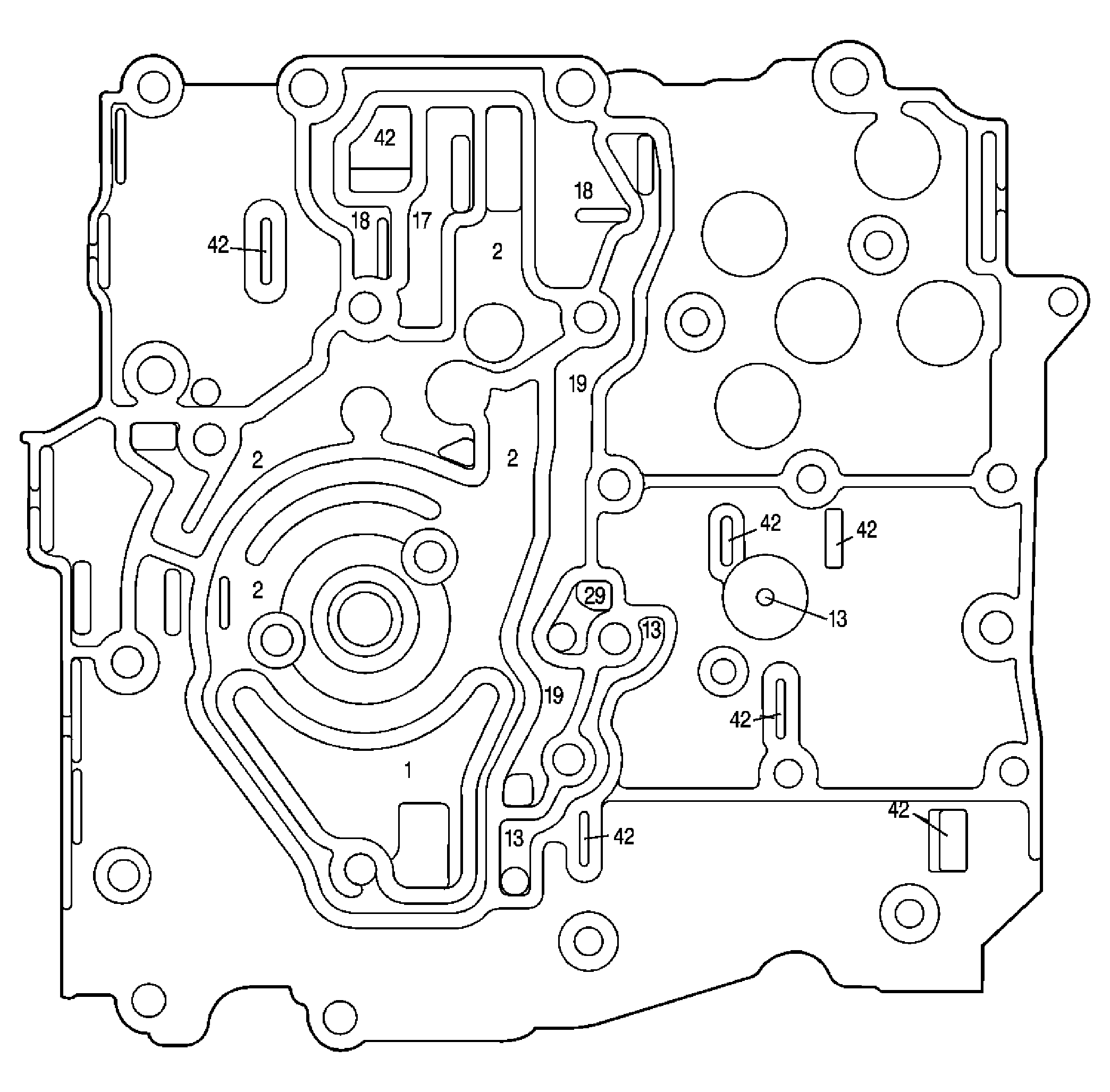

Fig 4: Control Valve Body Fluid Passages - Oil Pump Body Side - Without Touch Activated Power
GM871732Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
13 TCC Release
13 TCC Release
13 TCC Release
17 Decrease
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
29 3rd
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust

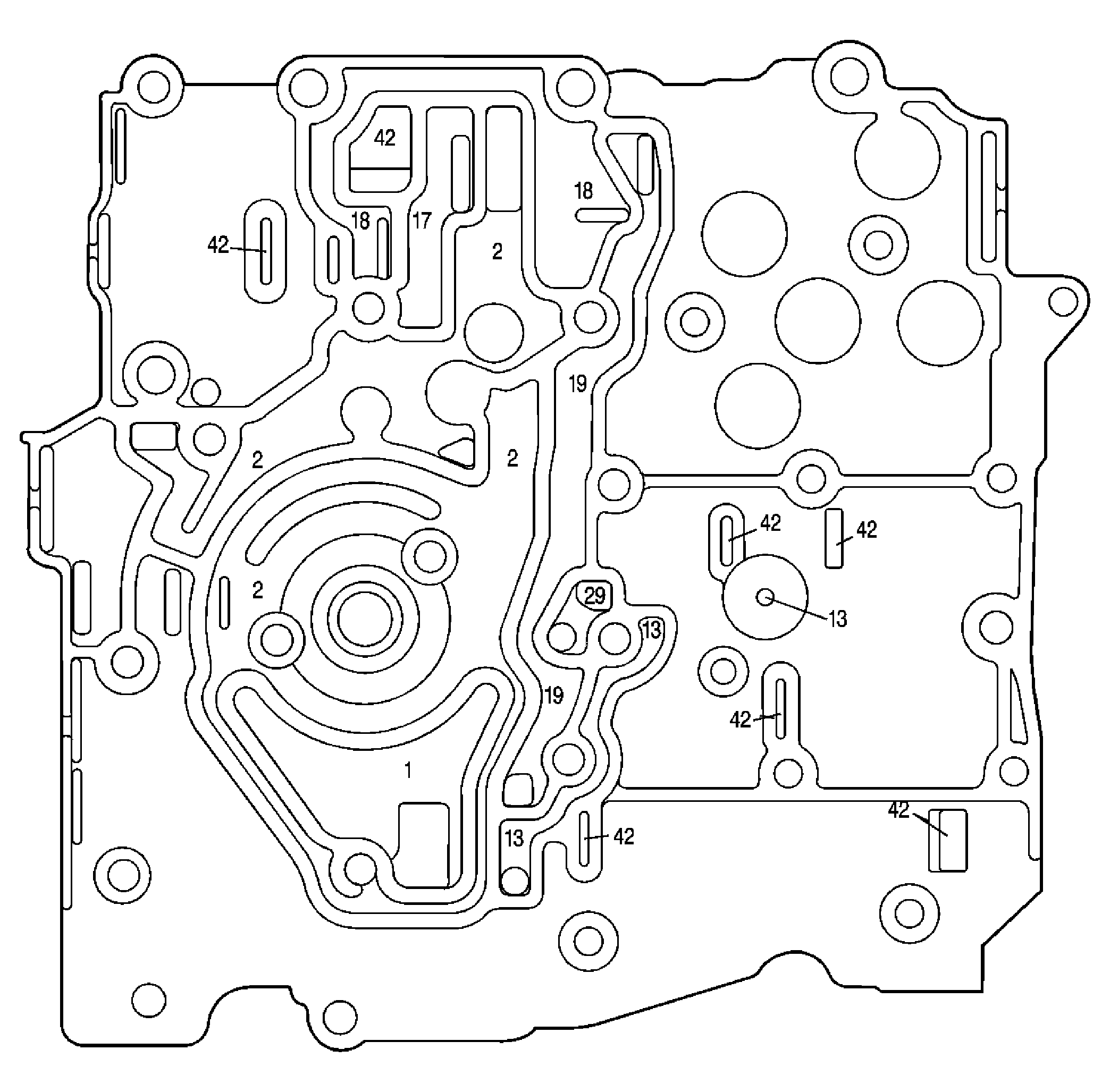

Fig 5: Control Valve Body Fluid Passages - Oil Pump Body Side - With Touch Activated Power
GM1174589Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
13 TCC Release
13 TCC Release
13 TCC Release
17 Decrease
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
29 3rd
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust

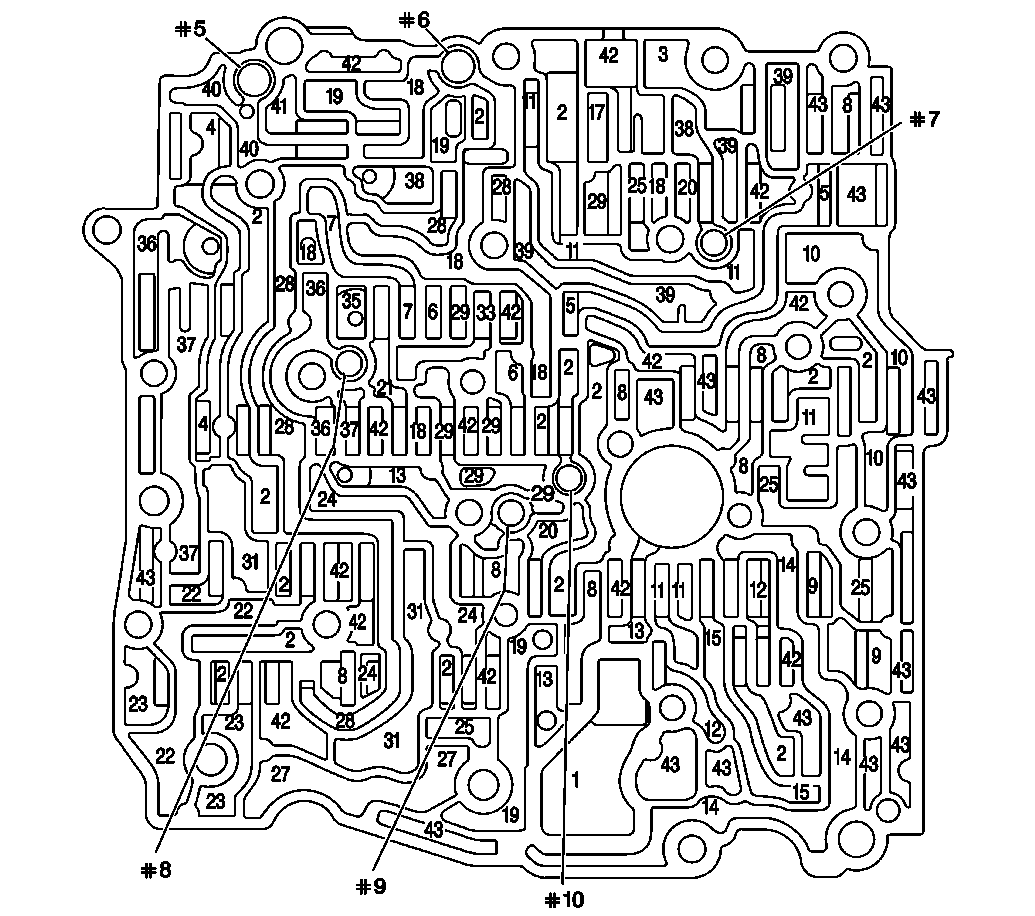

Fig 6: Control Valve Body Fluid Passages - Case Cover Side - Without Touch Activated Power
GM54145Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
3 PRN
4 2-3 Signal
4 2-3 Signal
5 1-2, 3-4 Signal
5 1-2, 3-4 Signal
6 Input Clutch Feed
6 Input Clutch Feed
7 Input Clutch
7 Input Clutch
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
9 TCC Signal (PWM)
9 TCC Signal (PWM)
10 Actuator Feed
10 Actuator Feed
10 Actuator Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
12 TCC Regulated Apply
12 TCC Regulated Apply
13 TCC Release
13 TCC Release
13 TCC Release
14 TCC Apply
14 TCC Apply
14 TCC Apply
15 Cooler
15 Cooler
17 Decrease
18 D4
18 D4
18 D4
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
20 Lo/1st Gear
20 Lo/1st Gear
21 Auxiliary Input Clutch Feed
22 1-2 Accumulator
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
25 2nd
25 2nd
25 2nd
25 2nd
27 2nd Clutch
27 2nd Clutch
28 2-3 Off Signal
28 2-3 Off Signal
28 2-3 Off Signal
28 2-3 Off Signal
28 2-3 Off Signal
29 3rd
29 3rd
29 3rd
29 3rd
29 3rd
29 3rd
31 3rd Clutch
31 3rd Clutch
31 3rd Clutch
33 4th Clutch
35 D3
36 D2
36 D2
36 D2
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
38 Lo
38 Lo
39 Lo-1st
39 Lo-1st
39 Lo-1st
39 Lo-1st
40 Reverse
40 Reverse
41 Reverse Servo
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
#5 Ball Check Valve
#6 Ball Check Valve
#7 Ball Check Valve
#8 Ball Check Valve
#9 Ball Check Valve
#10 Ball Check Valve

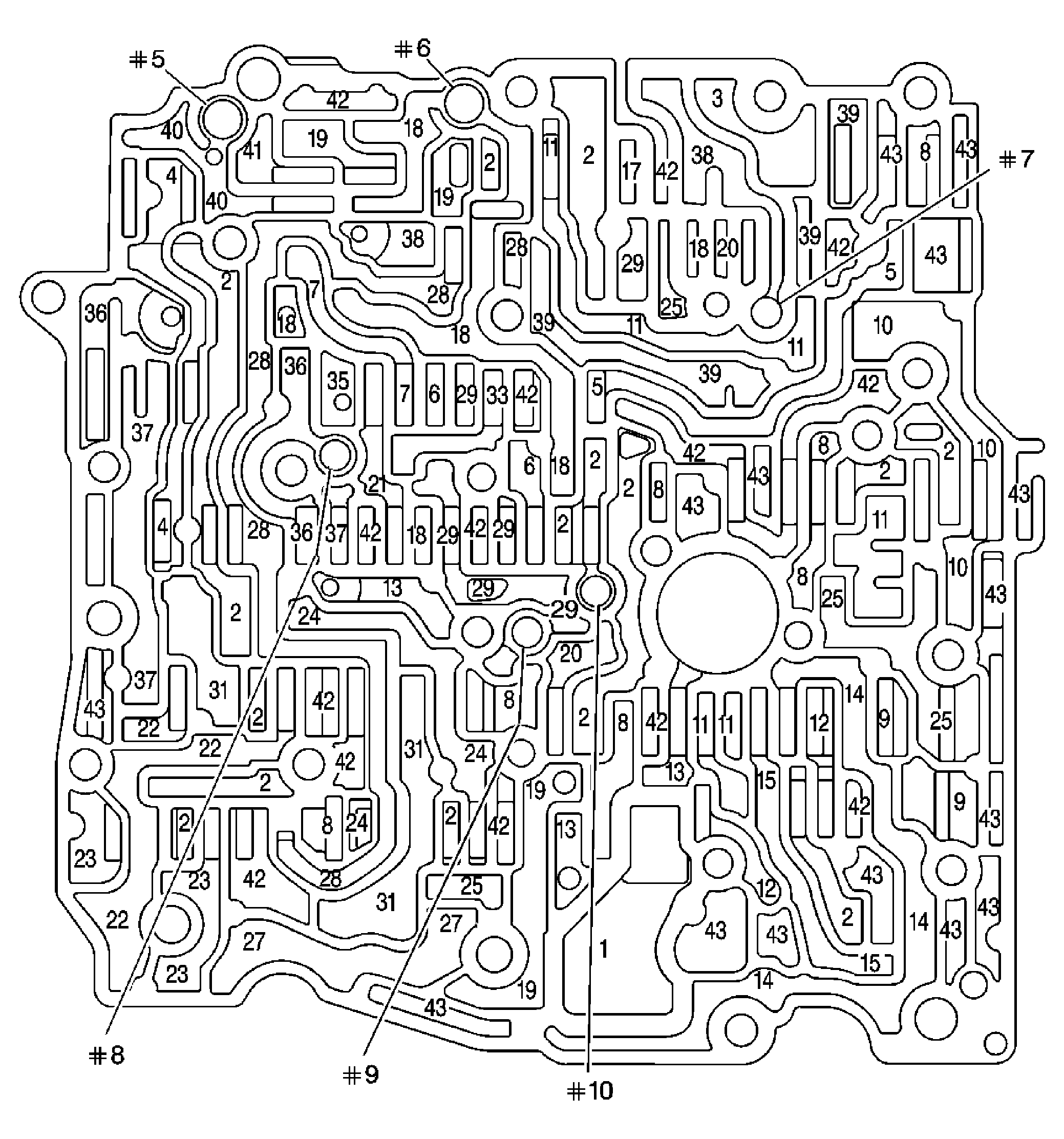

Fig 7: Control Valve Body Fluid Passages - Case Cover Side - With Touch Activated Power
GM1174592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
3 PRN
4 2-3 Signal
4 2-3 Signal
5 1-2, 3-4 Signal
5 1-2, 3-4 Signal
6 Input Clutch Feed
6 Input Clutch Feed
7 Input Clutch
7 Input Clutch
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
9 TCC Signal (PWM)
9 TCC Signal (PWM)
10 Actuator Feed
10 Actuator Feed
10 Actuator Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
12 TCC Regulated Apply
12 TCC Regulated Apply
13 TCC Release
13 TCC Release
13 TCC Release
14 TCC Apply
14 TCC Apply
14 TCC Apply
15 Cooler
15 Cooler
17 Decrease
18 D4
18 D4
18 D4
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
20 Lo/1st Gear
20 Lo/1st Gear
21 Auxiliary Input Clutch Feed
22 1-2 Accumulator
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
25 2nd
25 2nd
25 2nd
25 2nd
27 2nd Clutch
27 2nd Clutch
28 2-3 Off Signal
28 2-3 Off Signal
28 2-3 Off Signal
28 2-3 Off Signal
28 2-3 Off Signal
29 3rd
29 3rd
29 3rd
29 3rd
29 3rd
29 3rd
31 3rd Clutch
31 3rd Clutch
31 3rd Clutch
33 4th Clutch
35 D3
36 D2
36 D2
36 D2
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
38 Lo
38 Lo
39 Lo-1st
39 Lo-1st
39 Lo-1st
39 Lo-1st
40 Reverse
40 Reverse
41 Reverse Servo
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
#5 Ball Check Valve
#6 Ball Check Valve
#7 Ball Check Valve
#8 Ball Check Valve
#9 Ball Check Valve
#10 Ball Check Valve

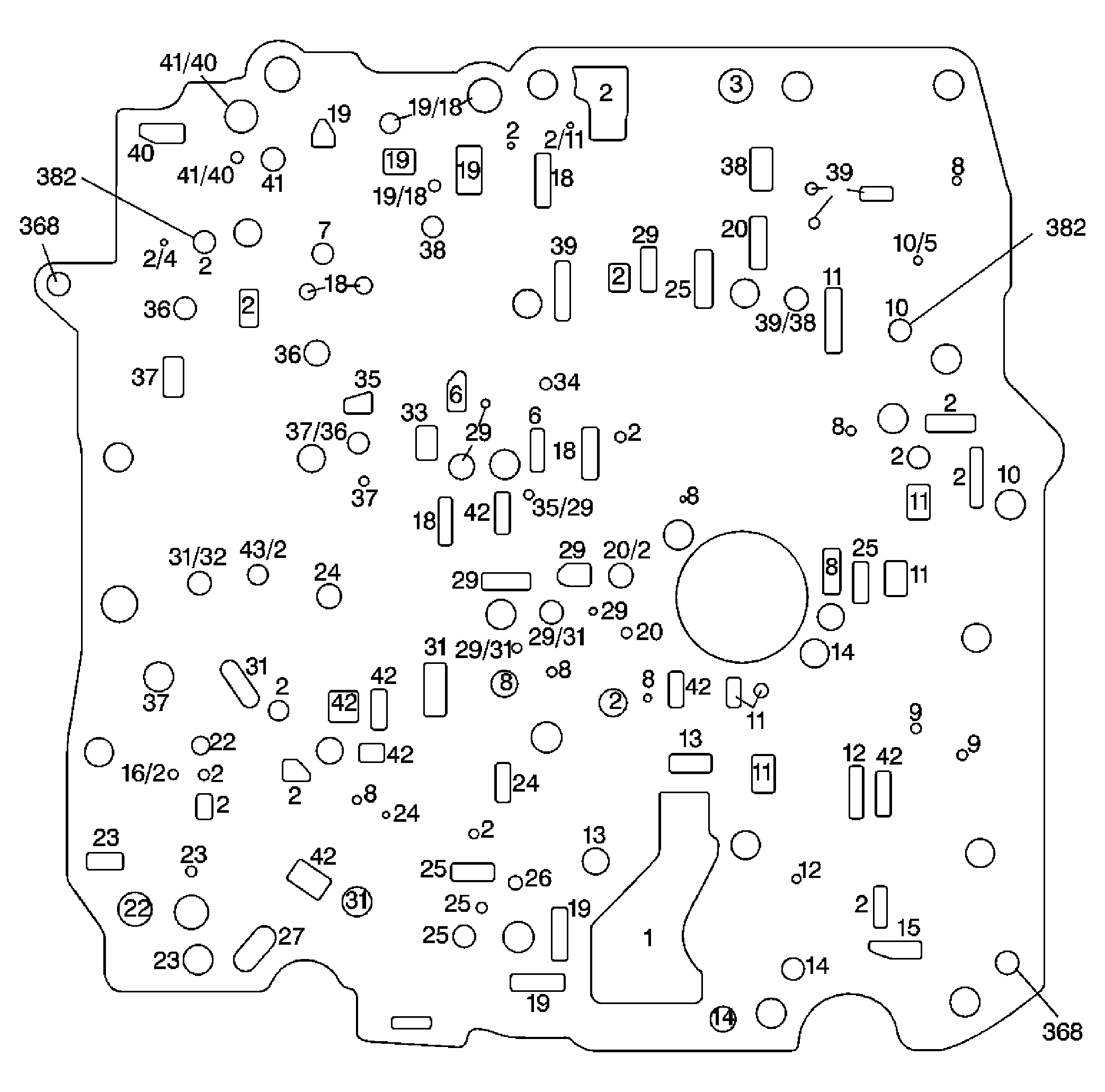

Fig 8: Spacer Plate Fluid Passages - Without Touch Activated Power
GM872847Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2/4 Line/2-3 Signal
2/11 Line/Converter Feed
3 PRN
6 Input Clutch Feed
6 Input Clutch Feed
7 Input Clutch
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
9 TCC Signal (PWM)
9 TCC Signal (PWM)
10 Actuator Feed
10 Actuator Feed
10/5 Actuator Feed/1-2, 3-4 Signal
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
12 TCC Regulated Apply
12 TCC Regulated Apply
13 TCC Release
13 TCC Release
14 TCC Apply
14 TCC Apply
14 TCC Apply
15 Cooler
16/2 Lube/Line
18 D4
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
19/18 Forward Servo/D4
19/18 Forward Servo/D4
20 Lo/1st Gear
20 Lo/1st Gear
20/2 Lo/1st Gear/Line
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
25 2nd
25 2nd
25 2nd
25 2nd
25 2nd
26 2nd Exhaust
27 2nd Clutch
29 3rd
29 3rd
29 3rd
29 3rd
29 3rd
29/31 3rd/3rd Clutch
29/31 3rd/3rd Clutch
31 3rd Clutch
31 3rd Clutch
31 3rd Clutch
31/32 3rd Clutch/3rd Clutch/Lo-1st
33 4th Clutch
34 4th Clutch Exhaust
35 D3
35/29 D3/3rd
36 D2
36 D2
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37/36 Manual 2-1 Servo/D2
38 Lo
38 Lo
39 Lo-1st
39 Lo-1st
39/38 Lo-1st/Lo
40 Reverse
41 Reverse Servo
41/40 Reverse Servo/Reverse
41/40 Reverse Servo/Reverse
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43/2 Casting Void/Line
368 Spacer Plate and Gaskets/Control Valve Body Bolt Hole
368 Spacer Plate and Gaskets/Control Valve Body Bolt Hole
382 TCC Solenoid Valve Screen/Seal Assembly
382 TCC Solenoid Valve Screen/Seal Assembly

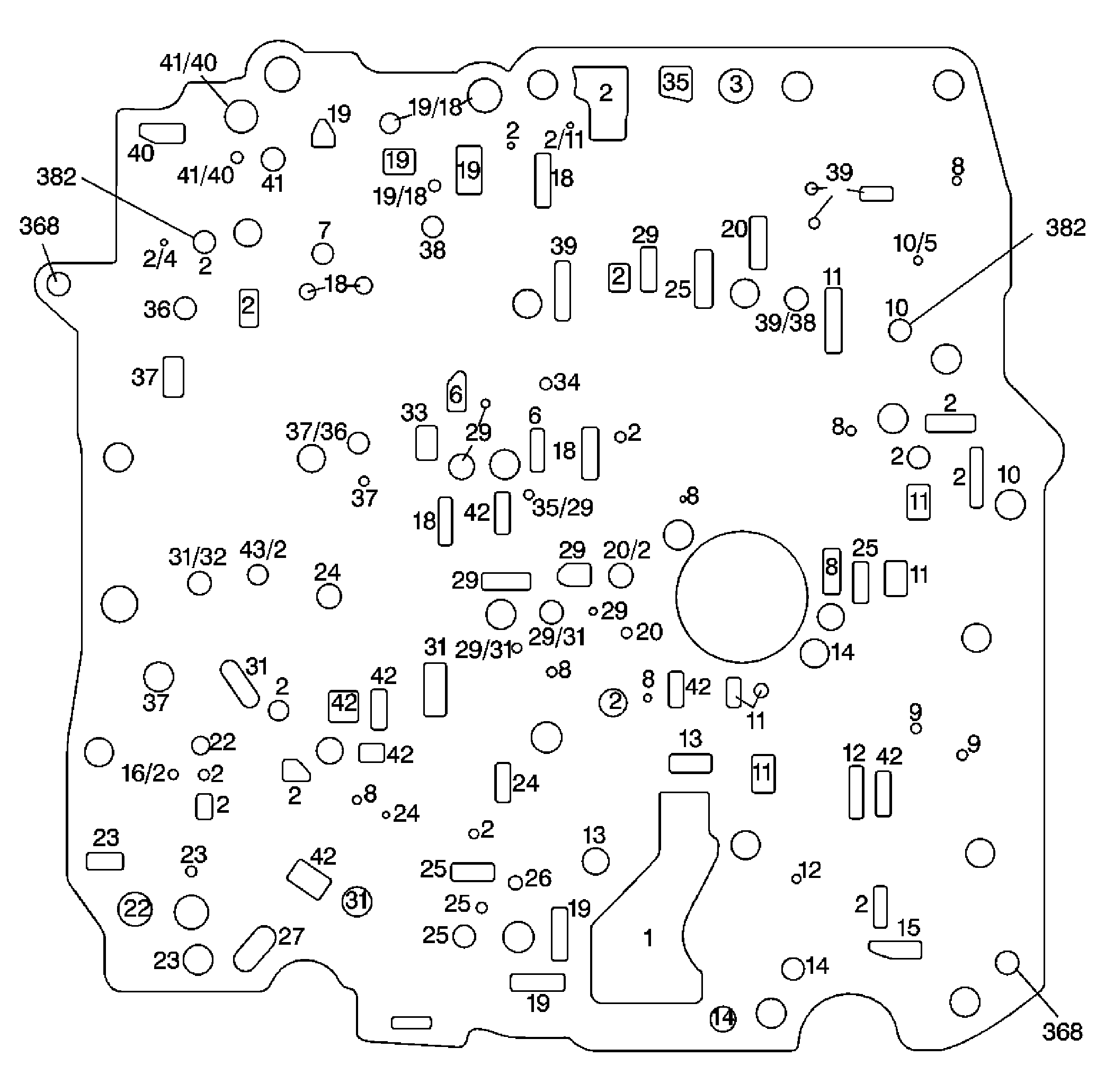

Fig 9: Spacer Plate Fluid Passages - With Touch Activated Power
GM1174603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2/4 Line/2-3 Signal
2/11 Line/Converter Feed
3 PRN
6 Input Clutch Feed
6 Input Clutch Feed
7 Input Clutch
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
9 TCC Signal (PWM)
9 TCC Signal (PWM)
10 Actuator Feed
10 Actuator Feed
10/5 Actuator Feed/1-2, 3-4 Signal
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
12 TCC Regulated Apply
12 TCC Regulated Apply
13 TCC Release
13 TCC Release
14 TCC Apply
14 TCC Apply
14 TCC Apply
15 Cooler
16/2 Lube/Line
18 D4
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
19/18 Forward Servo/D4
19/18 Forward Servo/D4
20 Lo/1st Gear
20 Lo/1st Gear
20/2 Lo/1st Gear/Line
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
25 2nd
25 2nd
25 2nd
25 2nd
25 2nd
26 2nd Exhaust
27 2nd Clutch
29 3rd
29 3rd
29 3rd
29 3rd
29 3rd
29/31 3rd/3rd Clutch
29/31 3rd/3rd Clutch
31 3rd Clutch
31 3rd Clutch
31 3rd Clutch
31/32 3rd Clutch/3rd Clutch/Lo-1st
33 4th Clutch
34 4th Clutch Exhaust
35 D3
35/29 D3/3rd
36 D2
36 D2
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37/36 Manual 2-1 Servo/D2
38 Lo
38 Lo
39 Lo-1st
39 Lo-1st
39/38 Lo-1st/Lo
40 Reverse
41 Reverse Servo
41/40 Reverse Servo/Reverse
41/40 Reverse Servo/Reverse
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43/2 Casting Void/Line
368 Spacer Plate and Gaskets/Control Valve Body Bolt Hole
368 Spacer Plate and Gaskets/Control Valve Body Bolt Hole
382 TCC Solenoid Valve Screen/Seal Assembly
382 TCC Solenoid Valve Screen/Seal Assembly

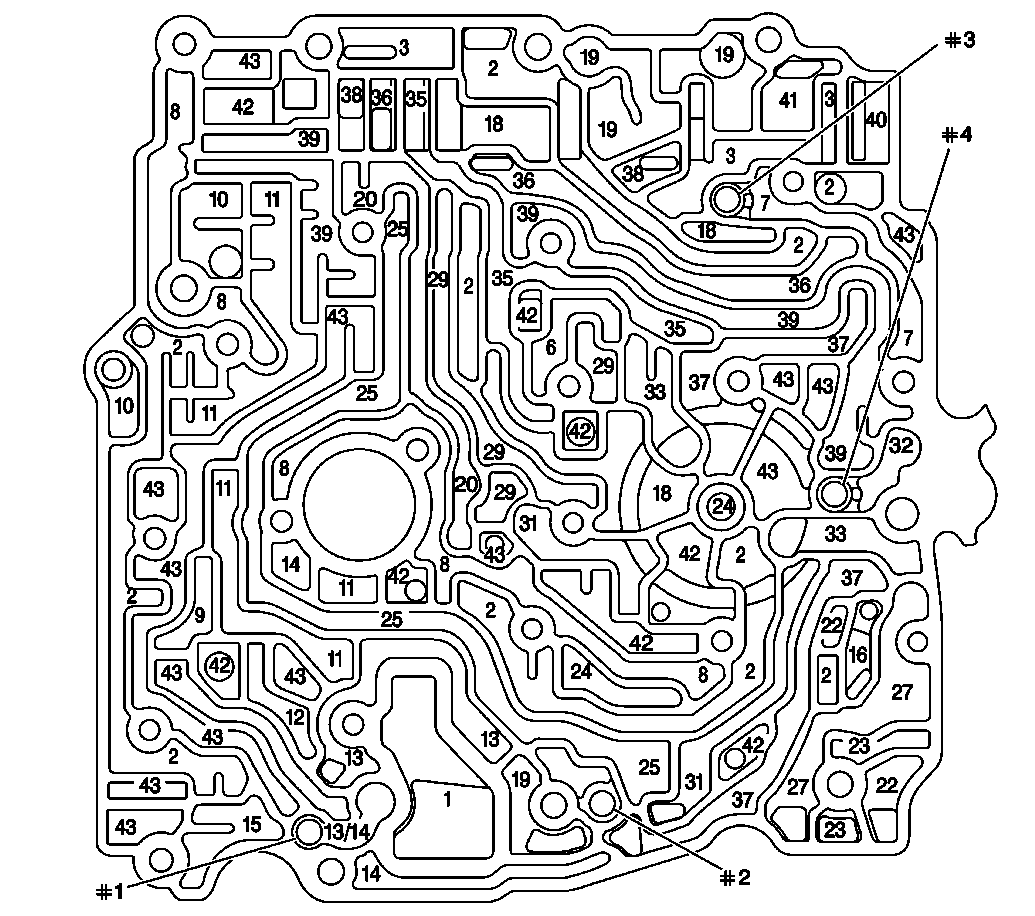

Fig 10: Case Cover Fluid Passages - Control Valve Body Side - Without Touch Activated Power
GM54151Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
3 PRN
3 PRN
3 PRN
6 Input Clutch Feed
7 Input Clutch
7 Input Clutch
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
9 TCC Signal (PWM)
10 Actuator Feed
10 Actuator Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
12 TCC Regulated Apply
13 TCC Release
13 TCC Release
13/14 TCC Release/TCC Apply
14 TCC Apply
14 TCC Apply
15 Cooler
16 Lube
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
20 Lo/1st Gear
20 Lo/1st Gear
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
25 2nd
25 2nd
25 2nd
25 2nd
27 2nd Clutch
27 2nd Clutch
29 3rd
29 3rd
29 3rd
29 3rd
31 3rd Clutch
31 3rd Clutch
32 3rd Clutch/Lo-1st
33 4th Clutch
33 4th Clutch
35 D3
35 D3
35 D3
36 D2
36 D2
36 D2
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
38 Lo
38 Lo
39 Lo-1st
39 Lo-1st
39 Lo-1st
39 Lo-1st
39 Lo-1st
40 Reverse
41 Reverse Servo
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
#1 Ball Check Valve
#2 Ball Check Valve
#3 Ball Check Valve
#4 Ball Check Valve

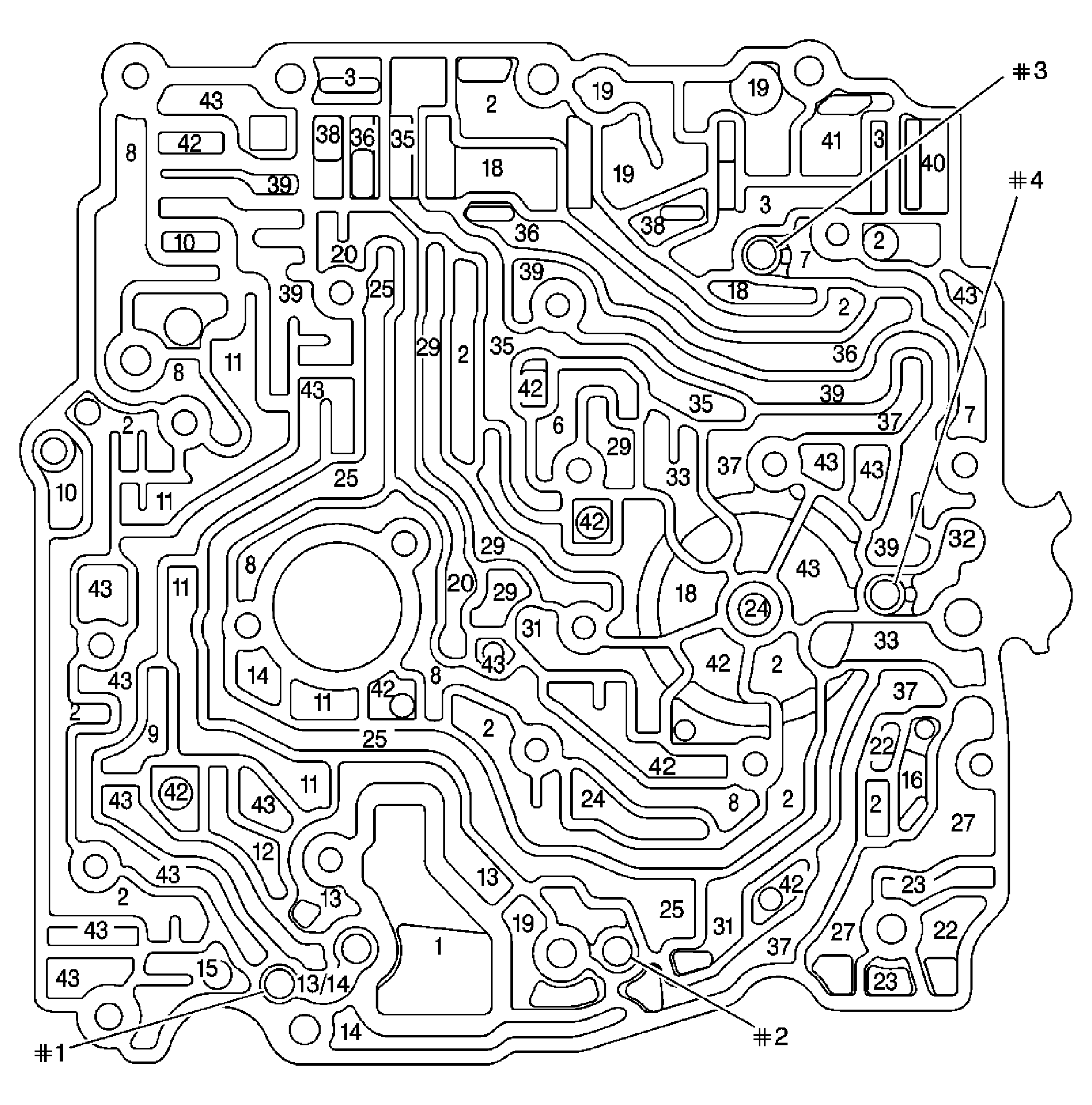

Fig 11: Case Cover Fluid Passages - Control Valve Body Side - With Touch Activated Power
GM1174615Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
2 Line
3 PRN
3 PRN
3 PRN
6 Input Clutch Feed
7 Input Clutch
7 Input Clutch
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
8 Torque Signal
9 TCC Signal (PWM)
10 Actuator Feed
10 Actuator Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
11 Converter Feed
12 TCC Regulated Apply
13 TCC Release
13 TCC Release
13/14 TCC Release/TCC Apply
14 TCC Apply
14 TCC Apply
15 Cooler
16 Lube
18 D4
18 D4
18 D4
19 Forward Servo
19 Forward Servo
19 Forward Servo
19 Forward Servo
20 Lo/1st Gear
20 Lo/1st Gear
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
24 3-4 Accumulator
25 2nd
25 2nd
25 2nd
25 2nd
27 2nd Clutch
27 2nd Clutch
29 3rd
29 3rd
29 3rd
29 3rd
31 3rd Clutch
31 3rd Clutch
32 3rd Clutch/Lo-1st
33 4th Clutch
33 4th Clutch
35 D3
35 D3
35 D3
36 D2
36 D2
36 D2
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo
38 Lo
38 Lo
39 Lo-1st
39 Lo-1st
39 Lo-1st
39 Lo-1st
39 Lo-1st
40 Reverse
41 Reverse Servo
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
43 Casting Void
#1 Ball Check Valve
#2 Ball Check Valve
#3 Ball Check Valve
#4 Ball Check Valve

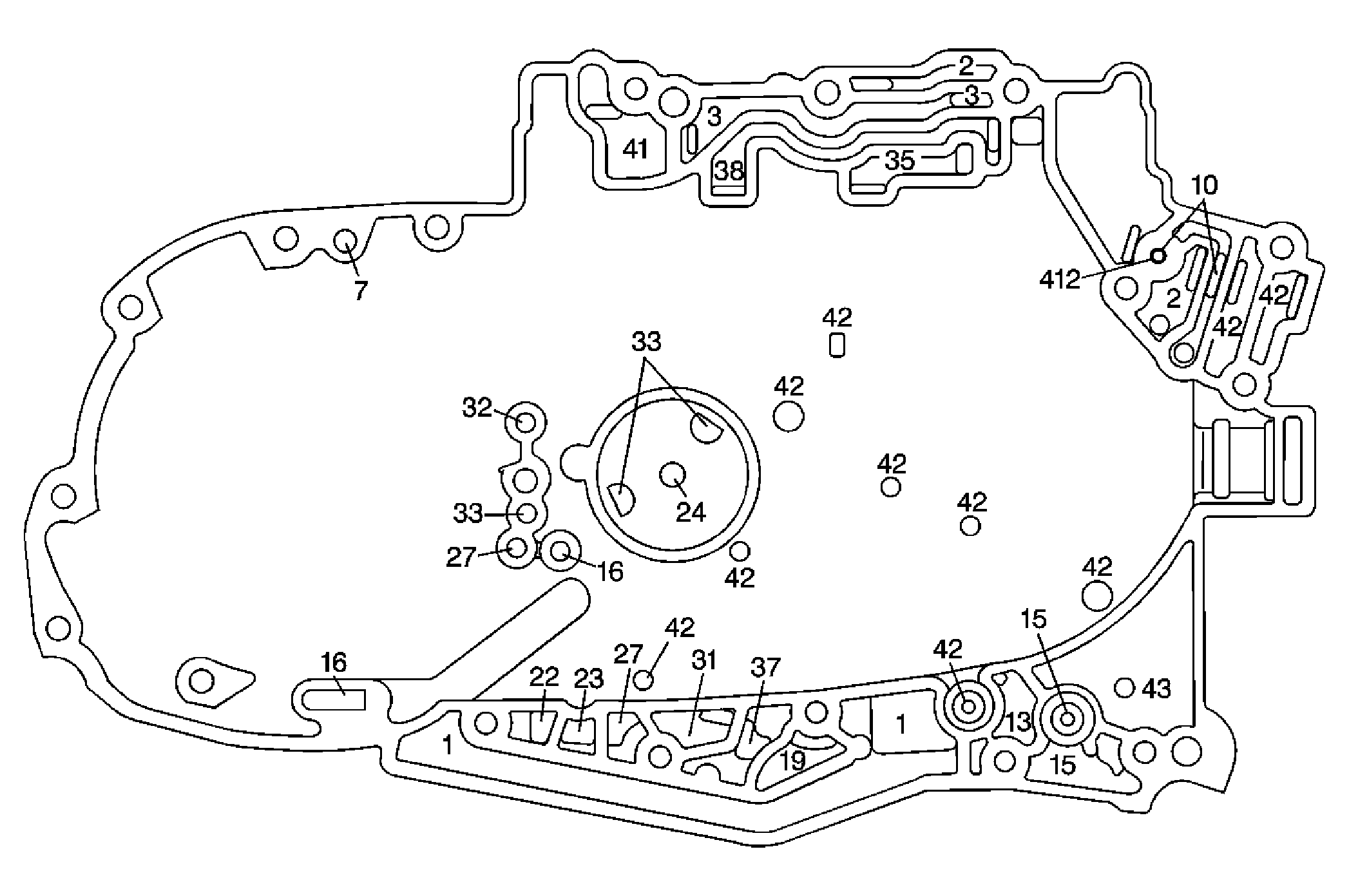

Fig 12: Case Cover Fluid Passages - Case Side - Without Touch Activated Power
GM54157Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
1 Suction
2 Line
2 Line
3 PRN
3 PRN
7 Input Clutch
10 Actuator Feed
13 TCC Release
15 Cooler
15 Cooler
16 Lube
16 Lube
19 Forward Servo
22 1-2 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
27 2nd Clutch
27 2nd Clutch
31 3rd Clutch
32 3rd Clutch/Lo-1st
33 4th Clutch
33 4th Clutch
35 D3
37 Manual 2-1 Servo
38 Lo
41 Reverse Servo
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43 Casting Void
412 Orificed Cup Plug

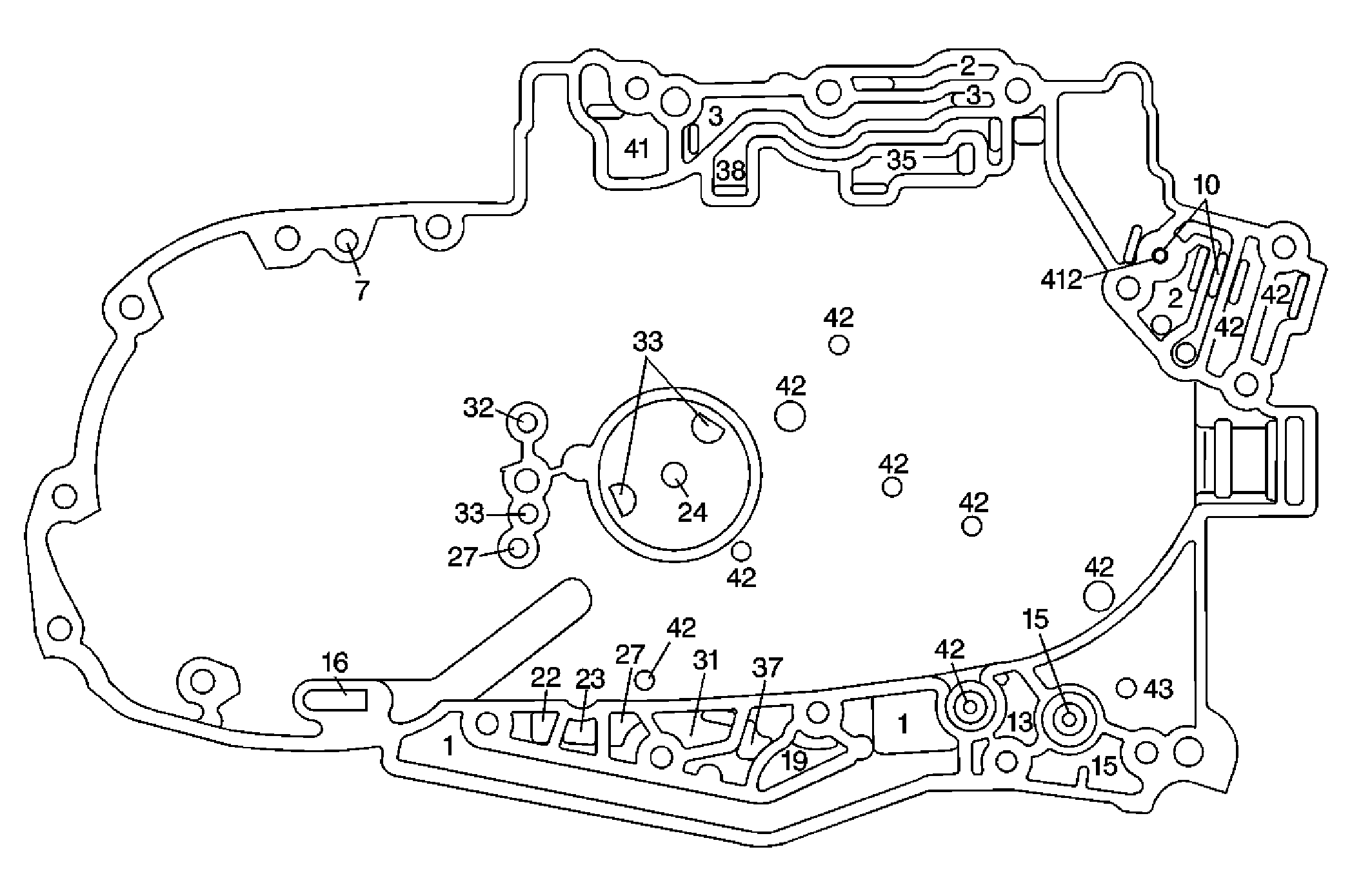

Fig 13: Case Cover Fluid Passages - Case Side - With Touch Activated Power
GM1192396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
1 Suction
2 Line
2 Line
3 PRN
3 PRN
7 Input Clutch
10 Actuator Feed
13 TCC Release
15 Cooler
15 Cooler
16 Lube
16 Lube
19 Forward Servo
22 1-2 Accumulator
23 2-3 Accumulator
24 3-4 Accumulator
27 2nd Clutch
27 2nd Clutch
31 3rd Clutch
32 3rd Clutch/Lo-1st
33 4th Clutch
33 4th Clutch
35 D3
37 Manual 2-1 Servo
38 Lo
41 Reverse Servo
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
42 Exhaust
43 Casting Void
412 Orificed Cup Plug

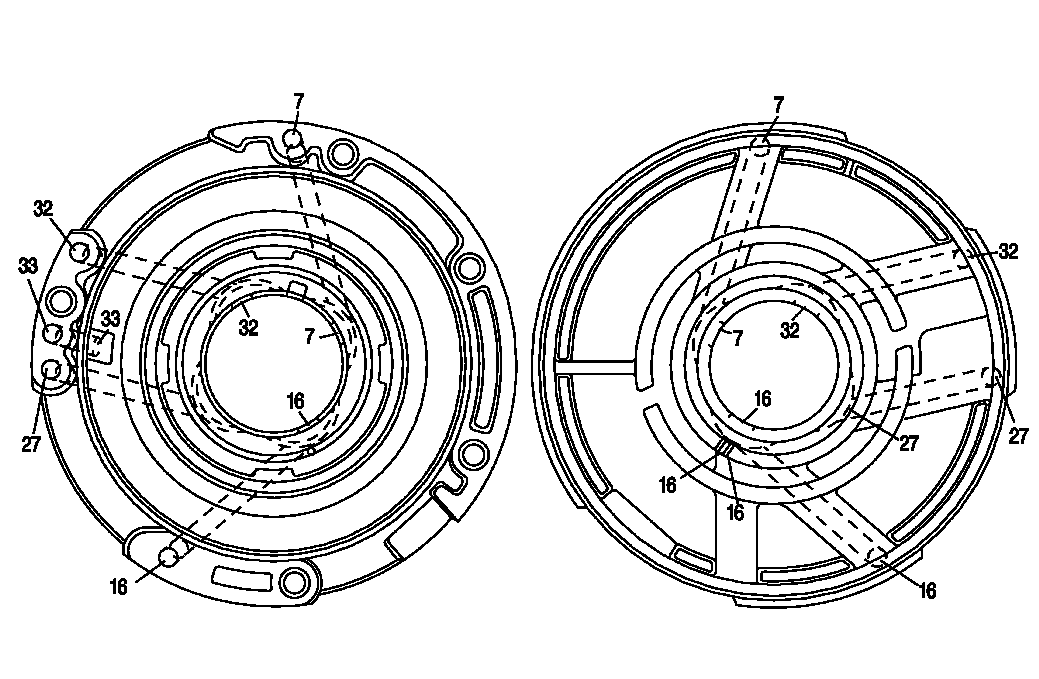

Fig 14: Driven Sprocket Support Fluid Passages
GM54170Courtesy of GENERAL MOTORS CORP.
Callout Component Name
7 Input Clutch
7 Input Clutch
7 Input Clutch
7 Input Clutch
16 Lube
16 Lube
16 Lube
16 Lube
16 Lube
16 Lube
27 2nd Clutch
27 2nd Clutch
27 2nd Clutch
32 3rd Clutch/Lo-1st
32 3rd Clutch/Lo-1st
32 3rd Clutch/Lo-1st
32 3rd Clutch/Lo-1st
33 4th Clutch
33 4th Clutch
Fig 15: Oil Pump Drive Shaft and Drive Sprocket Support Fluid Passages
GM54143Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steel Sleeve
2 TCC Apply Passage
2 TCC Apply Passage
3 Converter Seal Drainback Passage
4 TCC Release Passage
4 TCC Release Passage
227 Oil Pump Drive Shaft Assembly
513 Turbine Shaft Oil Seal Ring
515 Drive Sprocket Retaining Ring
516 Drive Sprocket
517 Drive Sprocket Thrust Washer
518 Turbine Shaft
519 Turbine Shaft Oil Seal Ring
520 Turbine Shaft O-Ring Seal
521 Drive Sprocket Bearing Assembly
522 Drive Sprocket Support
523 Drive Sprocket Support Bushing
527 Vehicle Speed Sensor Reluctor Wheel Assembly

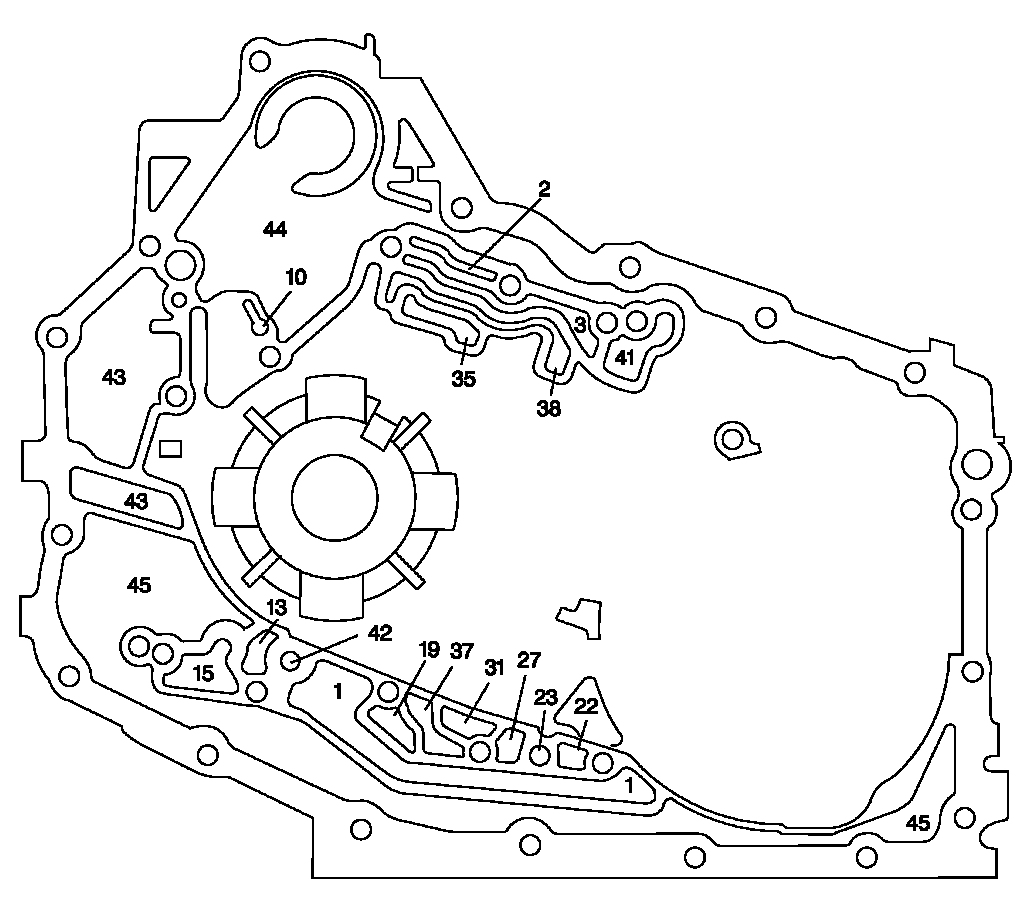

Fig 16: Case Fluid Passages (Case Cover Side)
GM54159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
1 Suction
2 Line
3 PRN
10 Actuator Feed
13 TCC Release
15 Cooler
19 Forward Servo
22 1-2 Accumulator
23 2-3 Accumulator
27 2nd Clutch
31 3rd Clutch
35 D3
37 Manual 2-1 Servo
38 Lo
41 Reverse Servo
42 Exhaust
43 Casting Void
43 Casting Void
44 Vent
45 Thermo Element Exhaust
45 Thermo Element Exhaust

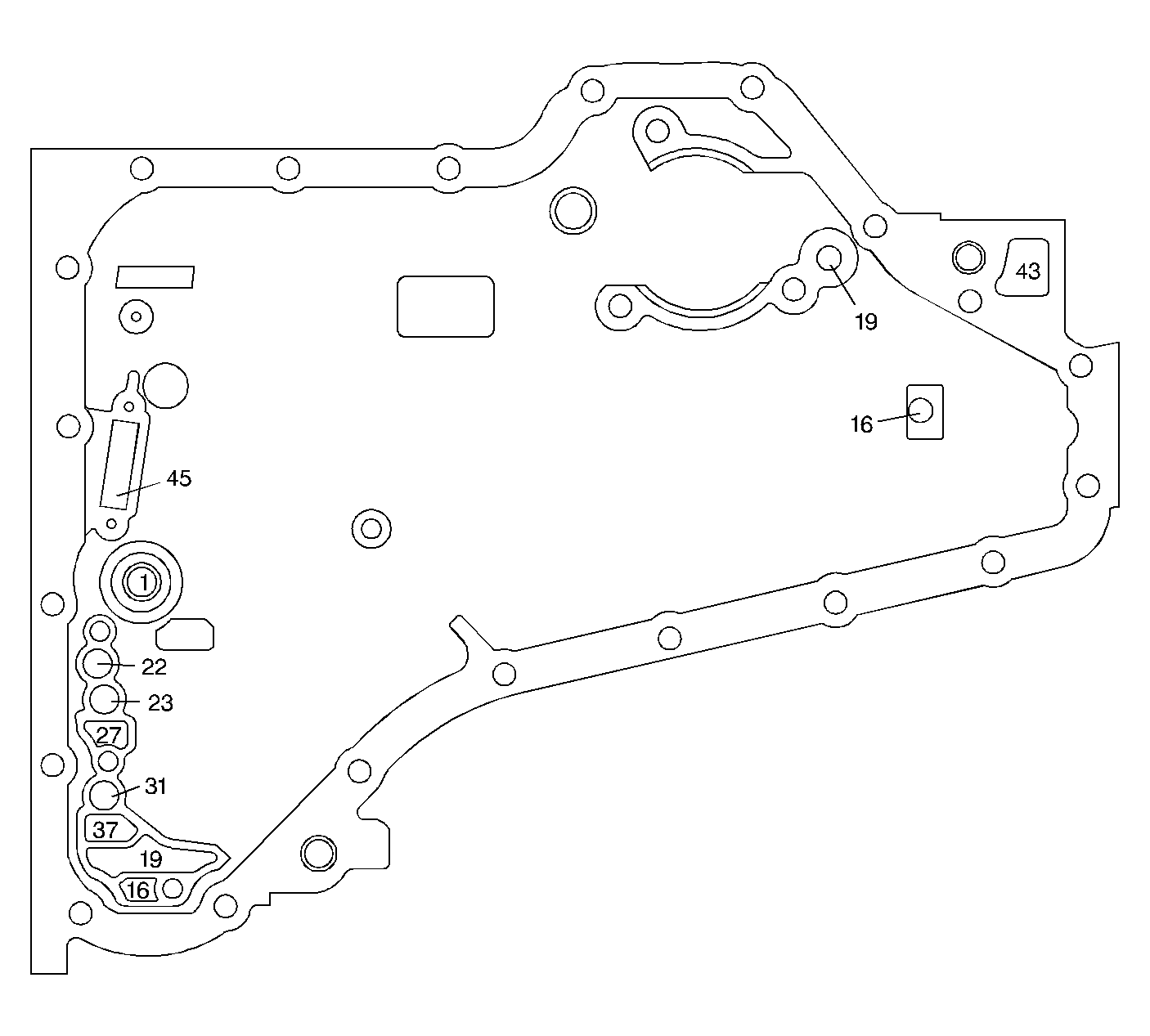

Fig 17: Case Fluid Passages (Bottom)
GM54161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suction
16 Lube
16 Lube
19 Forward Servo
19 Forward Servo
22 1-2 Accumulator
23 2-3 Accumulator
27 2nd Clutch
31 3rd Clutch
37 Manual 2-1 Servo
43 Casting Void
45 Thermo Element Exhaust

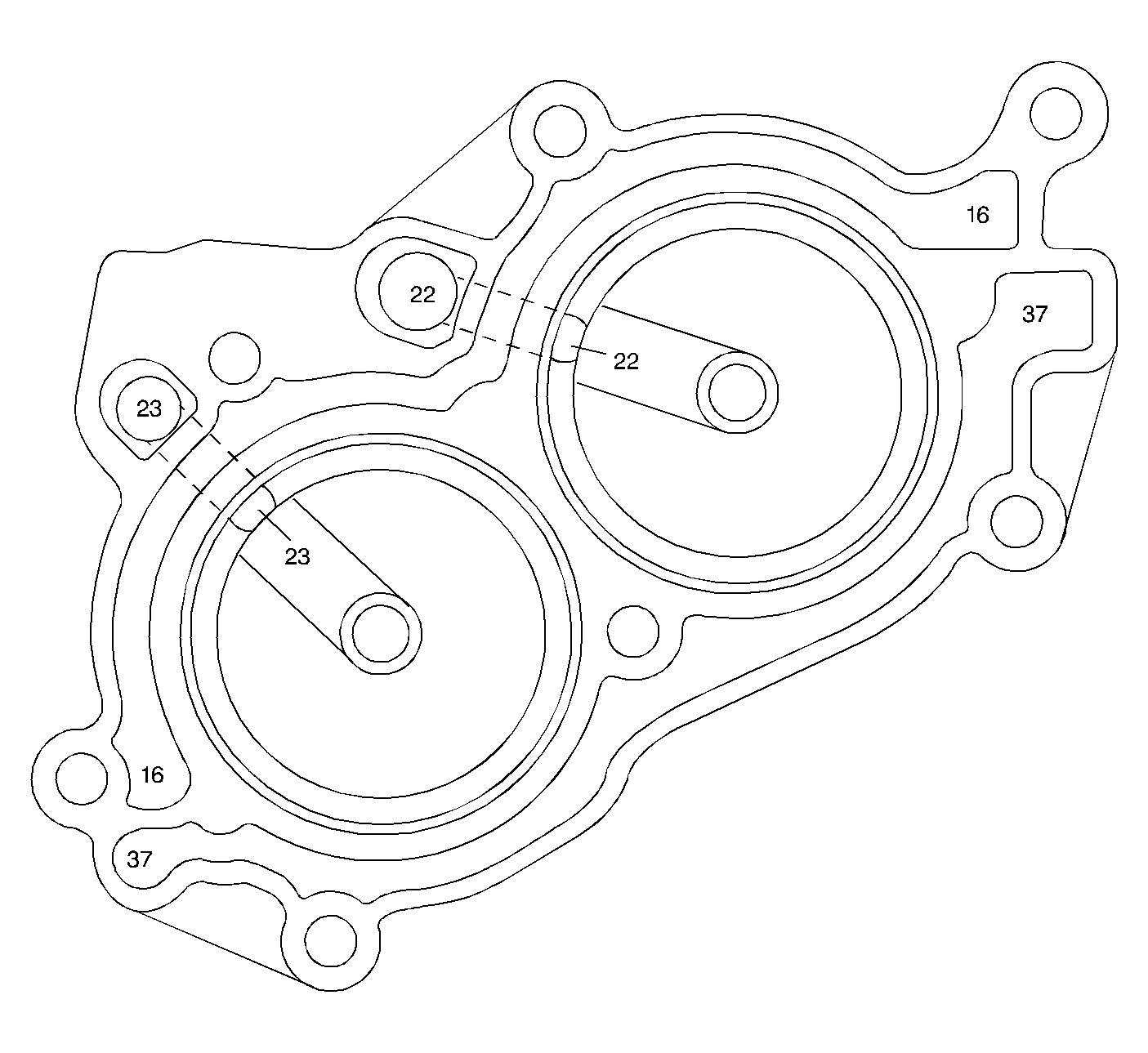

Fig 18: 1-2 and 2-3 Accumulator Housing Fluid Passages
GM54167Courtesy of GENERAL MOTORS CORP.
Callout Component Name
16 Lube
16 Lube
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
37 Manual 2-1 Servo
37 Manual 2-1 Servo

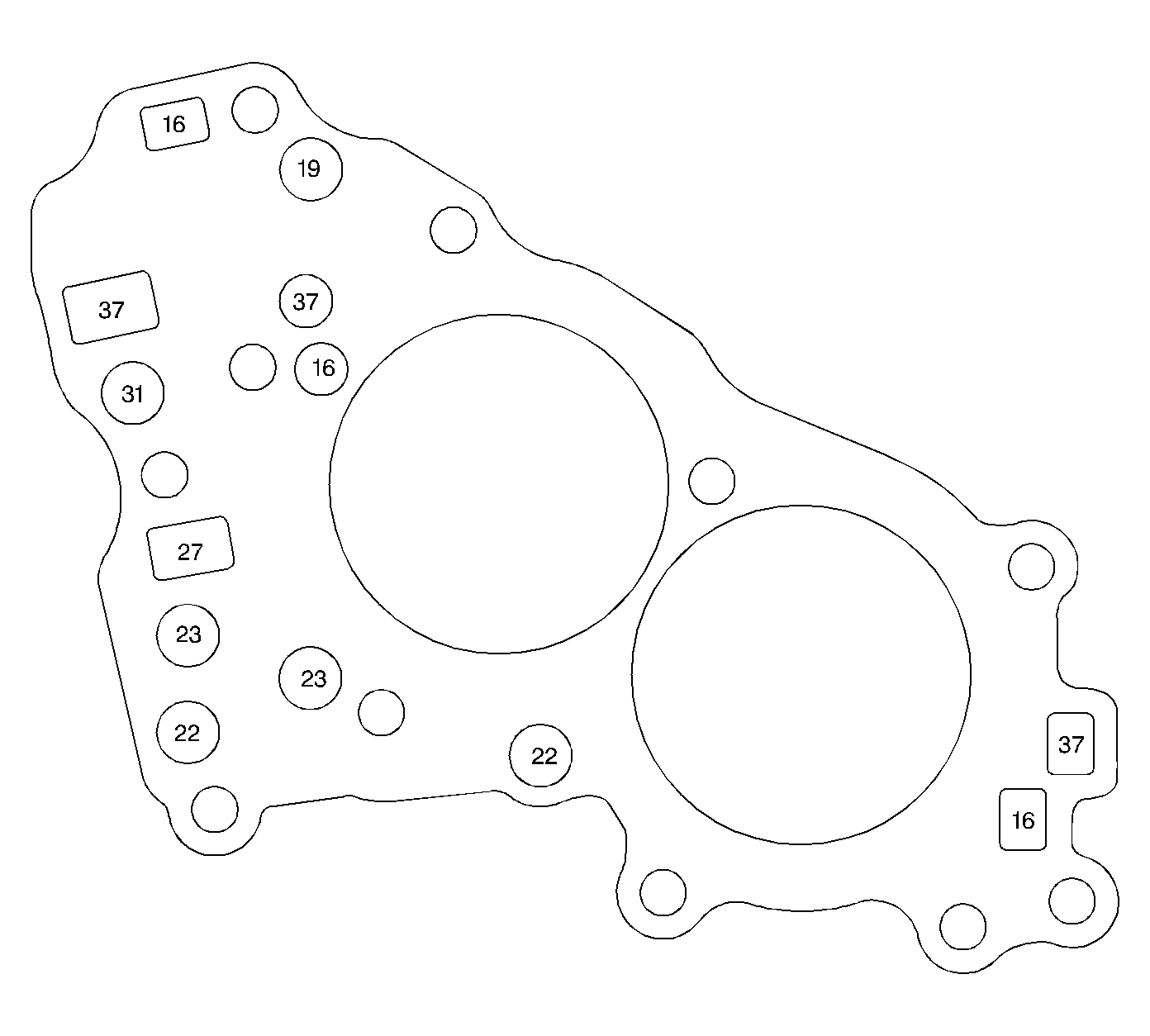

Fig 19: Accumulator Cover Spacer Plate Fluid Passages
GM54164Courtesy of GENERAL MOTORS CORP.
Callout Component Name
16 Lube
16 Lube
16 Lube
19 Forward Servo
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
23 2-3 Accumulator
27 2nd Clutch
31 3rd Clutch
37 Manual 2-1 Servo
37 Manual 2-1 Servo
37 Manual 2-1 Servo

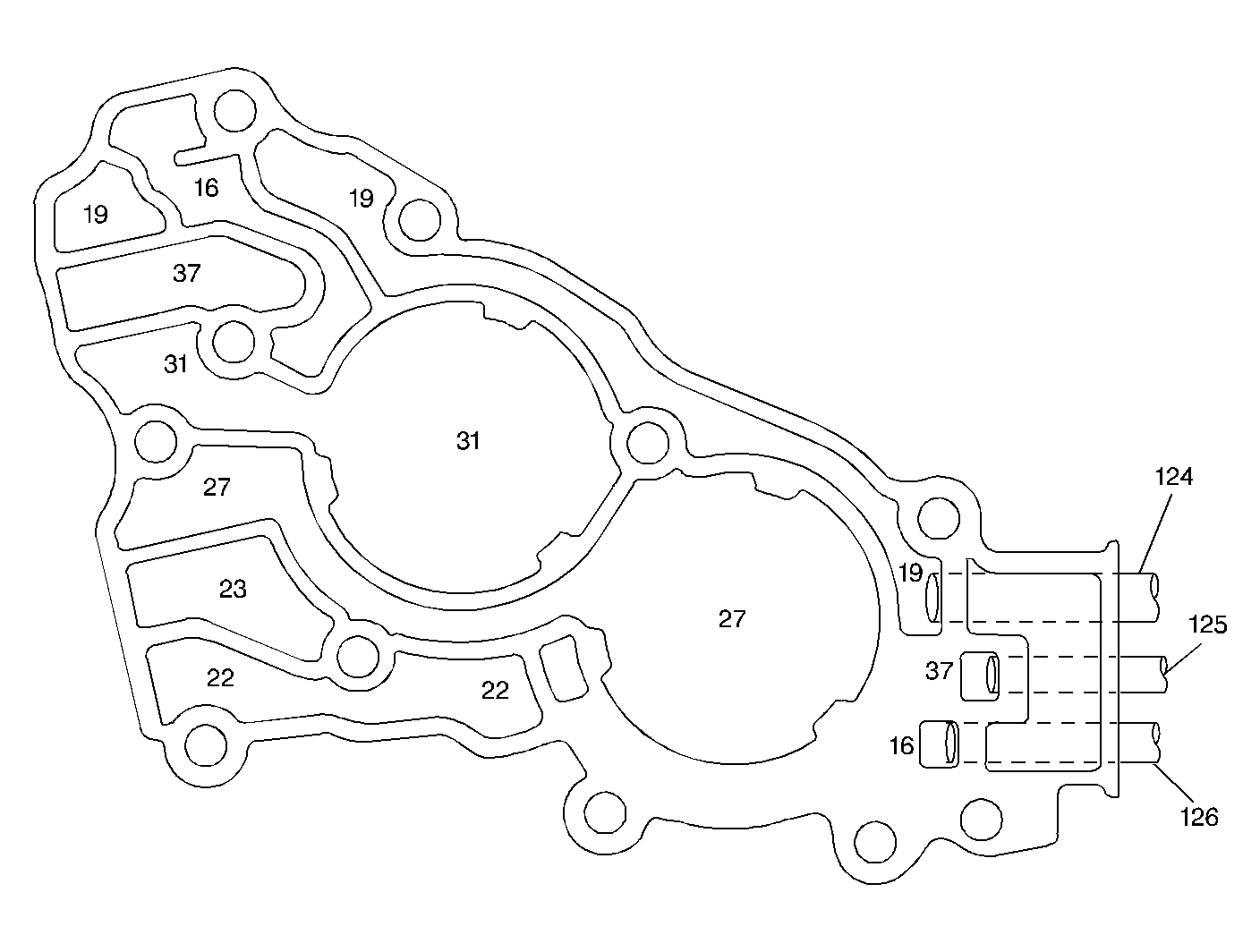

Fig 20: Accumulator Cover Fluid Passages
GM54163Courtesy of GENERAL MOTORS CORP.
Callout Component Name
16 Lube
16 Lube
19 Forward Servo
19 Forward Servo
19 Forward Servo
22 1-2 Accumulator
22 1-2 Accumulator
23 2-3 Accumulator
27 2nd Clutch
27 2nd Clutch
31 3rd Clutch
31 3rd Clutch
37 Manual 2-1 Servo
37 Manual 2-1 Servo
124 Forward Band Servo Oil Pipe
125 Manual 2-1 Band Servo Oil Pipe
126 Lube Oil Pipe

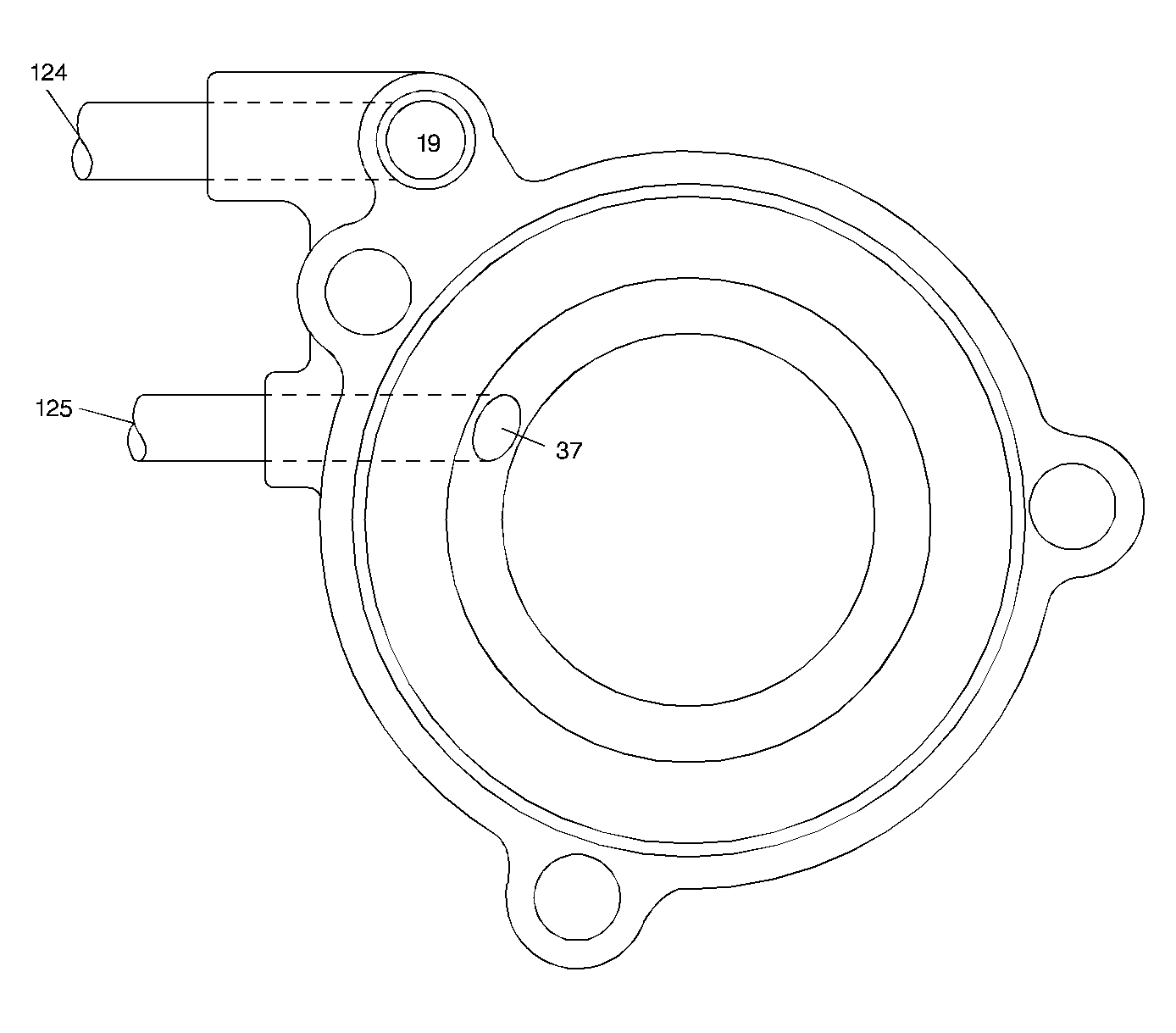

Fig 21: Manual 2-1 Band Servo Cover Fluid Passages
GM54168Courtesy of GENERAL MOTORS CORP.
Callout Component Name
19 Forward Servo
37 Manual 2-1 Servo
124 Forward Band Servo Oil Pipe
125 Manual 2-1 Band Servo Oil Pipe
scientia non olet · About LEMON Manuals
