Door Control Module Schematics

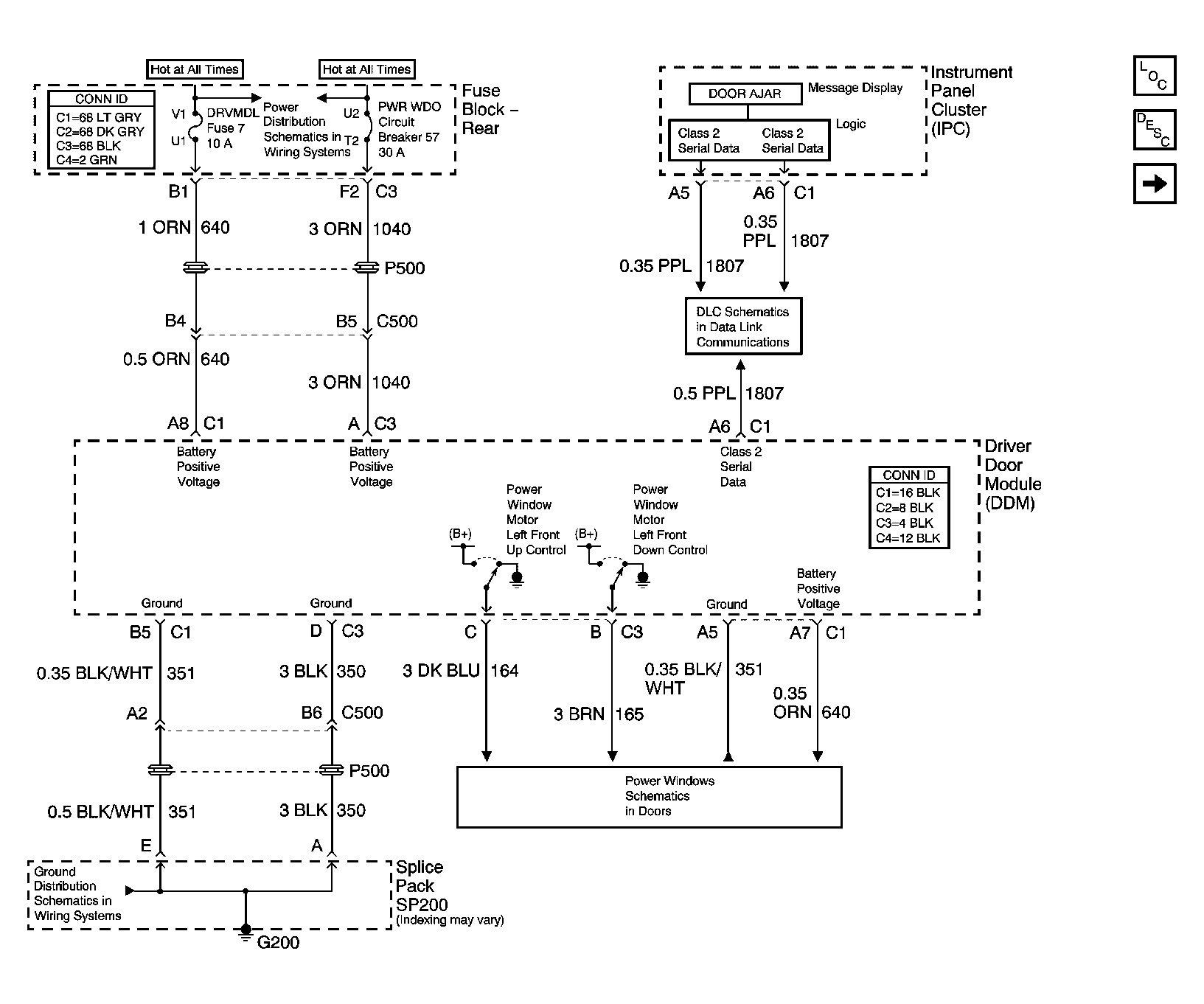

Fig 1: Door Control Module Schematic (DDM Power and Ground)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Door Control Module Schematic (PDM Power and Ground)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Control Module Schematic (DDM Inputs/Outputs)

Courtesy of GENERAL MOTORS CORP.

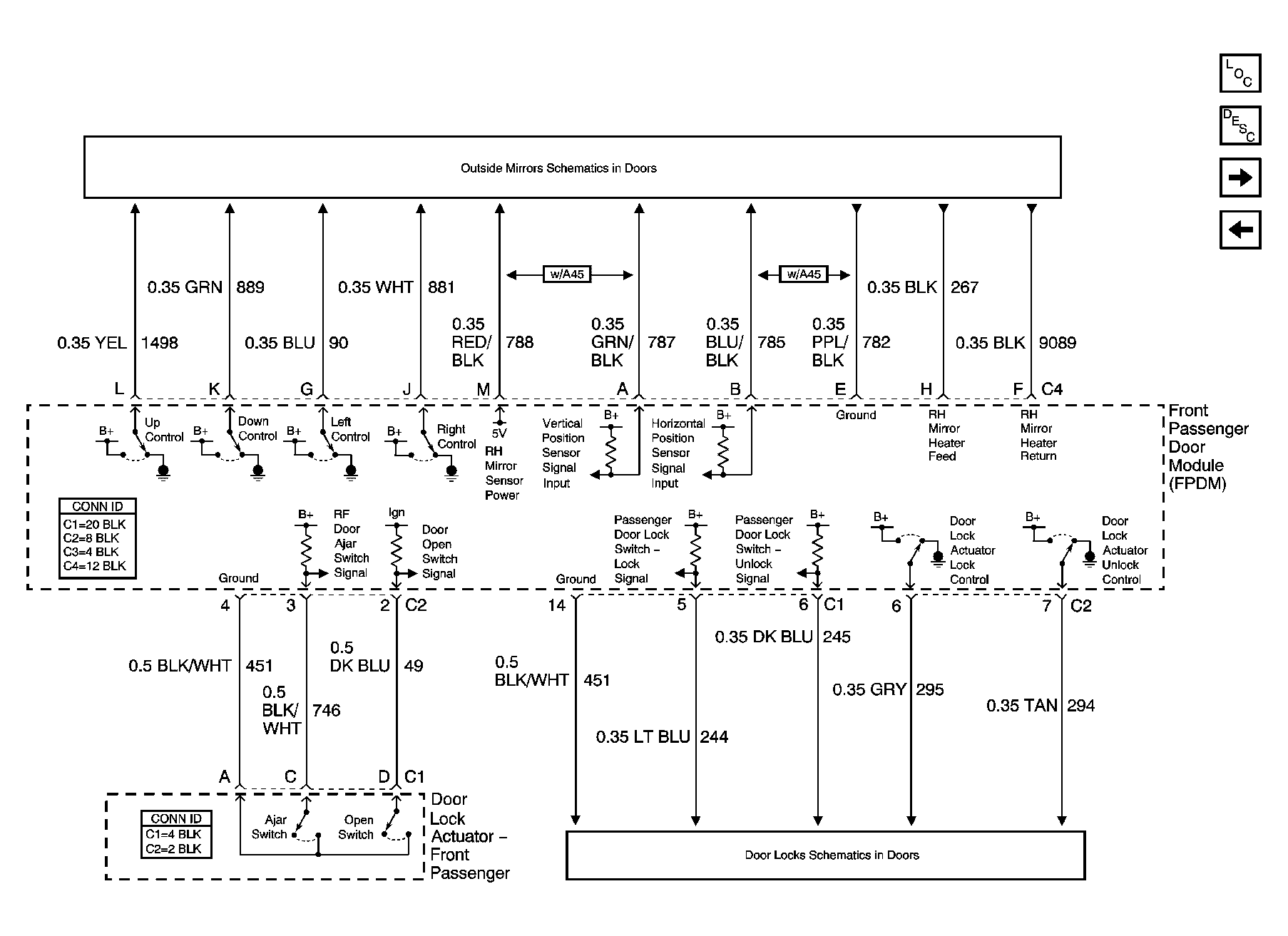

Fig 4: Door Control Module Schematic (PDM Inputs/Outputs)

Courtesy of GENERAL MOTORS CORP.

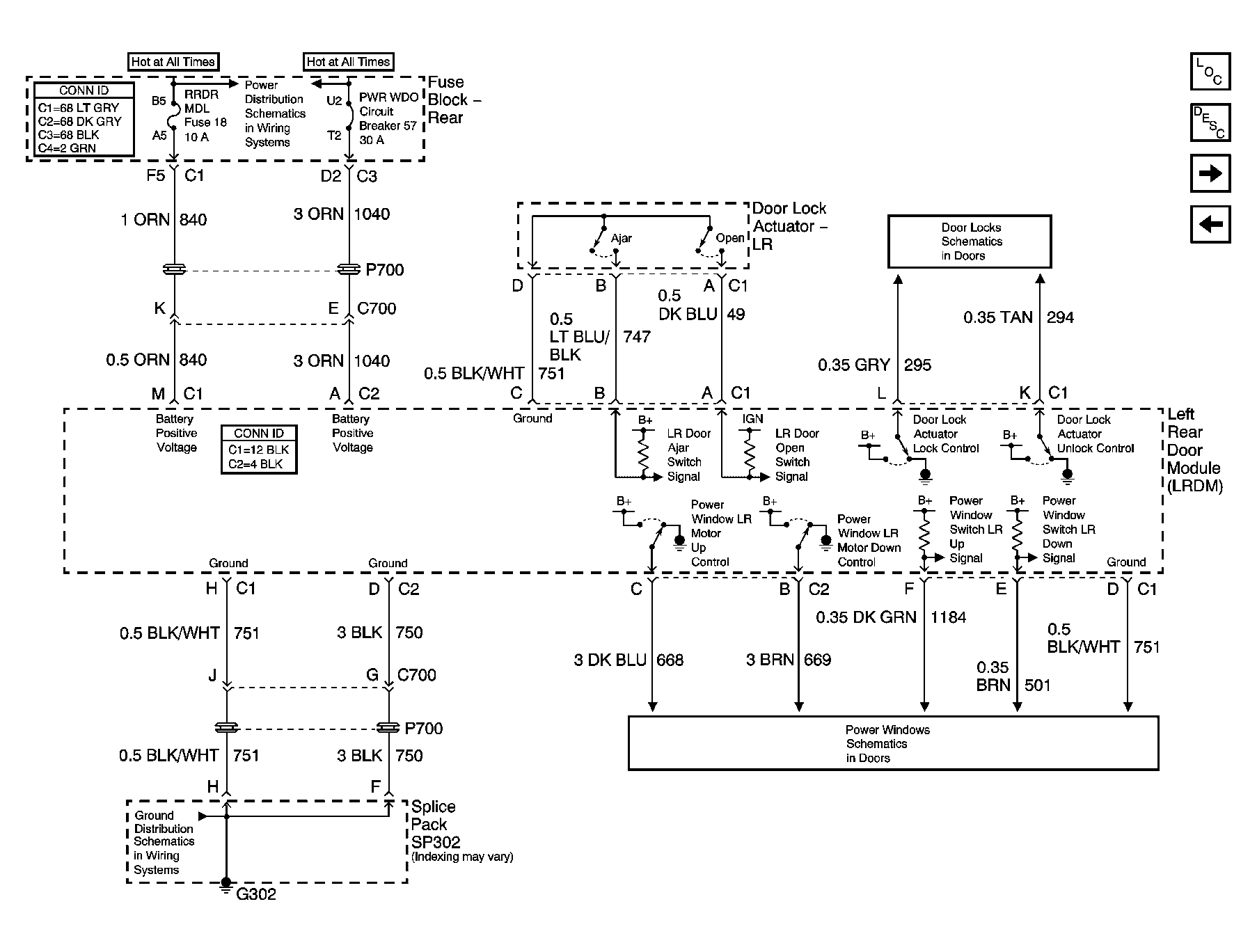

Fig 5: Door Control Module Schematic (LRDM)

Courtesy of GENERAL MOTORS CORP.

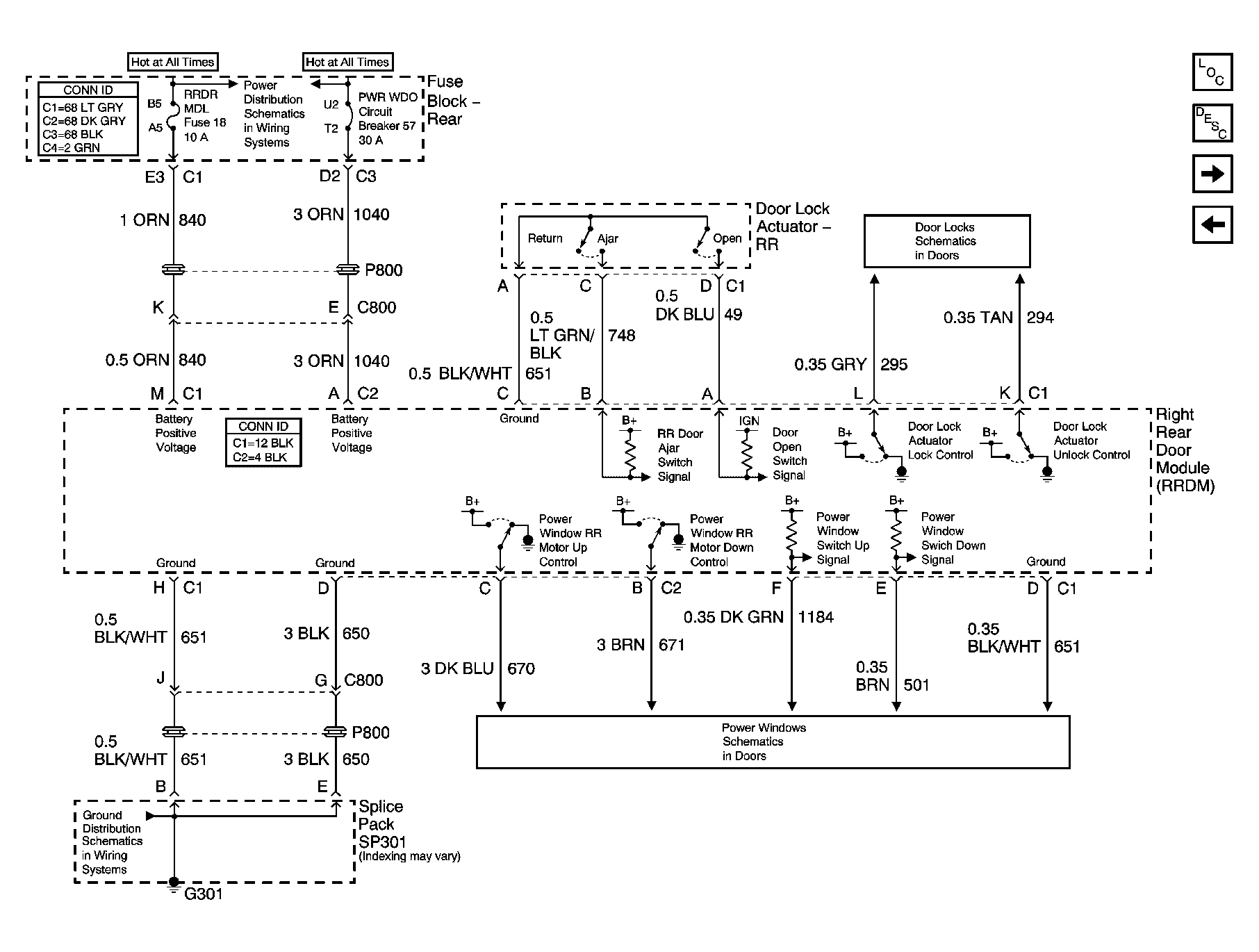

Fig 6: Door Control Module Schematic (RRDM)

Courtesy of GENERAL MOTORS CORP.

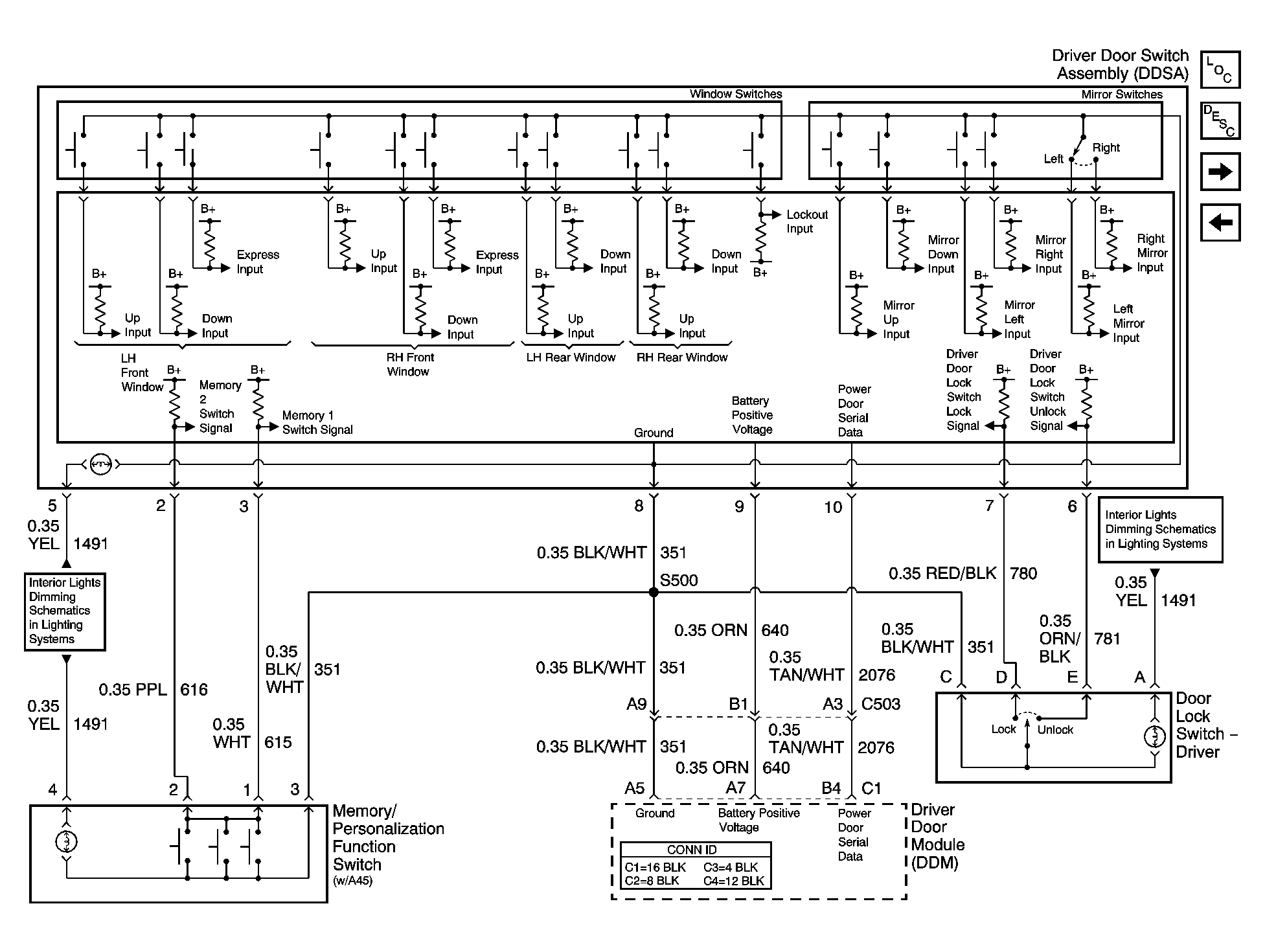

Fig 7: Door Control Module Schematic (Driver Door Switch Assembly)

Courtesy of GENERAL MOTORS CORP.

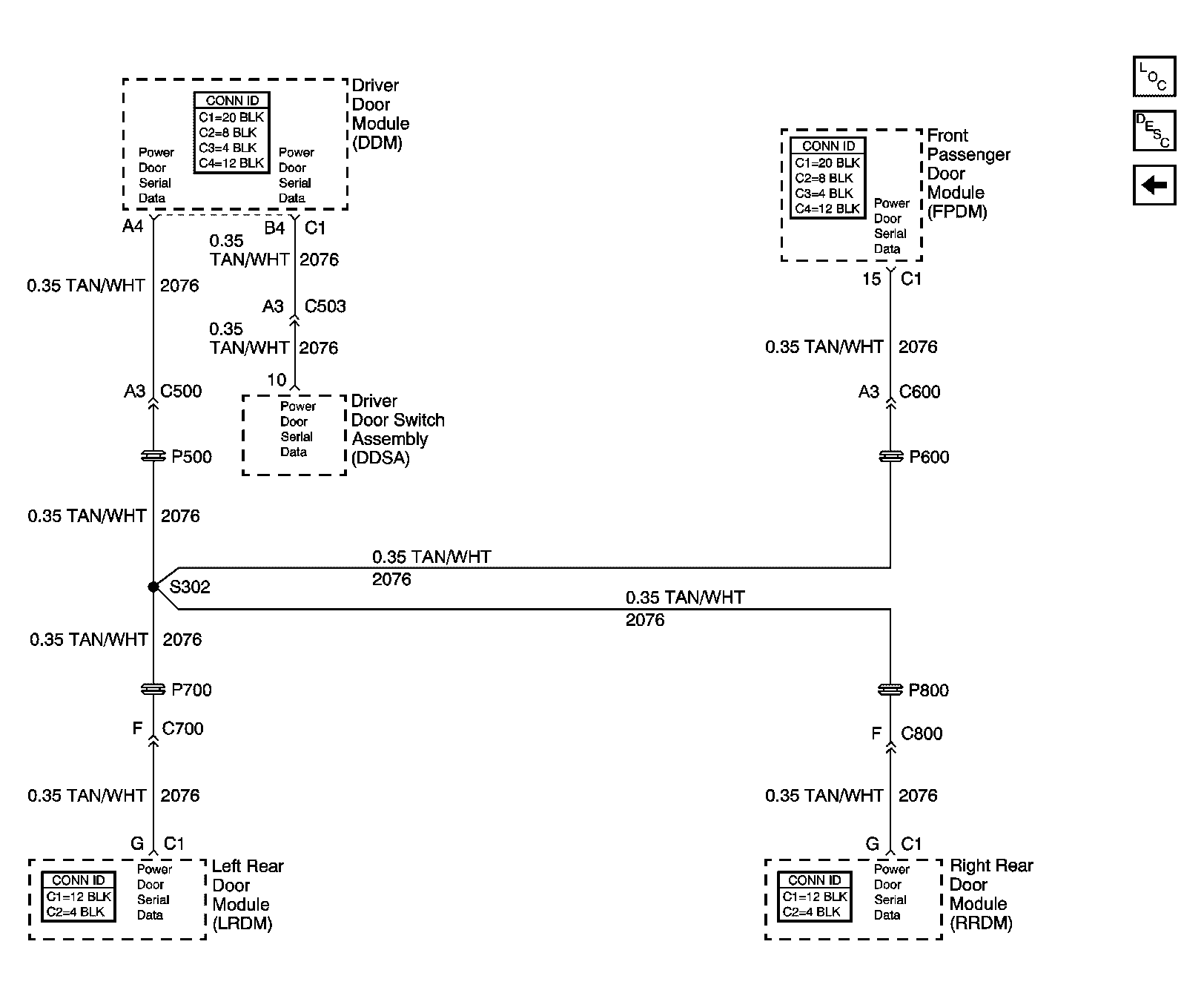

Fig 8: Door Control Module Schematic (Simple Bus Interface)

Courtesy of GENERAL MOTORS CORP.
