ABS Schematics

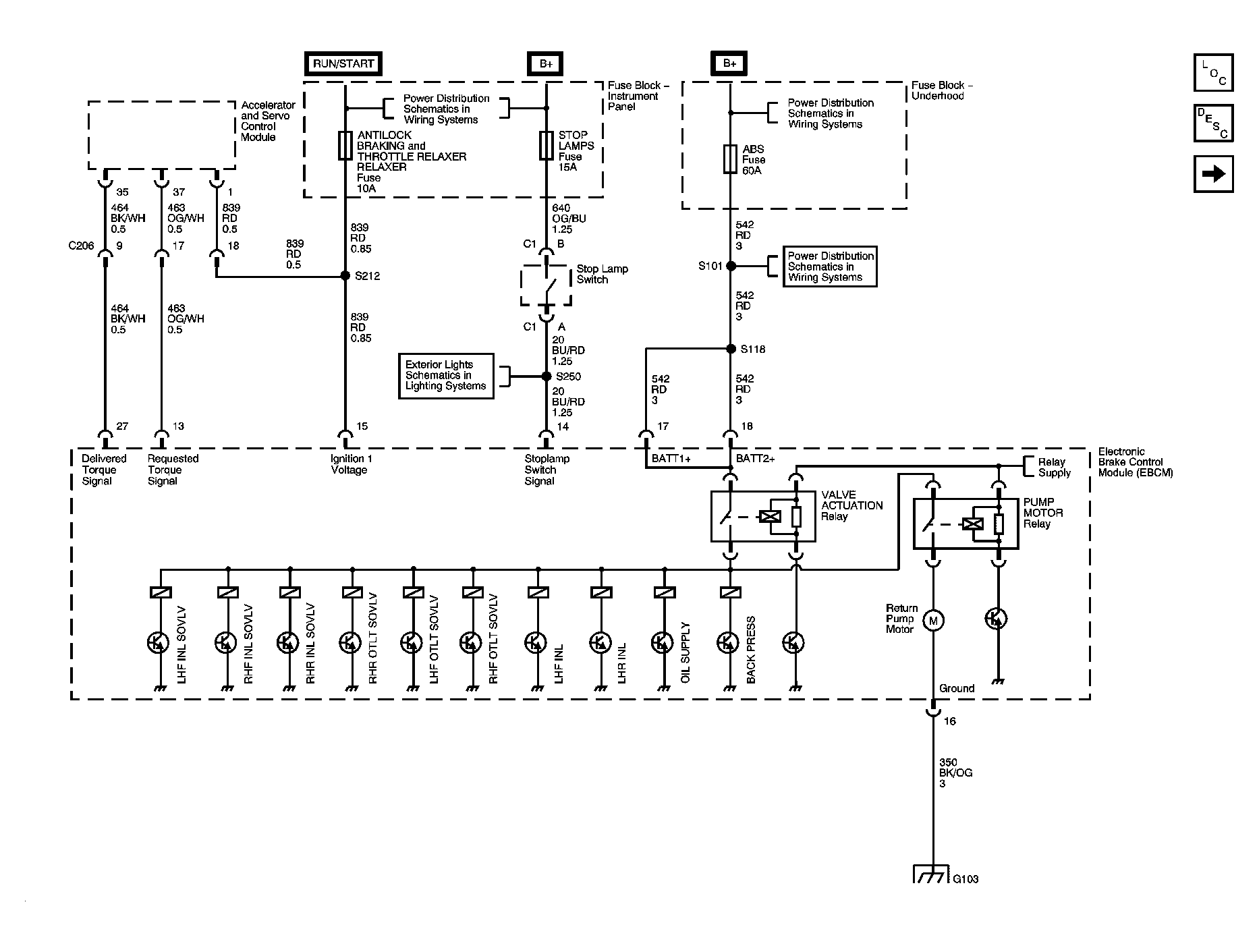

Fig 1: Electronic Brake Control Module (EBCM) Power & Ground, Accelerator & Servo Control Module Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: Throttle Relaxer System Schematics

Courtesy of GENERAL MOTORS CORP.

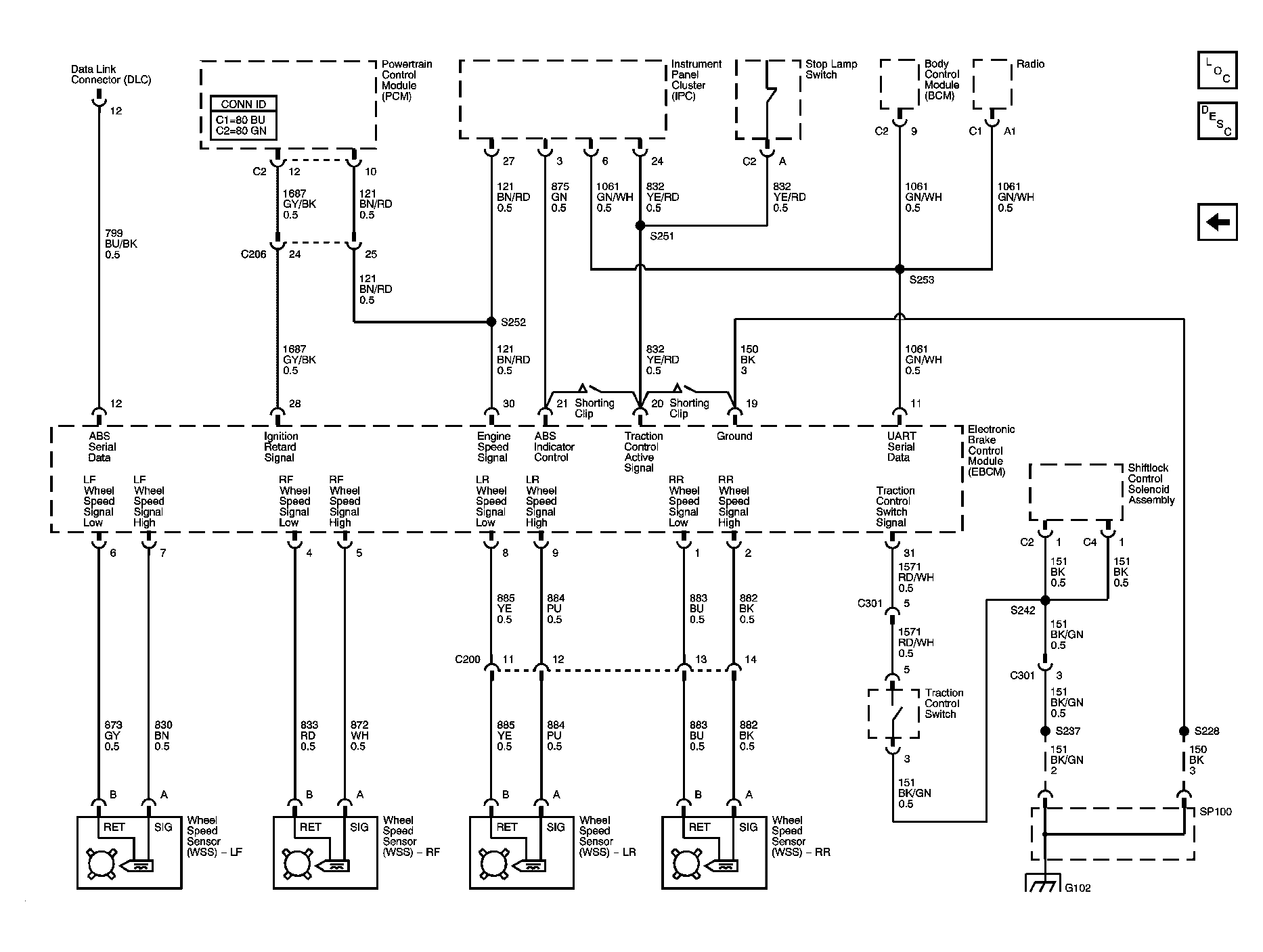

Fig 3: Electronic Brake Control Module (EBCM), Wheel Speed Sensors, DLC, ABS Indicator Schematics

Courtesy of GENERAL MOTORS CORP.
