Memory Positioning Module: Diagrams

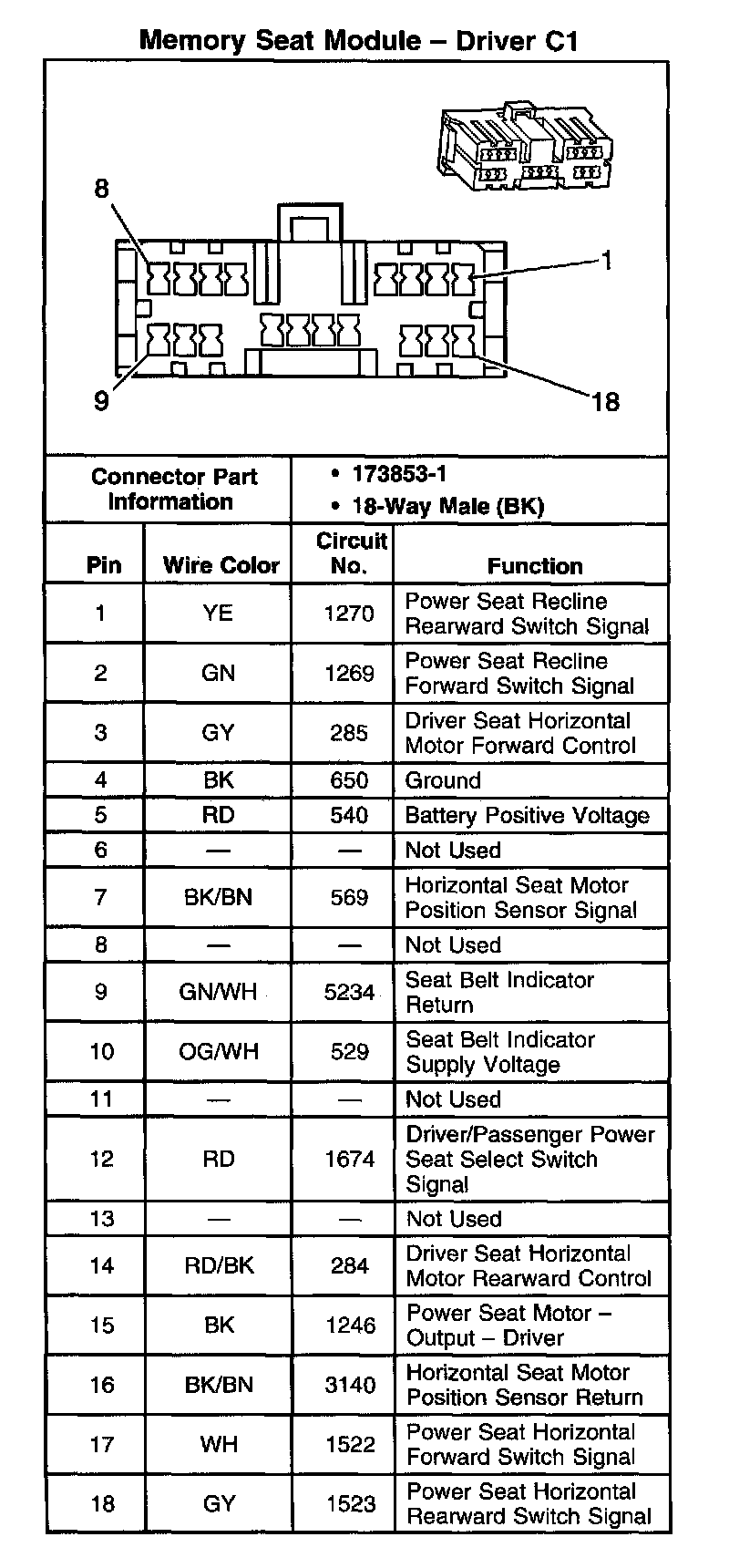

Memory Seat Module - Driver C1:

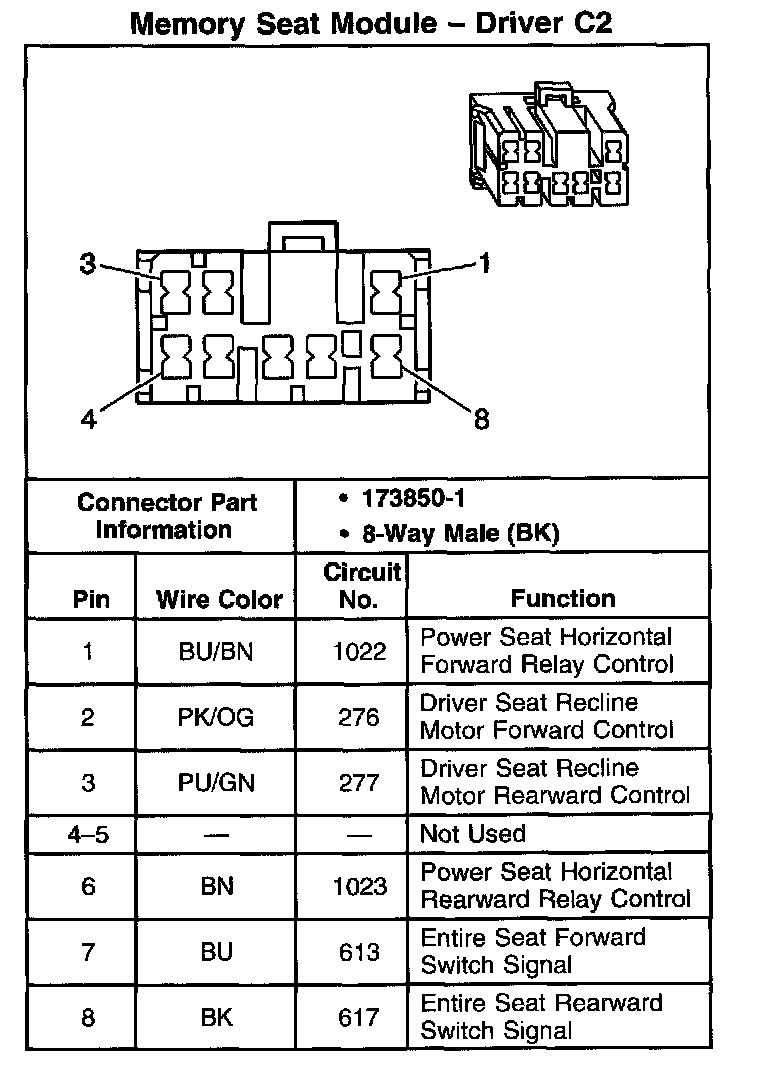

Memory Seat Module - Driver C2:

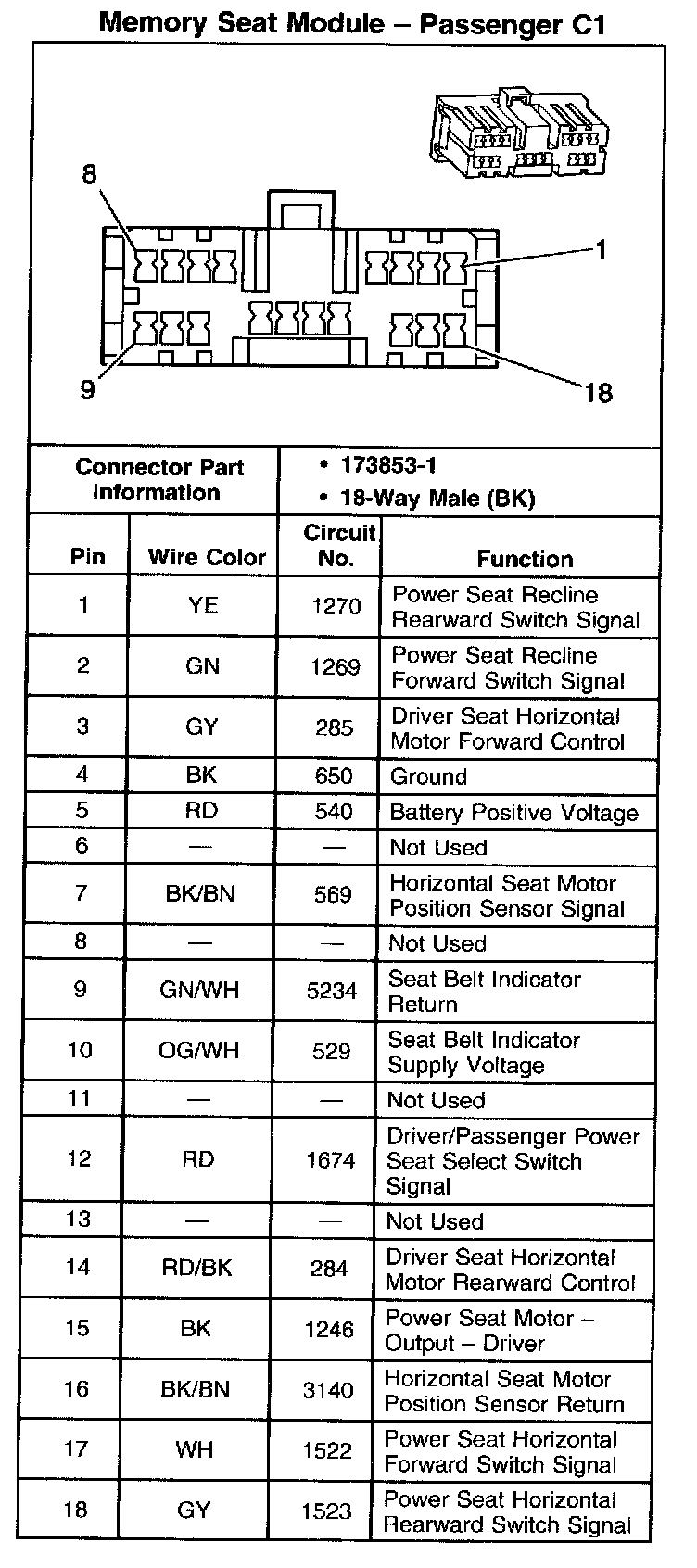

Memory Seat Module - Passenger C1:

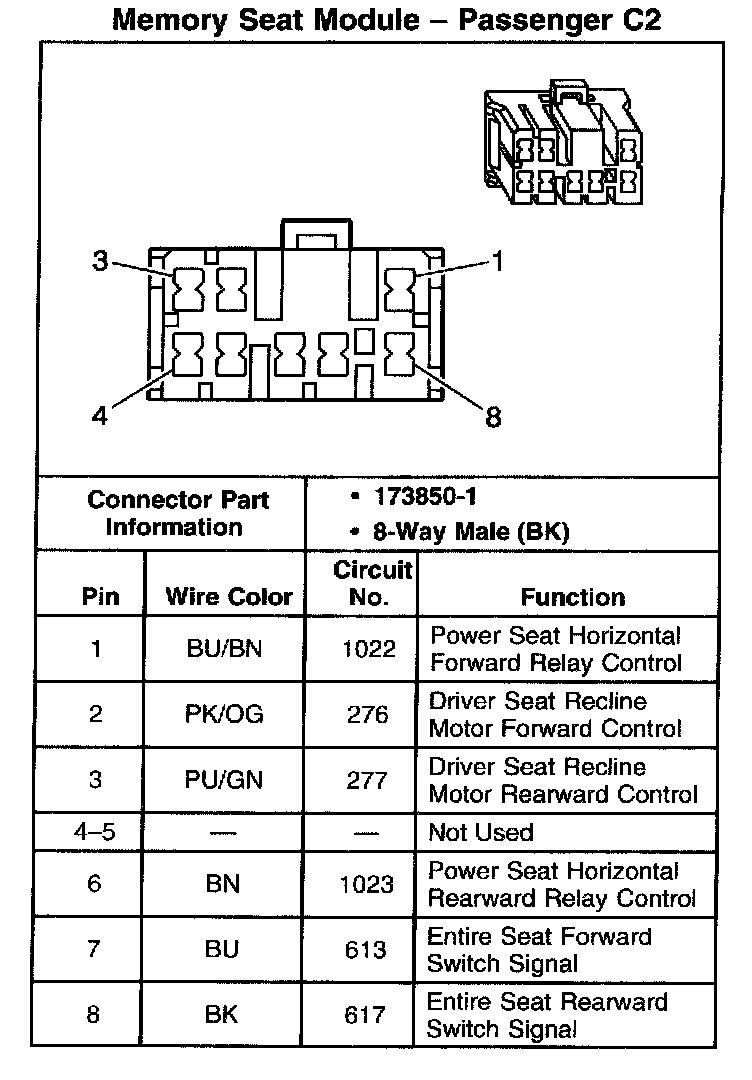

Memory Seat Module - Passenger C2:
