SIR ZONE IDENTIFICATION VIEWS

SIR Zone Identification Views:

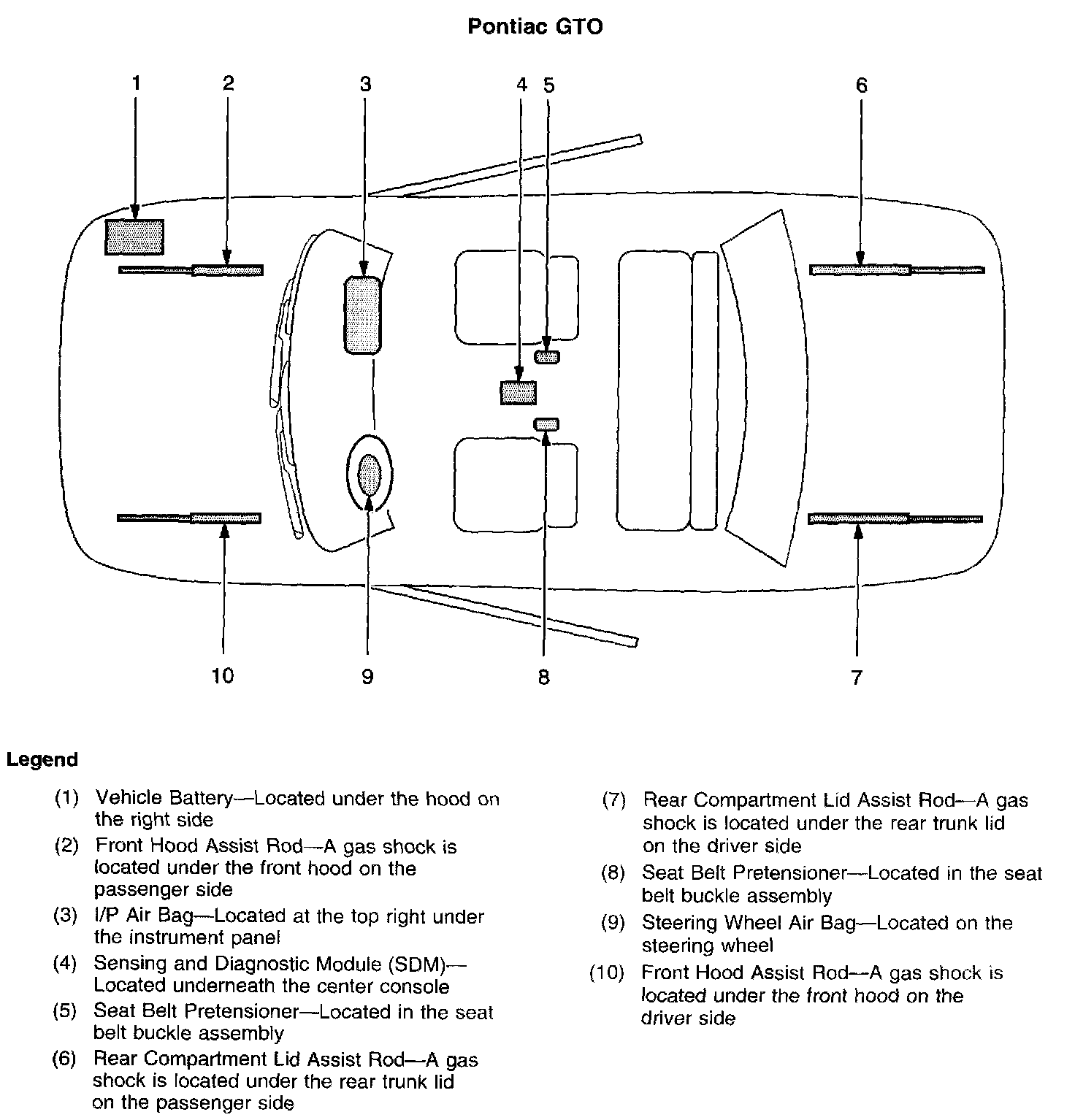

The SIR Zone Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle.

This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure refer to SIR Disabling and Enabling Zones.
