Fastener Tightening Specifications



Body Front End Fastener Tightening Specifications:

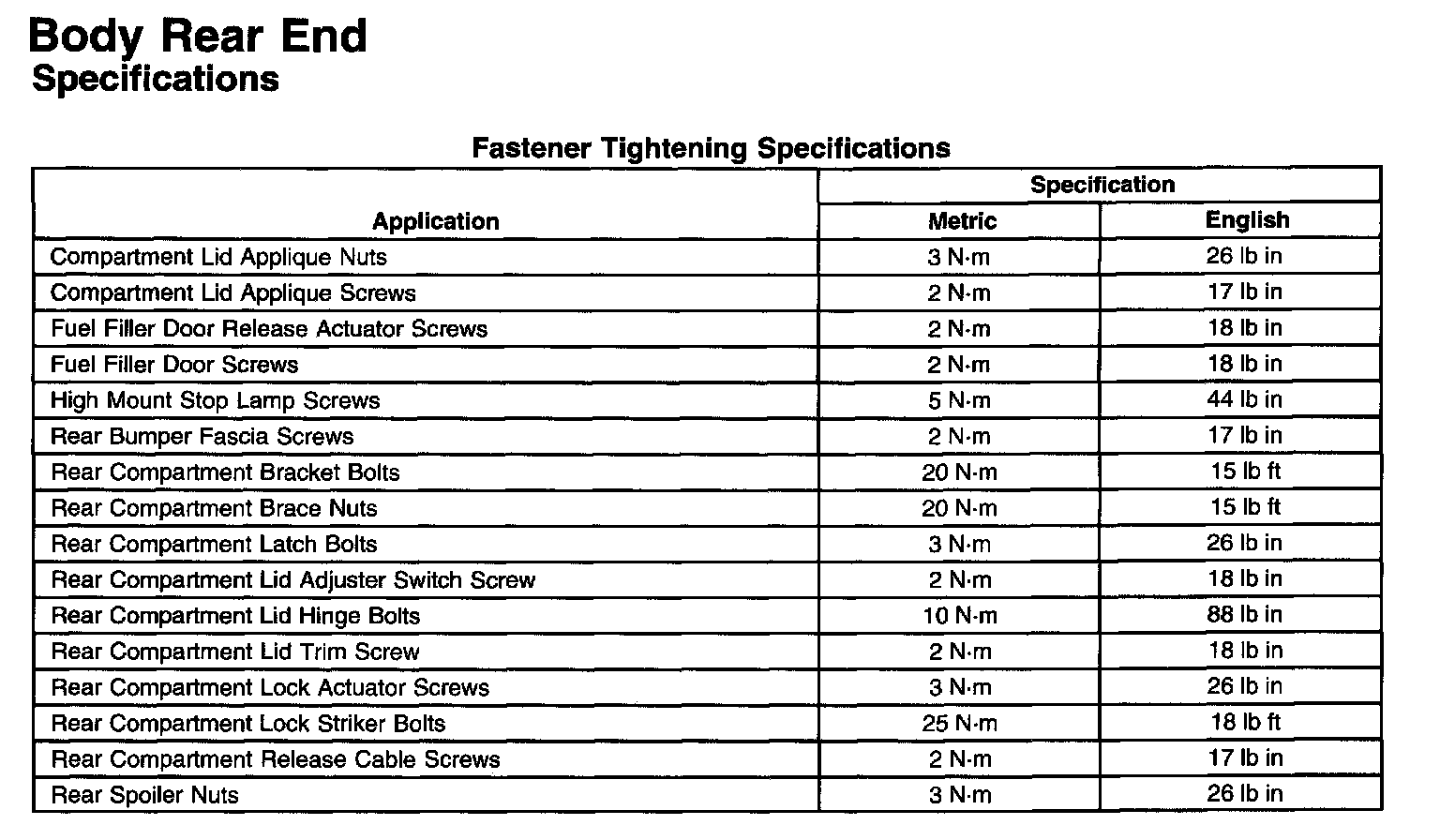

Body Rear End Fastener Tightening Specifications:

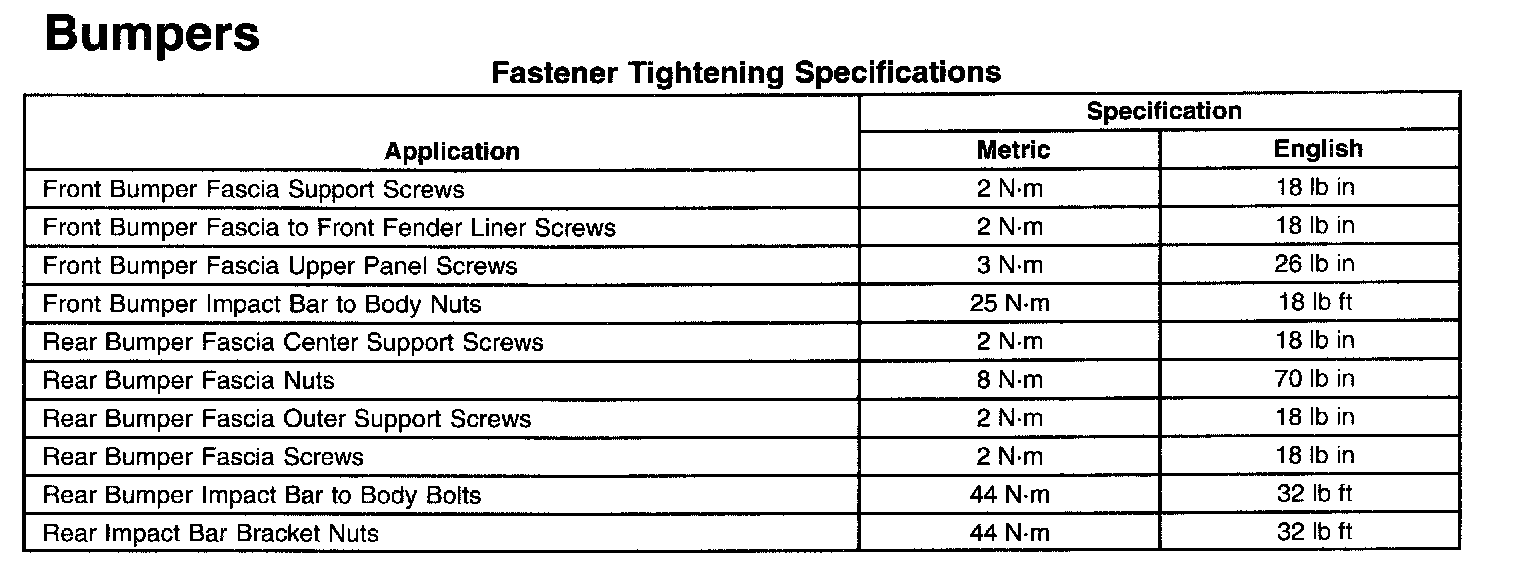

Bumper Fastener Tightening Specifications:



Doors Fastener Tightening Specifications:

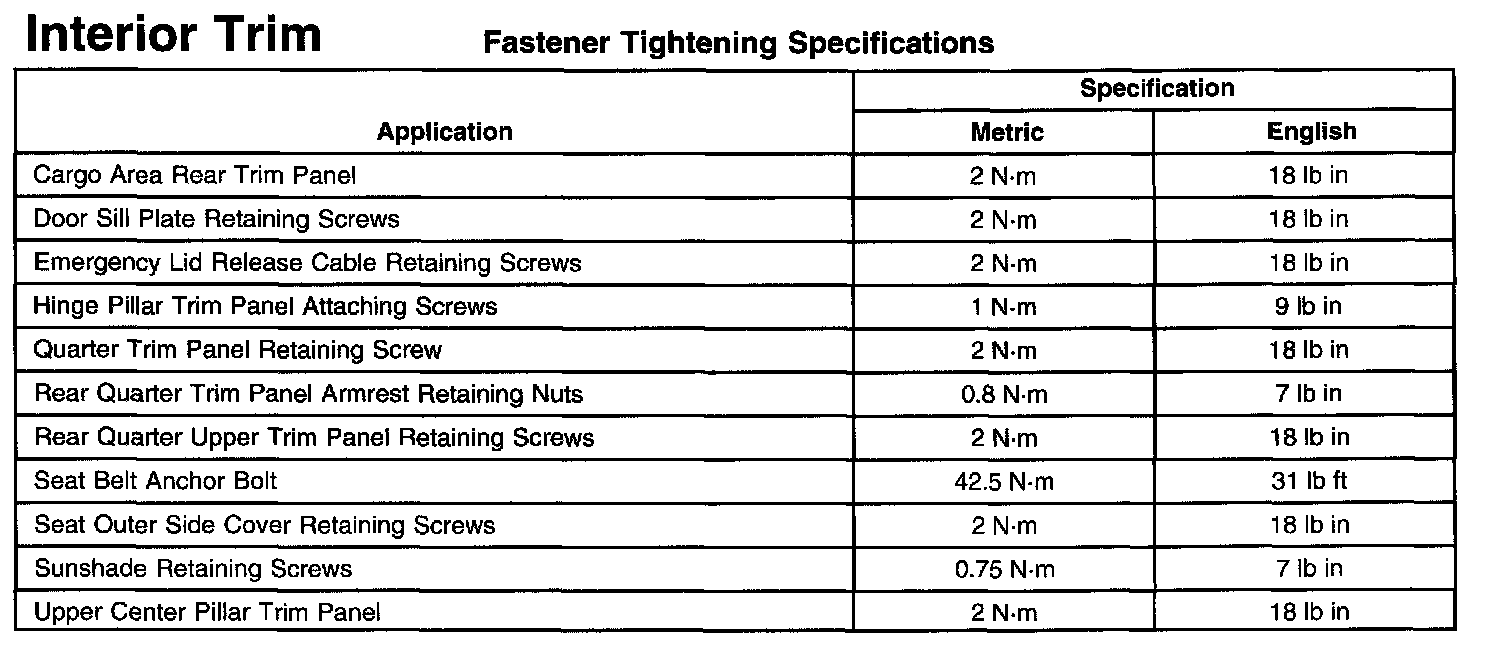

Interior Trim Fastener Tightening Specifications:
