Window Guide Replacement - Door

Window Guide Replacement - Door

Removal Procedure

1. Raise the window assembly.
2. Remove the inside door handle assembly, if required. Refer to Door Handle Replacement - Inside (Door Handle Replacement) .
3. Remove the door trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .




4. Remove the 3 door brackets (1) from the door inner panel (3) by levering out the center pin of the bracket.
5. Carefully, peel off the door water shield (2) upwards to gain access to the window guide.

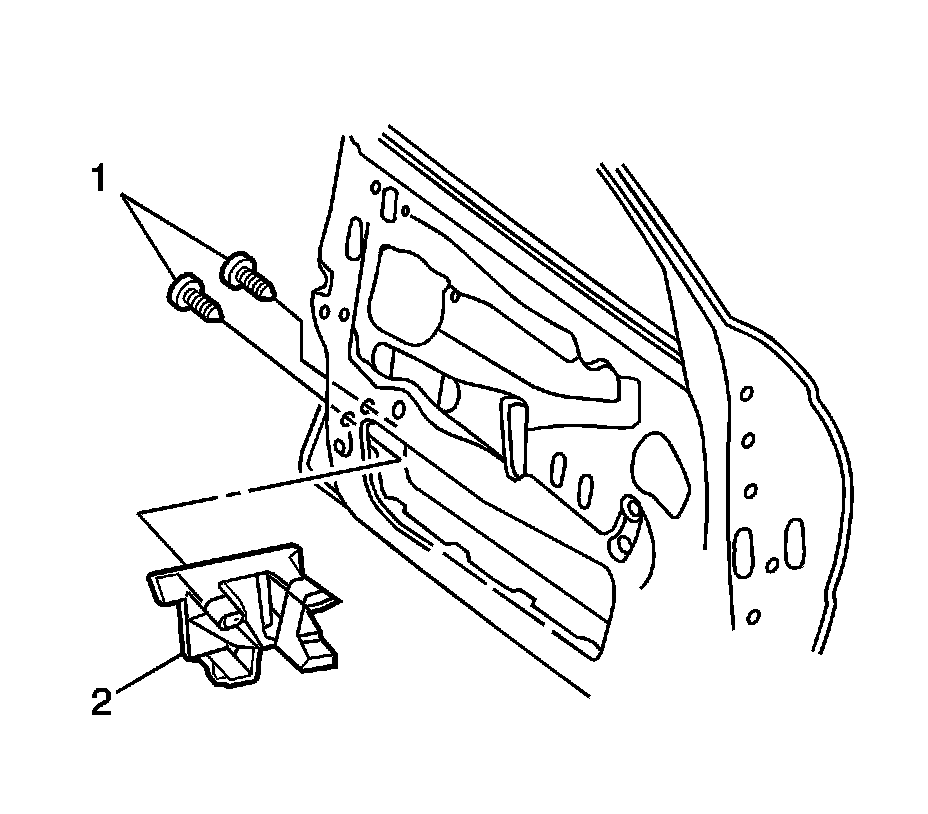

6. Remove the 2 screws (1) securing the window guide (2)
7. Remove the window guide (2) through the opening in the door inner panel.



Installation Procedure





1. Position the window guide (2) through the opening in the door inner panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the 2 screws (1) to the window guide.

Tighten the 2 screws to 2 N.m (17 lb in).





3. Reposition and secure the door water shield (2) to the door inner panel (3).
4. Install the3 door brackets (1) to the inner door panel (3).
5. Install the door trim panel. Refer to Trim Panel Replacement - Door (Service and Repair) .
6. Install the inside door handle assembly, if removed. Refer to Door Handle Replacement - Inside (Door Handle Replacement) .
