ABS Schematics

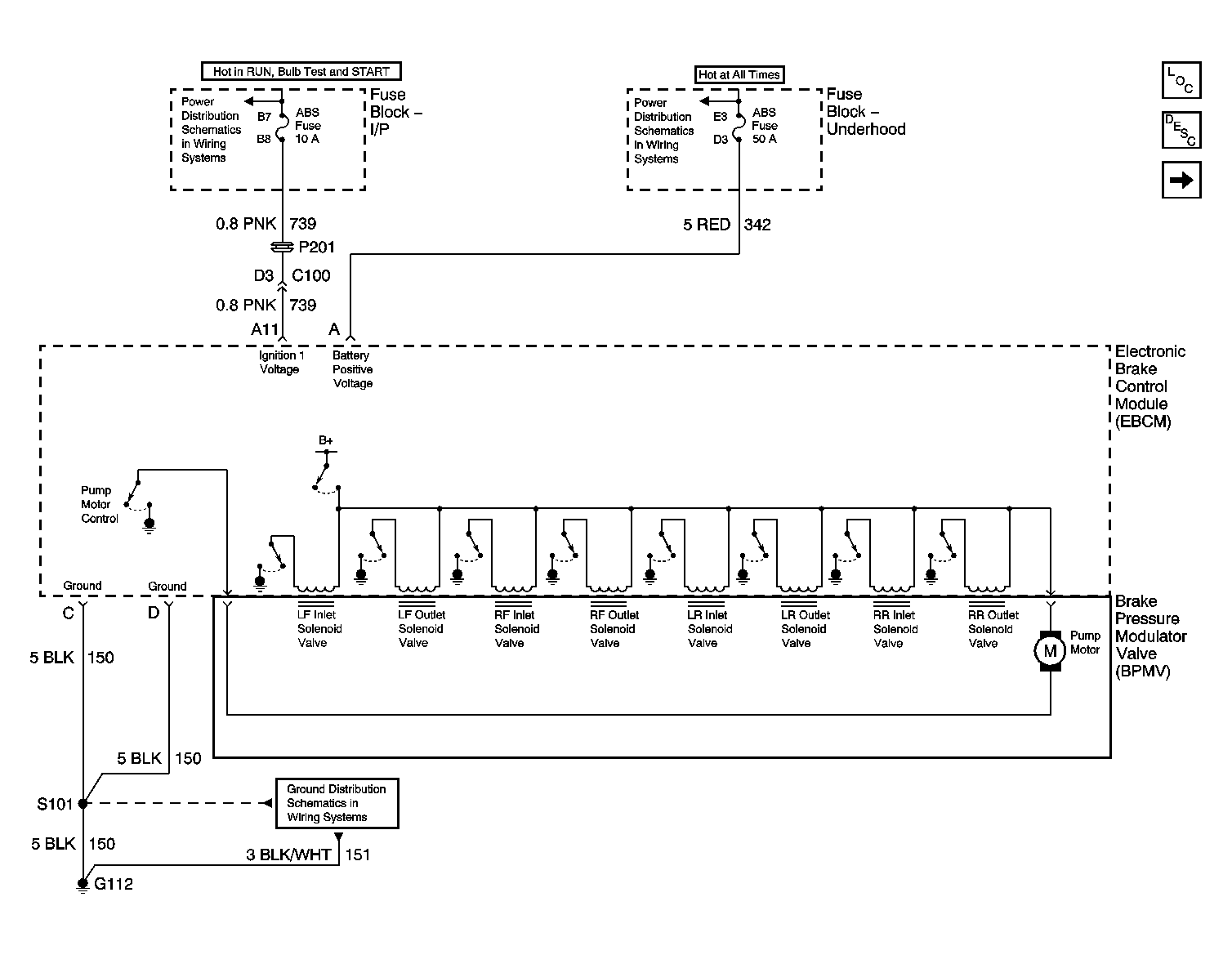

Fig 1: Module Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

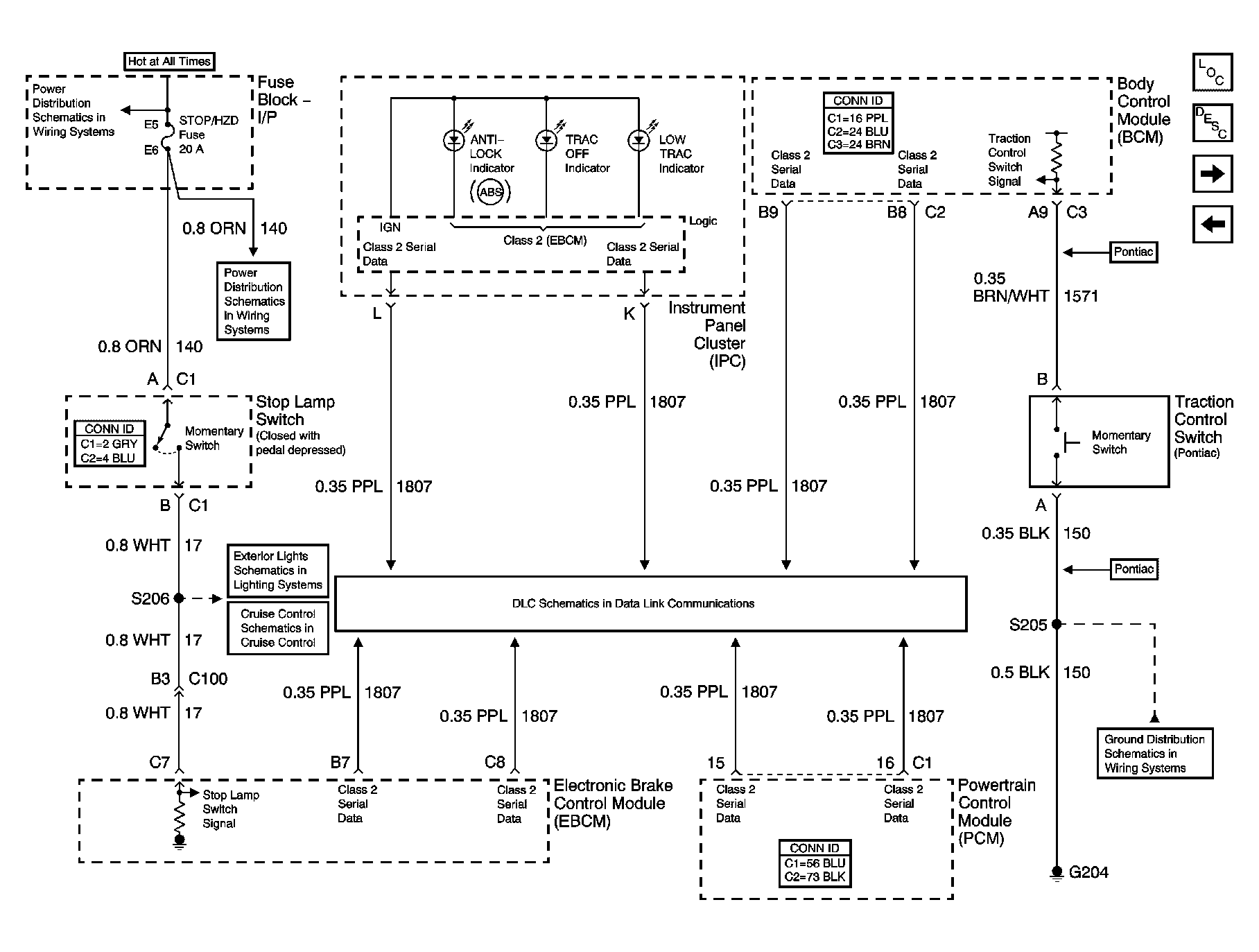

Fig 2: Indicators & Switches Schematic

Courtesy of GENERAL MOTORS CORP.

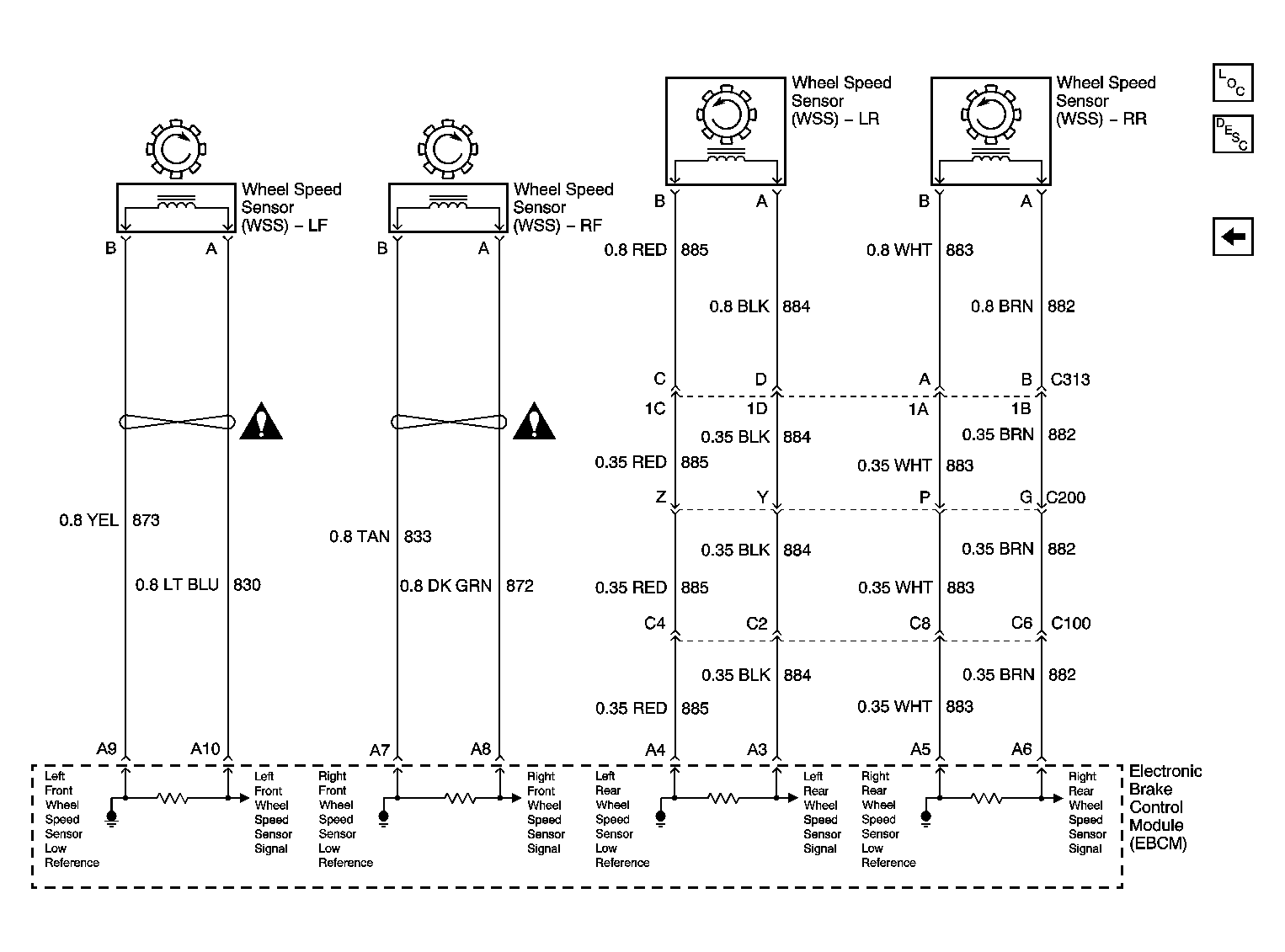

Fig 3: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
