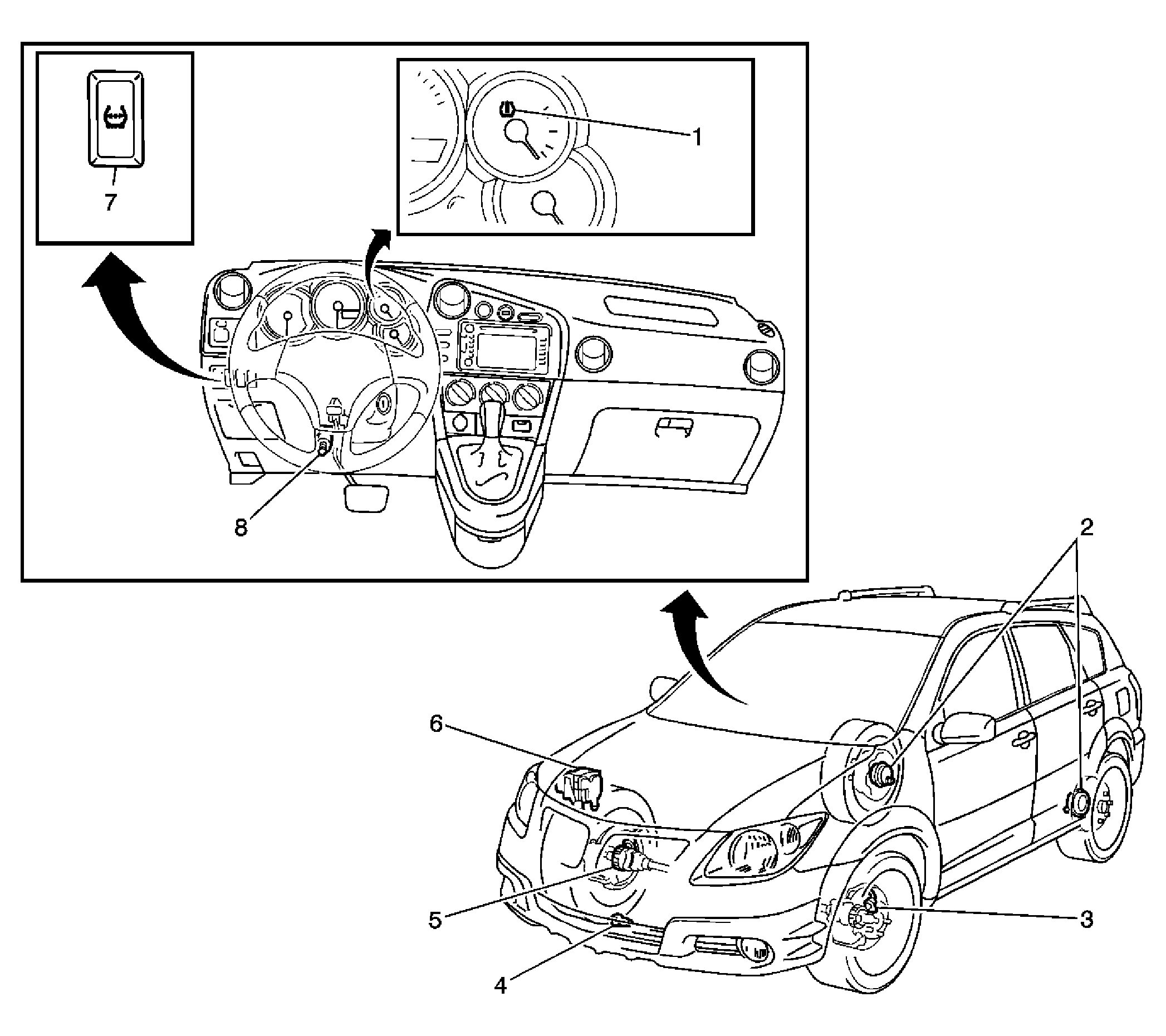

Tire Pressure Monitoring System Component Views
WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Low Tire Pressure Warning Light |
| 2 |
Speed Sensors |
| 3 |
Speed Sensor |
| 4 |
Ambient Temperature Sensor |
| 5 |
Speed Sensor |
| 6 |
Electronic Brake Control Module/Tire Pressure Monitor ECU |
| 7 |
Tire Pressure Warning Reset Switch |
| 8 |
Stop Lamp Switch |
