Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the power sunroof switch.
  2. Rotate the power sunroof switch back into the vehicle.
  3. Firmly push the power sunroof switch into the headliner until fully seated.

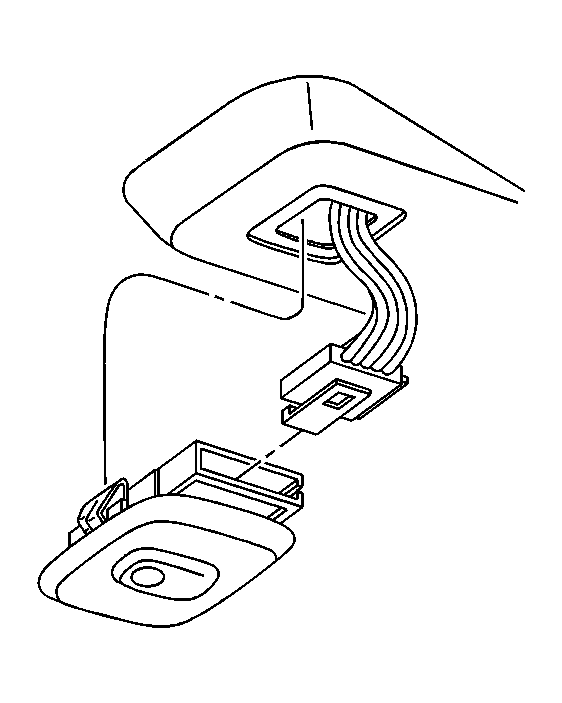

    4. Fig 1: Power Sunroof Switch & Electrical Connector (Without Overhead Console)
    GM311439Courtesy of GENERAL MOTORS CORP.
