Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hazard warning switch to the I/P cluster trim plate.
    2. Fig 1: Installing Hazard Warning Switch
    GM519460Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the hazard warning switch.
  3. Press the I/P cluster trim plate into the I/P trim pad, until all of the retainers are fully seated.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the I/P cluster trim plate screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

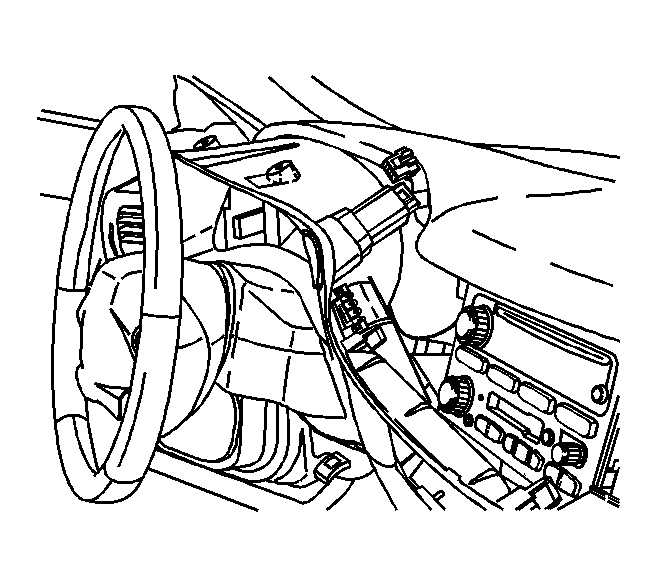

    5. Fig 2: Installing Access Covers From I/P Fuse Block
    GM813479Courtesy of GENERAL MOTORS CORP.
  5. For the Monte Carlo, install the left access cover to the I/P fuse block.

    For the Impala, install the right and the left access covers to the I/P fuse block.

  6. Install the steering column filler. Refer to Steering Column Filler Replacement in Instrument Panel, Gages, and Console.
  7. For the Monte Carlo, close the I/P compartment door.
  8. Reposition the steering wheel to the original position.
  9. If the vehicle is equipped with column shift, position the transaxle shift control indicator to Park.
  10. Install the bezel to the ignition lock cylinder.
    11. Fig 3: Ignition Lock Cylinder Bezel
    GM601131Courtesy of GENERAL MOTORS CORP.
  11. Release the parking brake.
