Removal Procedure

  1. Remove the steering column. Refer to Steering Column Replacement .
  2. Remove the steering column shrouds. Refer to Steering Column Trim Covers Replacement .

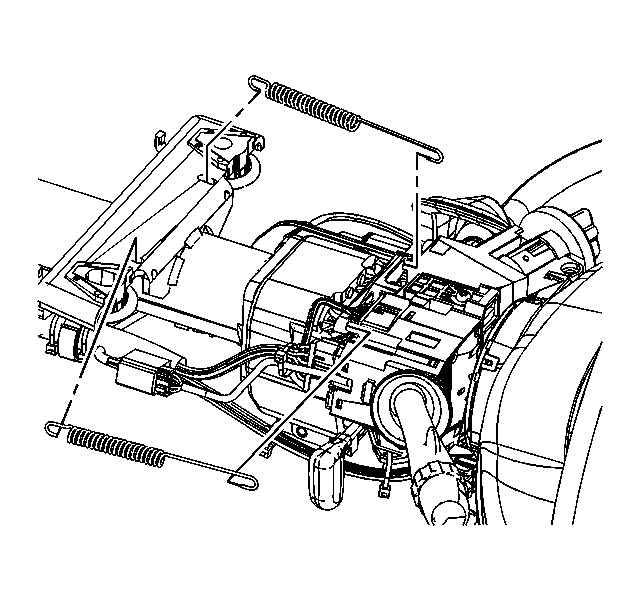

    3. Fig 1: Identifying Tilt Spring
    GM1536528Courtesy of GENERAL MOTORS CORP.
  3. Remove the tilt spring.
