Installation Procedure

NOTE: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.

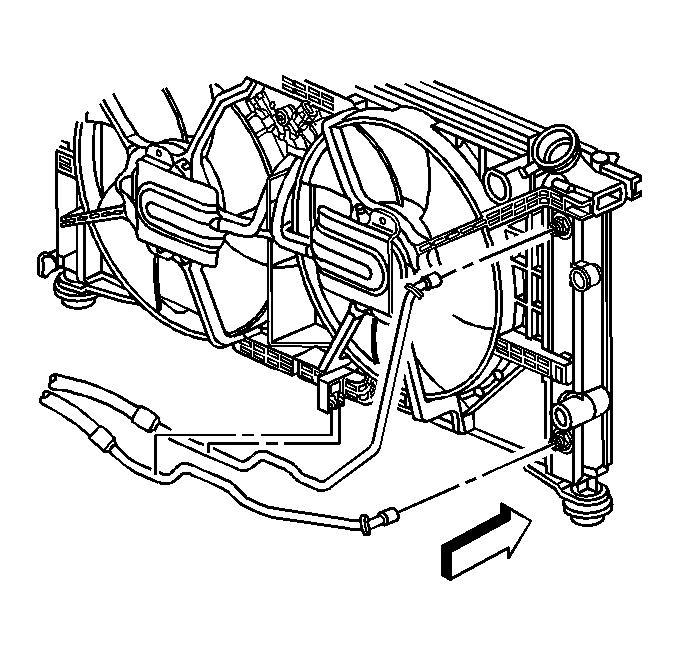

Fig 1: View Of TOC Inlet Hose To Radiator

Courtesy of GENERAL MOTORS CORP.

Install the TOC hoses to the vehicle.
Connect the TOC hoses to the radiator support retainer.
Connect the TOC inlet hose to the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

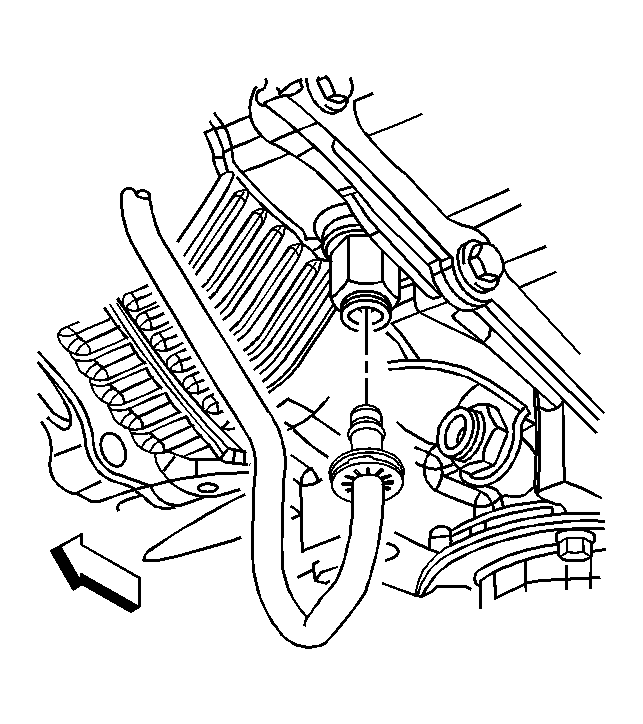

Fig 2: Locating TOC Inlet Hose To Transaxle

Courtesy of GENERAL MOTORS CORP.

Connect the TOC inlet hose to the transaxle. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

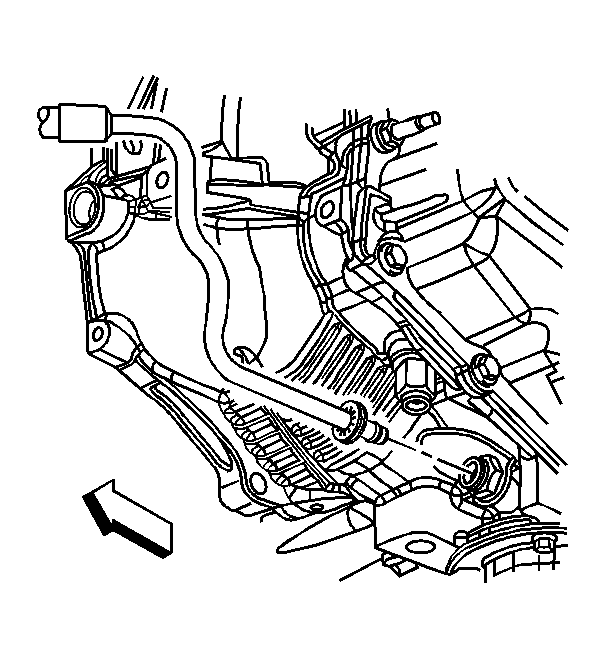

Fig 3: Identifying TOC Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Connect the TOC outlet hose to the transaxle. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

Fig 4: View Of TOC Hose Retainer Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the TOC hose retainer and the bolt.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
Lower the vehicle.
Connect the TOC outlet hose to the top side of the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
Adjust the fluid level. Refer to the following information.
- Transmission Fluid Checking Procedure .
- Fluid and Lubricant Recommendations in Maintenance and Lubrication.
- Capacities - Approximate Fluid in Maintenance and Lubrication.
