Stationary Windows Component Views

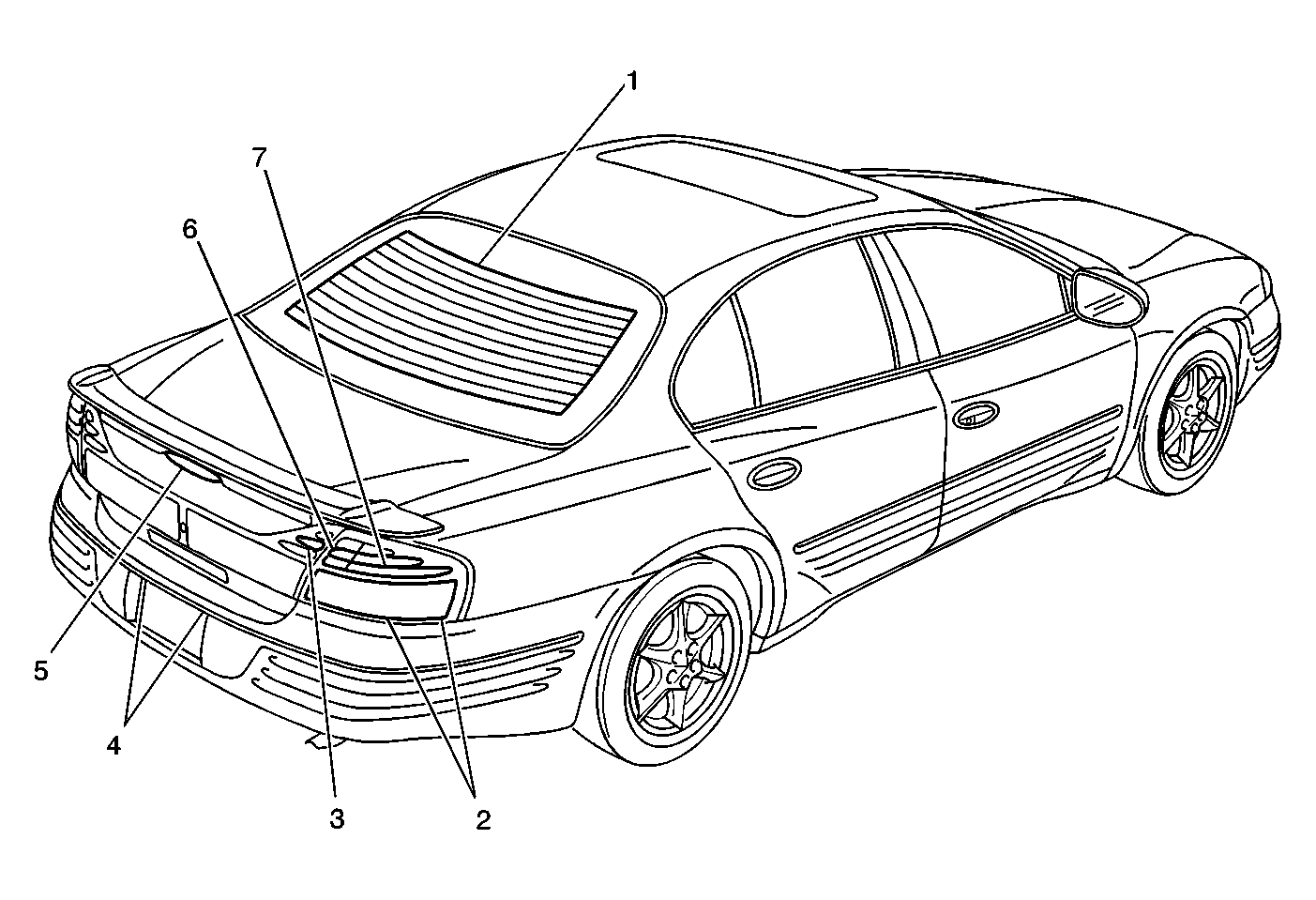

Fig 1: Rear of Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Tail Lamp - Right and Side Marker
3	Turn Signal Lamp - RR
4	Licences Lamps
5	Center High Mounted Stop Lamp (CHMSL)
6	Backup Lamp - Right
7	Turn Signal Lamp

Fig 2: Inside Rearview Mirror Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror
