Abs Component Views

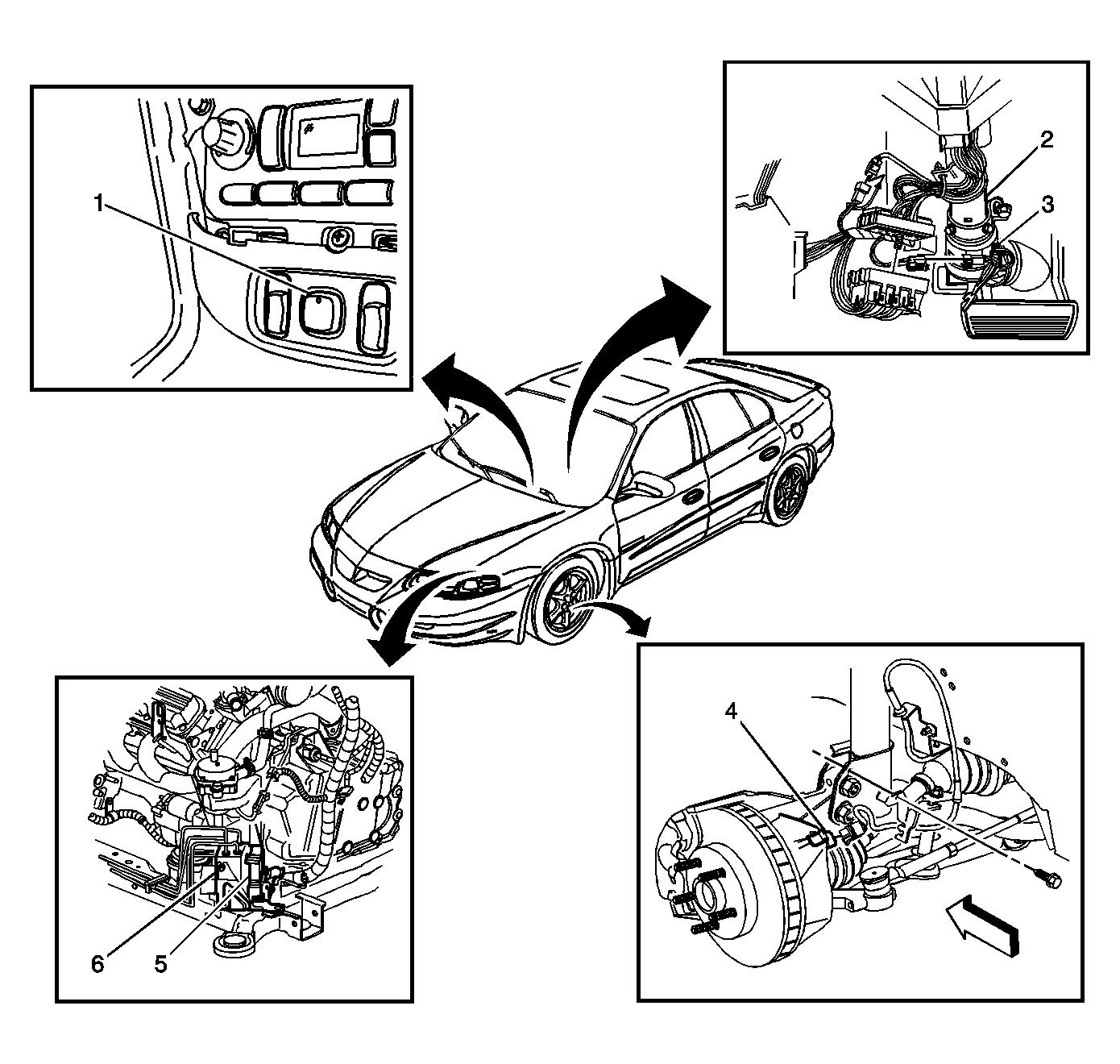

| Callout | Component Name |
|---|---|
| 1 | Traction Control Switch (w/NW9) |
| 2 | Steering Column |
| 3 | Steering Wheel Position Sensor |
| 4 | Wheel Speed Sensor (WSS) - LF (RF Similar) |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Brake Pressure Modulator Valve (BPMV) |

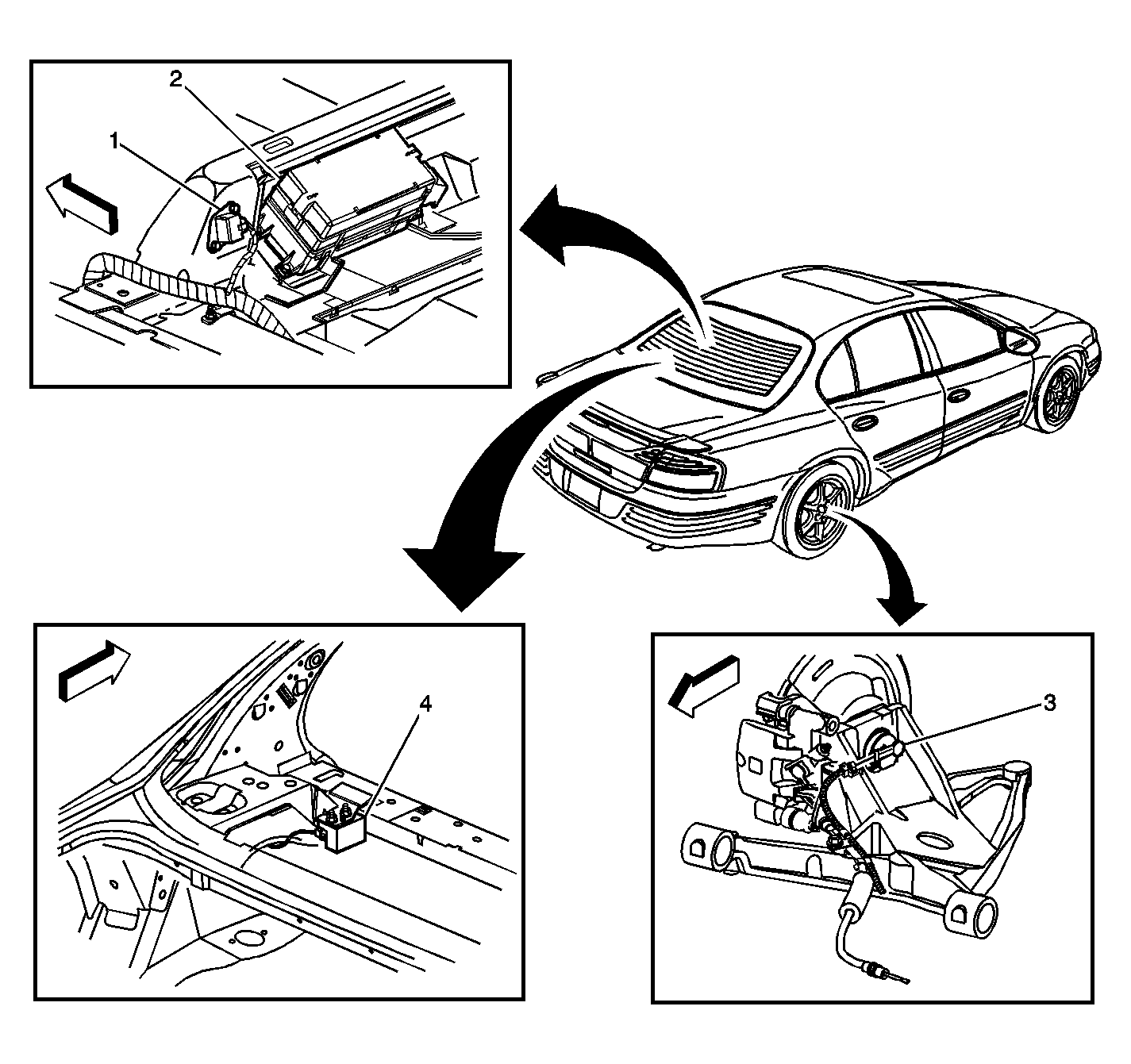

| Callout | Component Name |
|---|---|
| 1 | Lateral Accelerometer Sensor |
| 2 | Fuse Block - Rear |
| 3 | Wheel Speed Sensor (WSS) - RR (LR Similar) |
| 4 | Yaw Rate Sensor |
