Installation Procedure

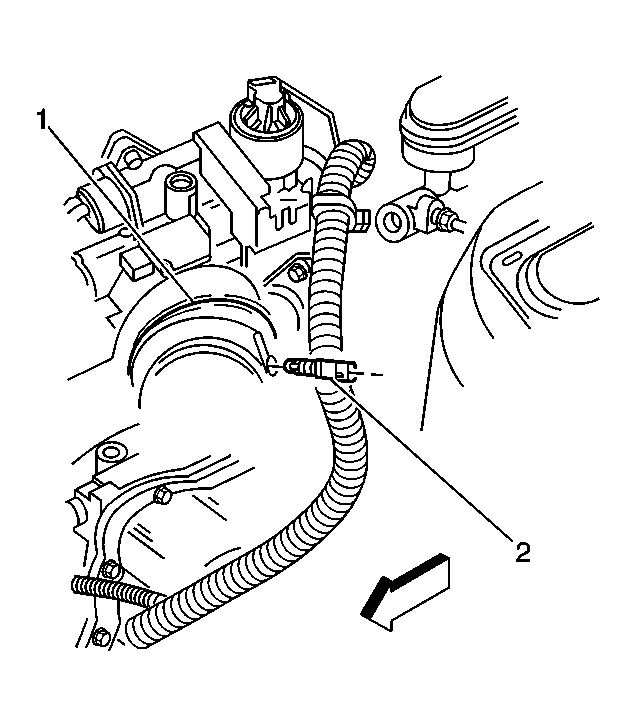

    Fig 1: IAT Sensor & Intake Air Duct
    GM179042Courtesy of GENERAL MOTORS CORP.
  1. Insert the IAT sensor (2) into the rear air intake duct (1).
    2. Fig 2: Removing/Installation Intake Air Temperature (IAT) Sensor Electrical Connector
    GM179039Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (1) to the IAT sensor (2).
