Engine Controls Schematics

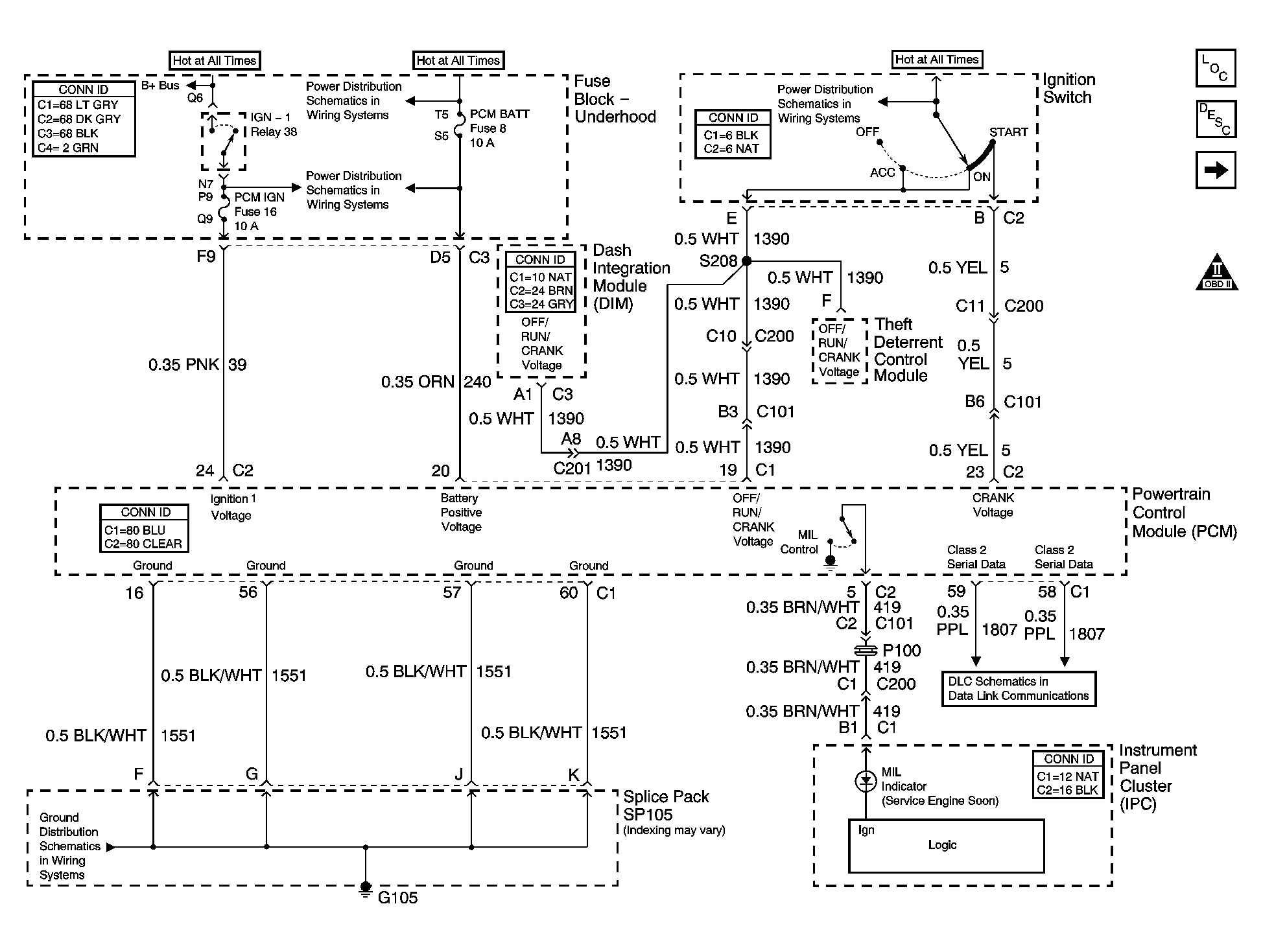

Fig 1: PCM Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

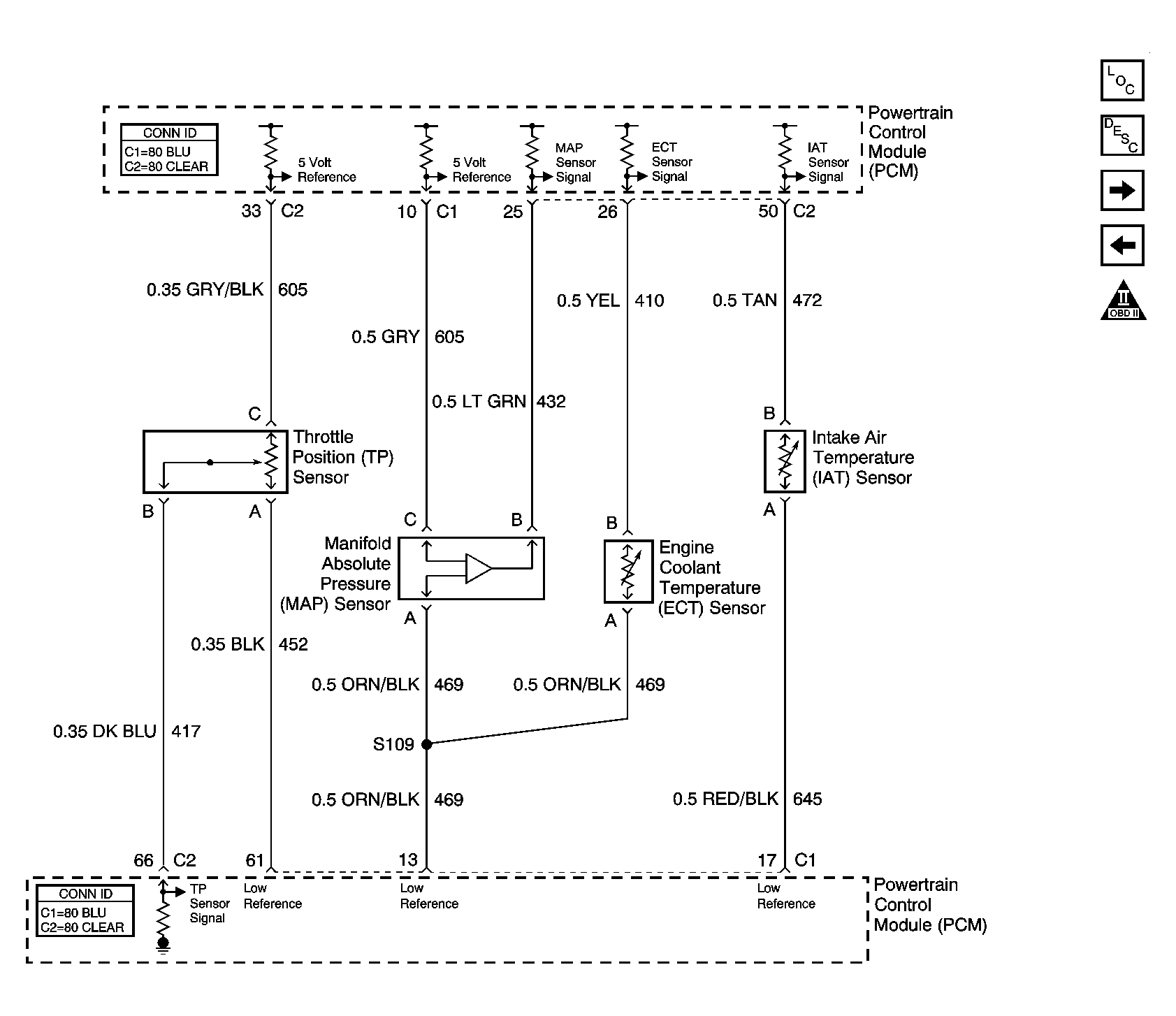

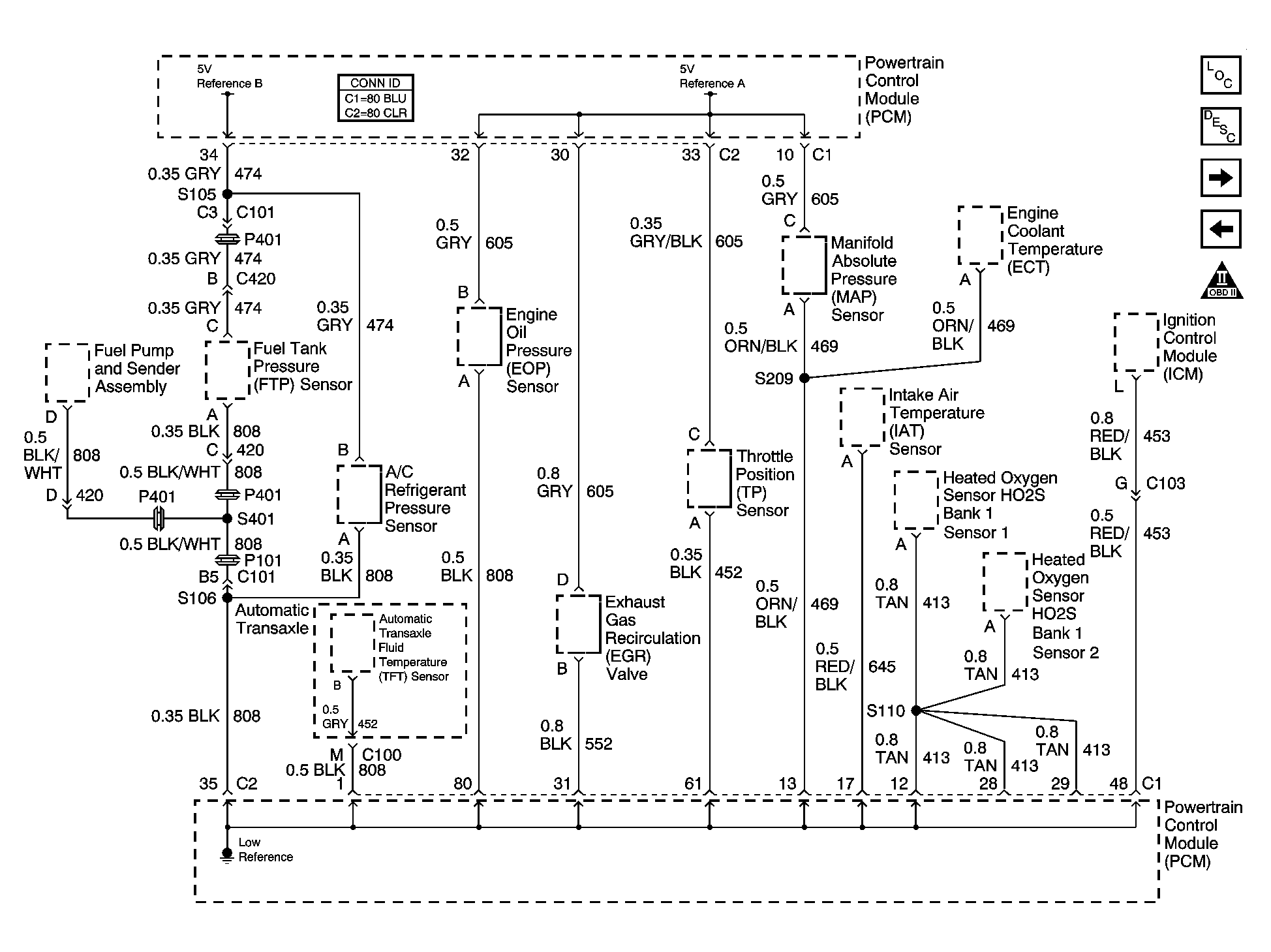

Fig 3: Engine Data Sensors - Pressure & Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

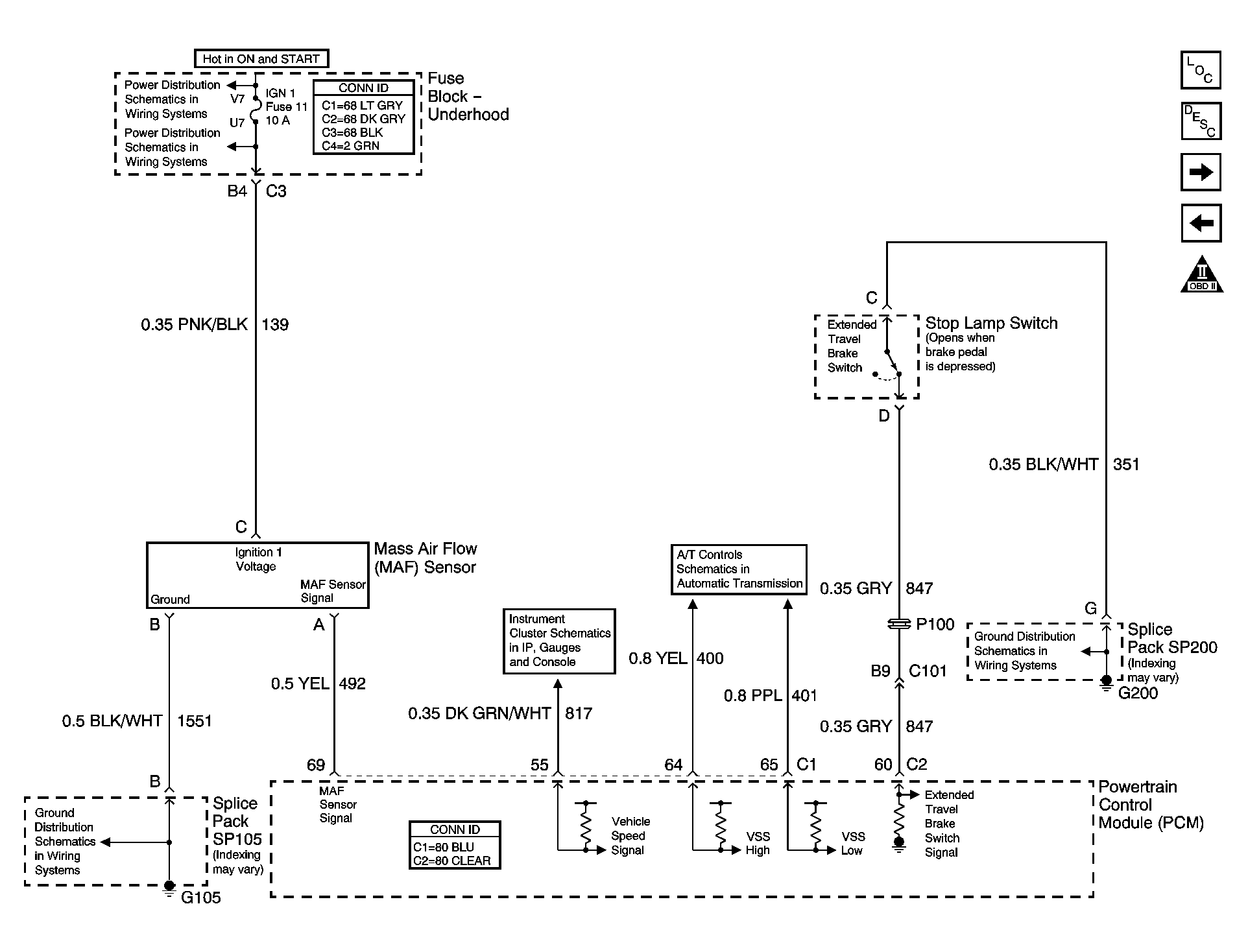

Fig 4: Engine Data Sensors - MAF, VSS & Extended Brake Travel Switch Schematic

Courtesy of GENERAL MOTORS CORP.

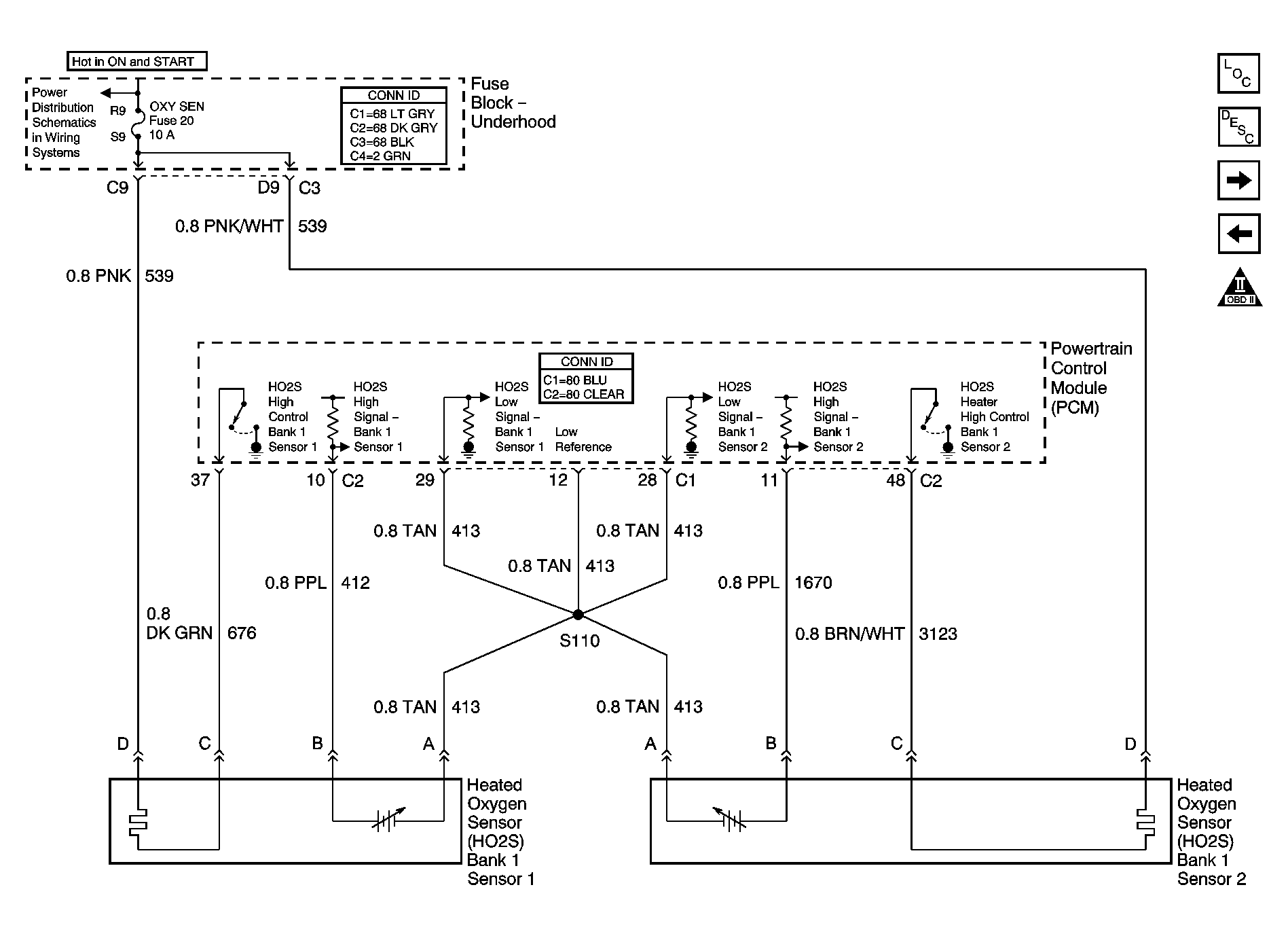

Fig 5: Heated Oxygen Sensors (HO2S) Schematic

Courtesy of GENERAL MOTORS CORP.

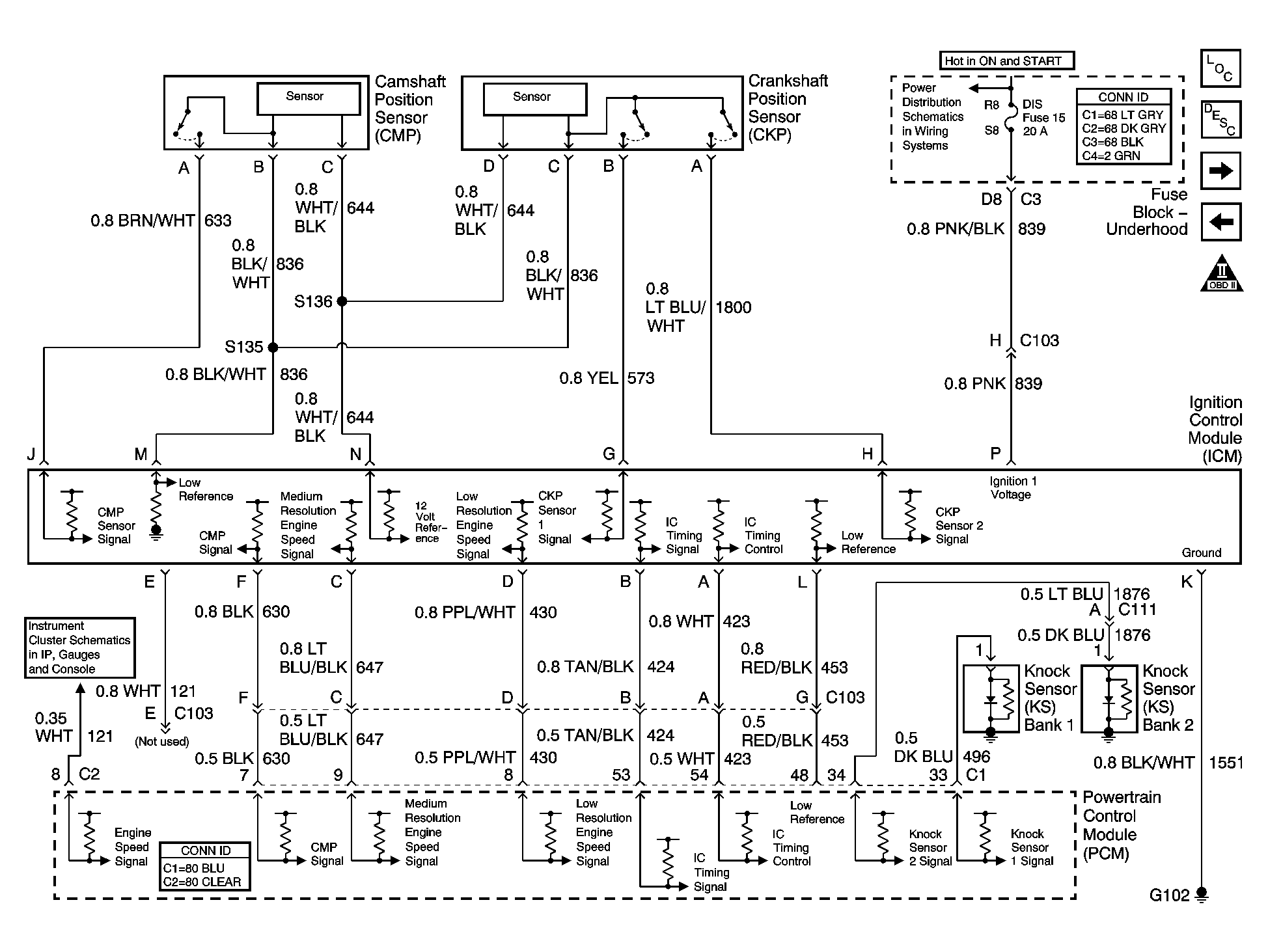

Fig 6: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

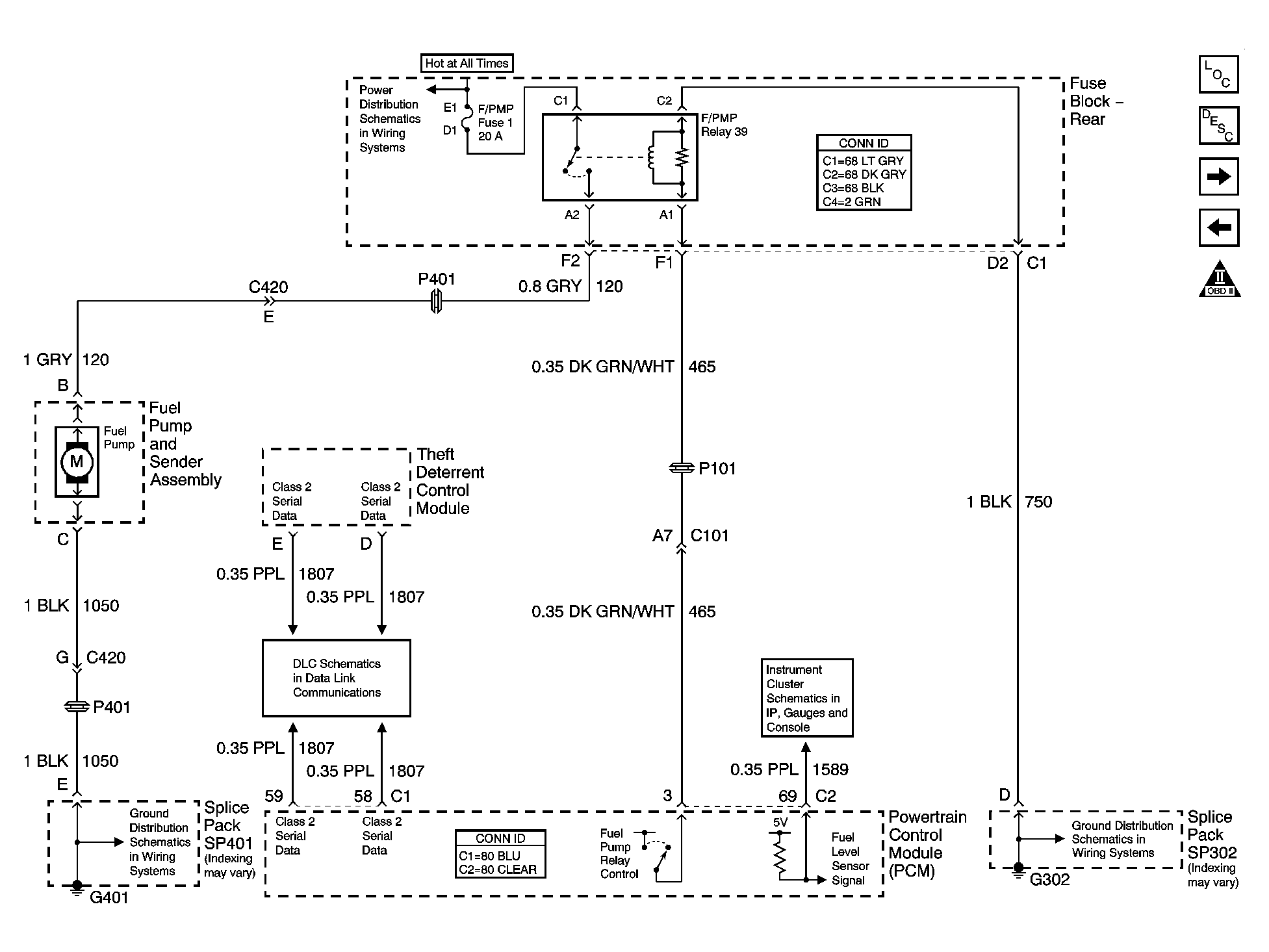

Fig 7: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

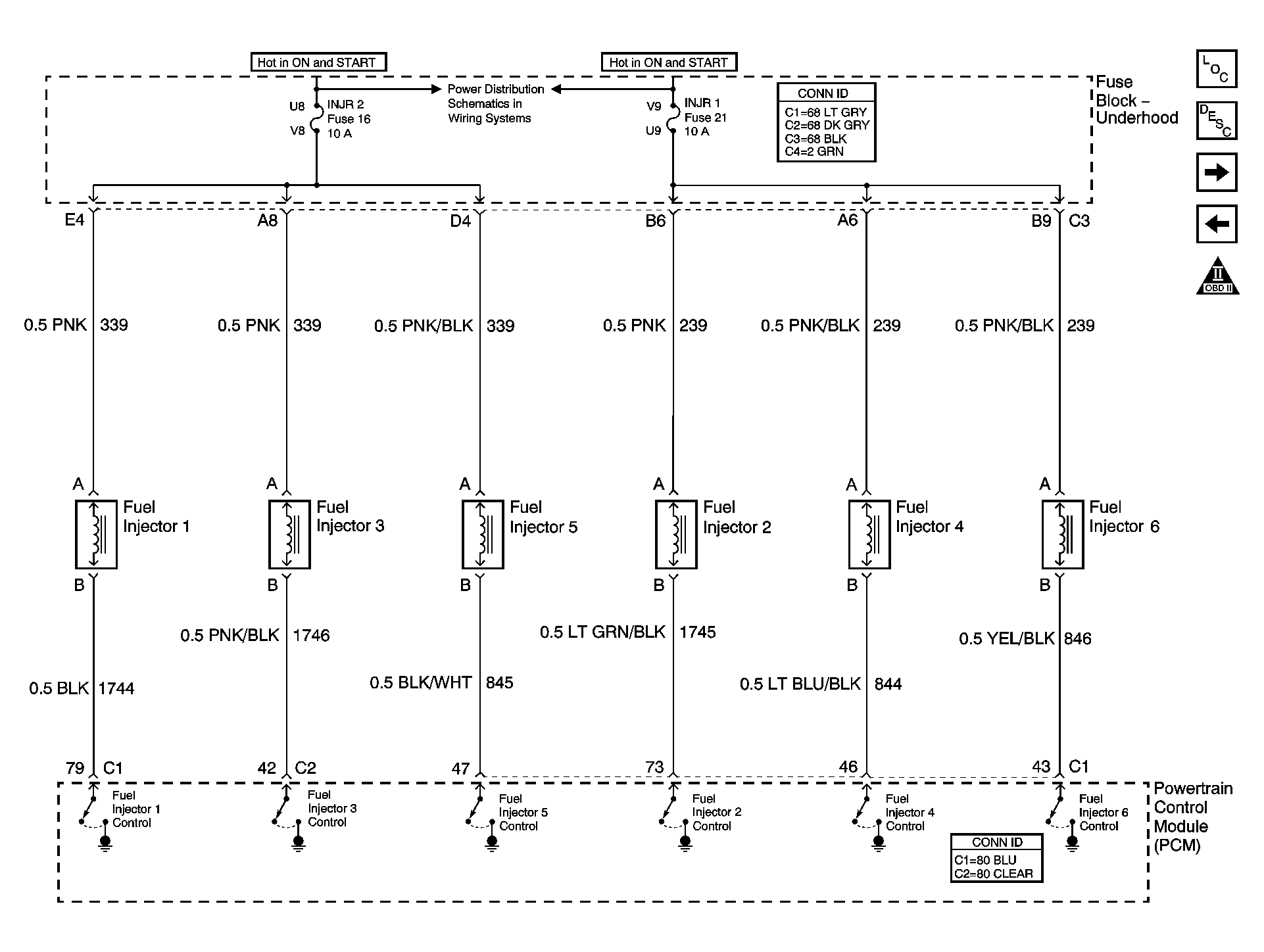

Fig 8: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

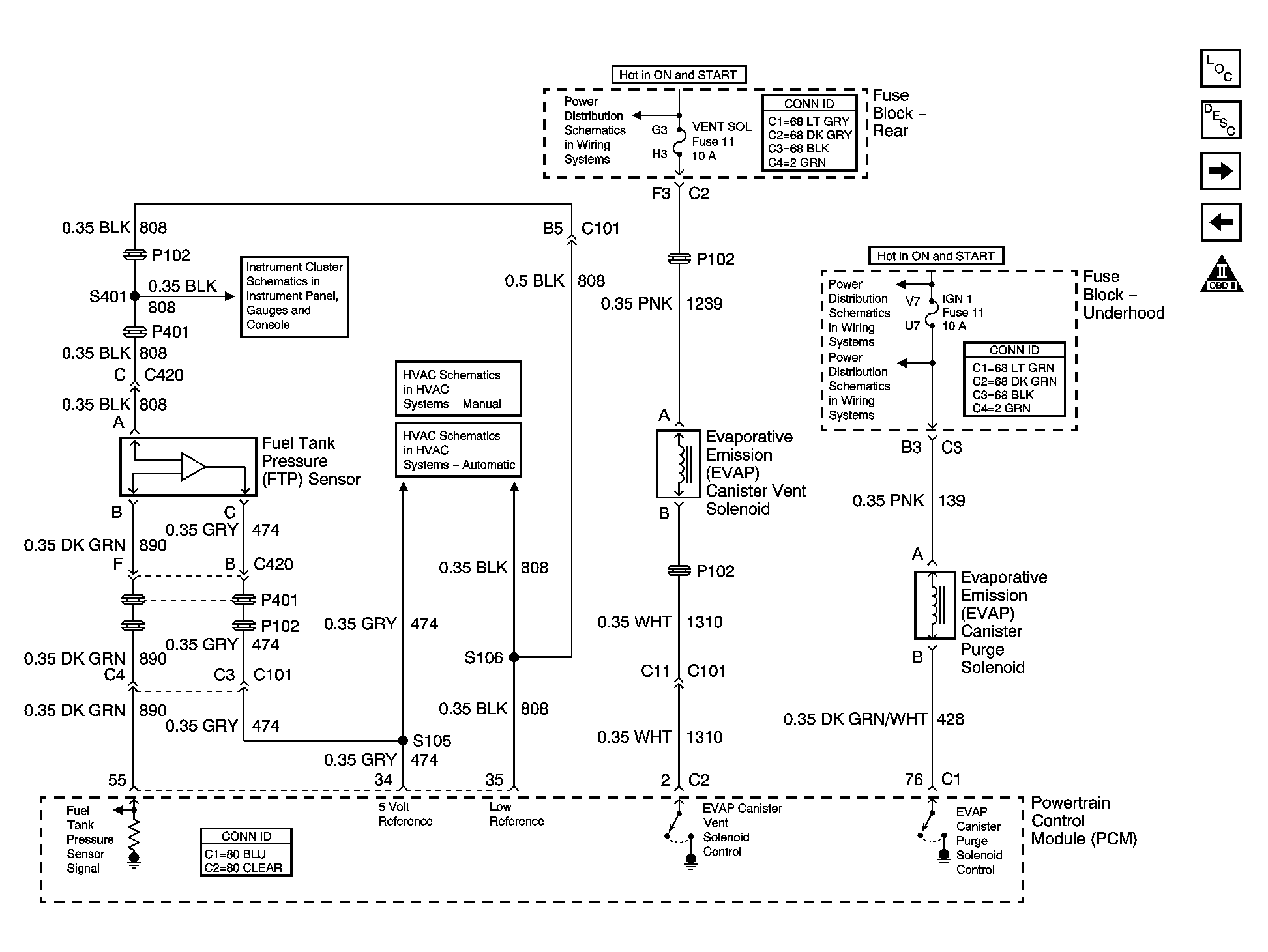

Fig 9: Fuel Sensor & EVAP Solenoid Controls Schematic

Courtesy of GENERAL MOTORS CORP.

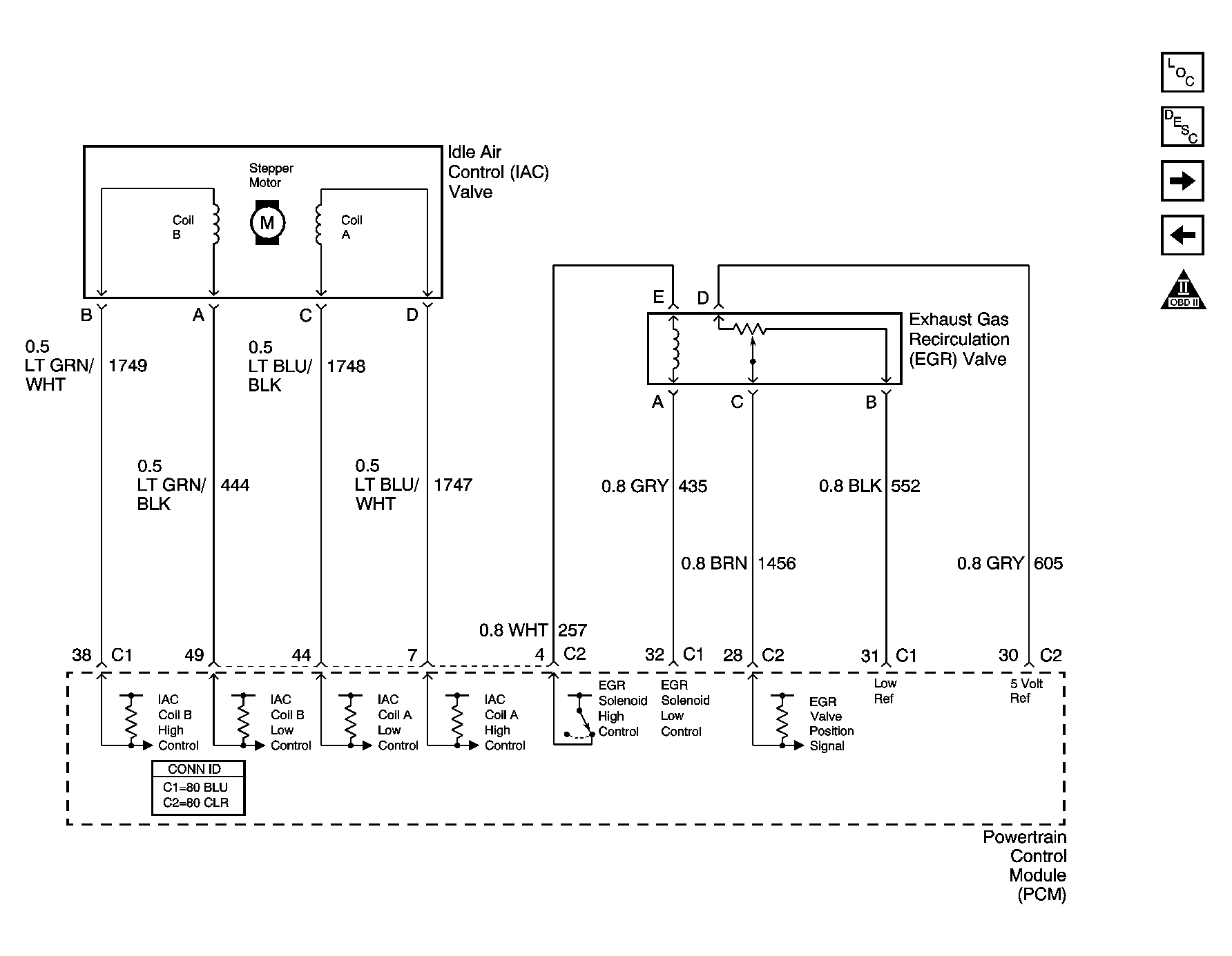

Fig 10: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

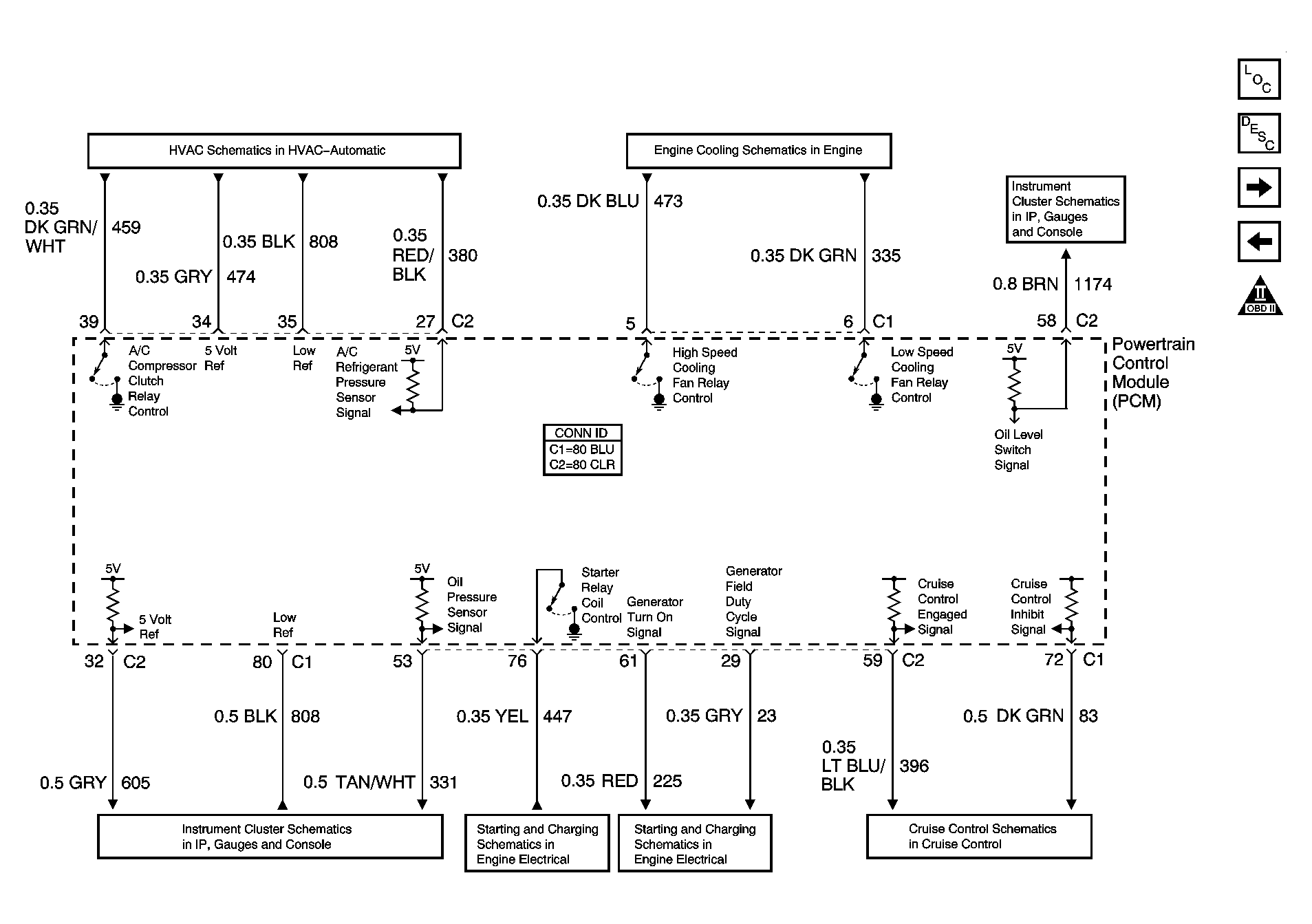

Fig 11: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

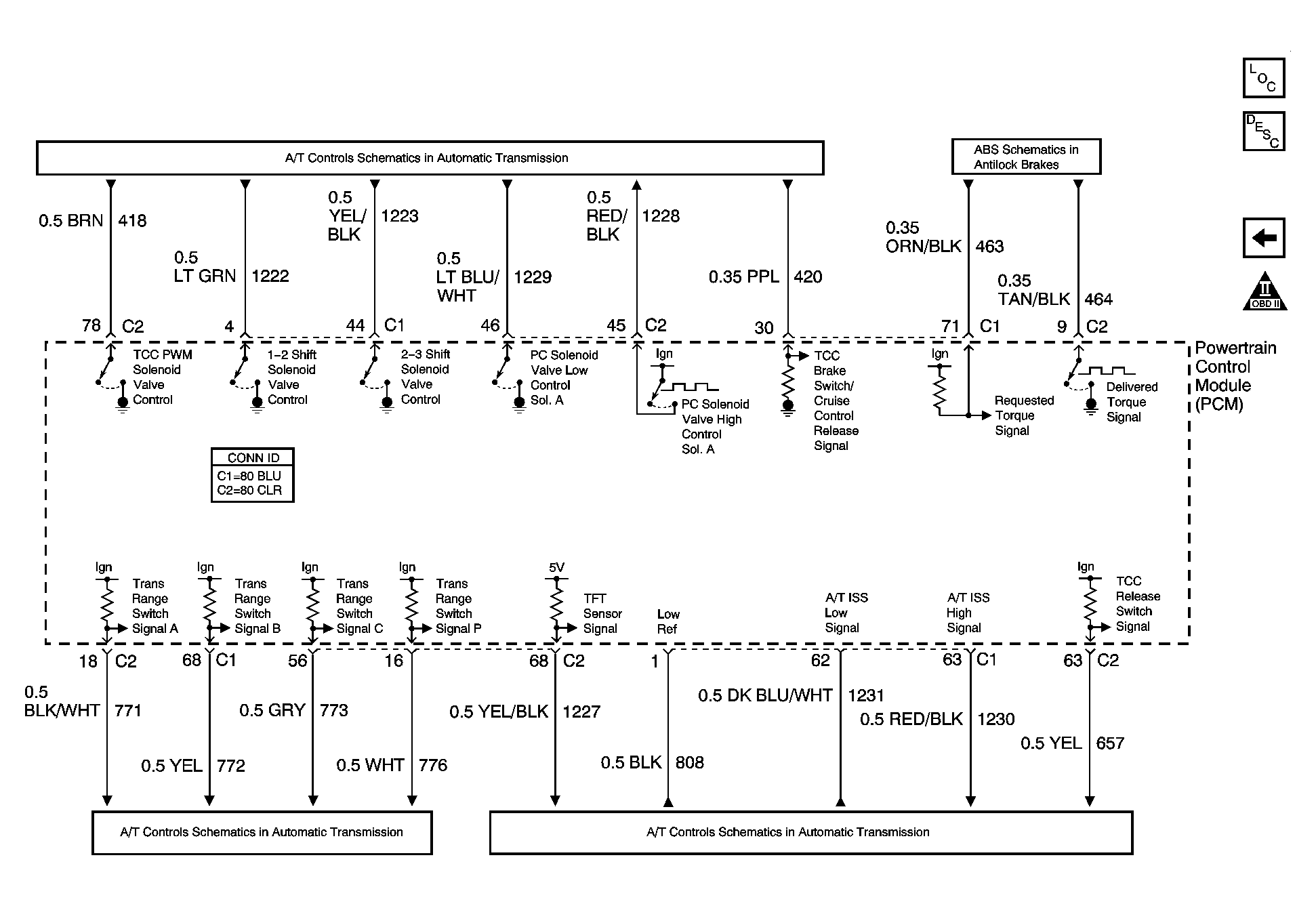

Fig 12: Transmission Controls Schematic

Courtesy of GENERAL MOTORS CORP.
