Automatic Transmission Shift Lock Control Schematics

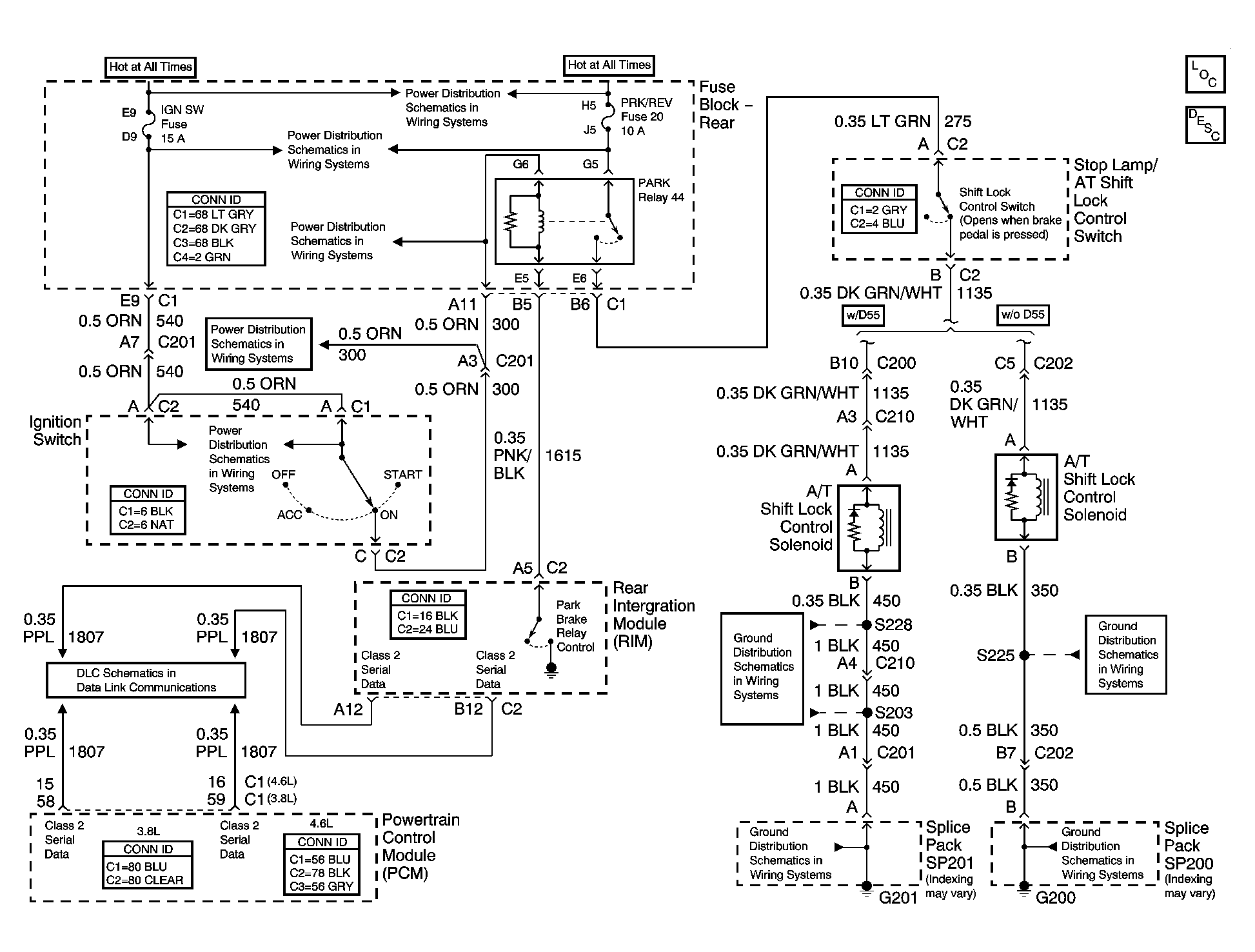

Fig 1: Power, Ground & Solenoid Schematic
GM1364563Courtesy of GENERAL MOTORS CORP.
