Power Door Lock Switch Replacement

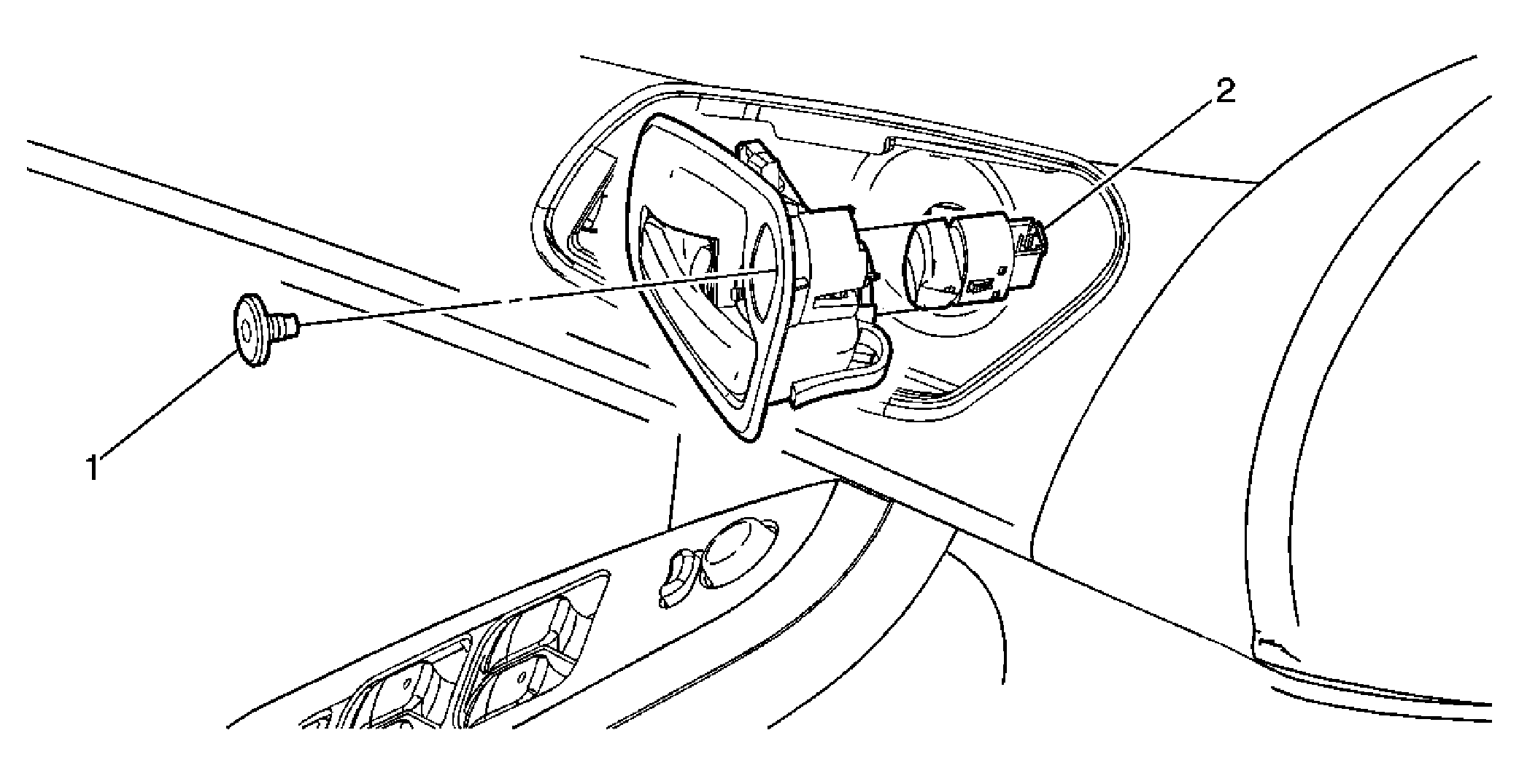

Fig 1: Replacing Power Door Lock Switch
GM1563242Courtesy of GENERAL MOTORS CORP.
Power Door Lock Switch Replacement

Callous Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolt, Handle Assembly Inside Door

Tighten:  8 N.m (70 lb in)

2 Switch Assembly, Door Lock
