Power Window Switch Replacement - Left Front

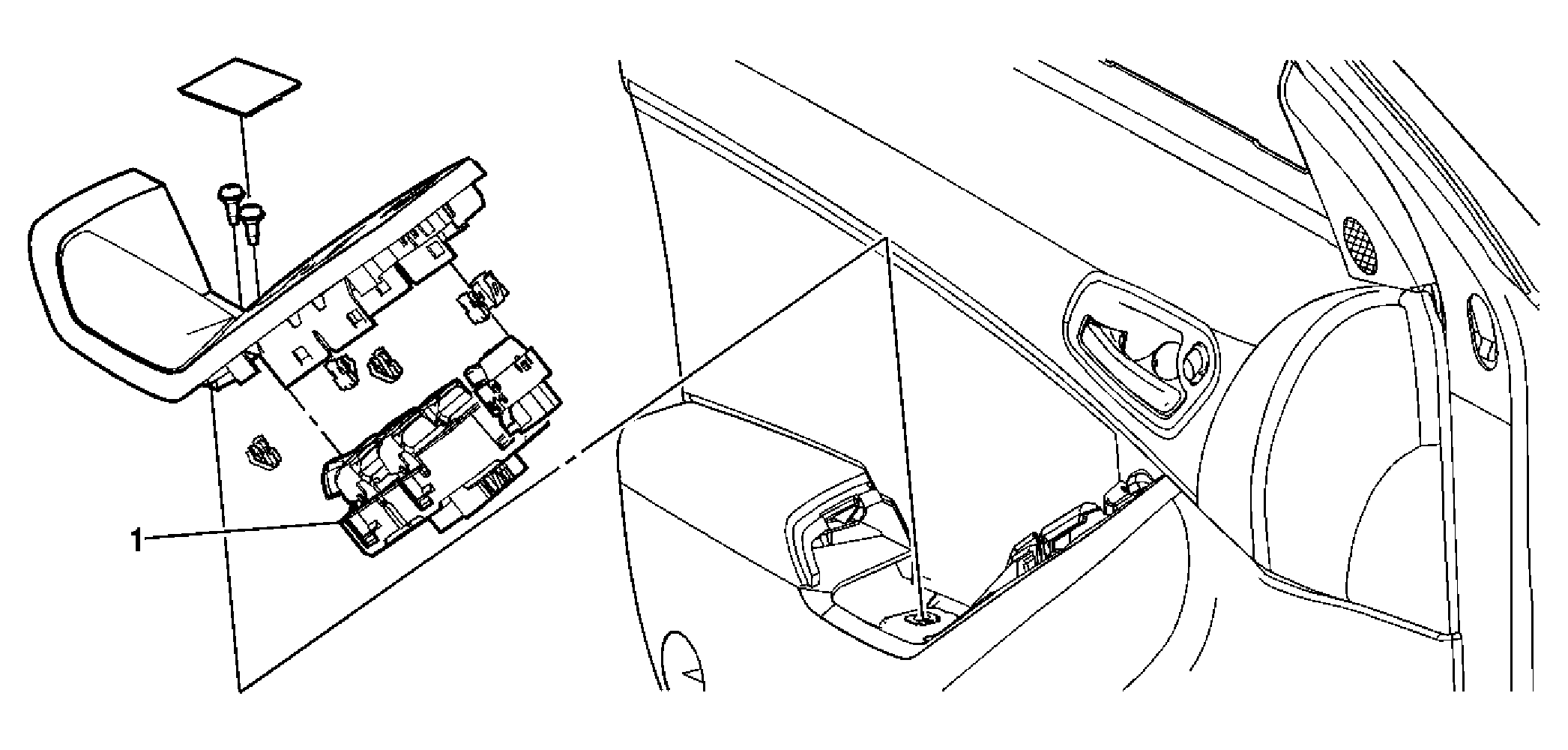

Fig 1: Replacing Left Front Power Window Switch
GM1563235Courtesy of GENERAL MOTORS CORP.
Power Window Switch Replacement - Left Front

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedures:
Remove driver door switch bezel. Refer to Bezel Replacement - Front Door Switch .
1 Switch Assembly, Side Windows
