Pontiac
>>
2005
>>
G6 Base
>>
Repair and Diagnosis
>>
Brakes
>>
Antilock Brake System And Traction Control System
>>
Schematic and Routing Diagrams
>>
ABS Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ABS Schematics

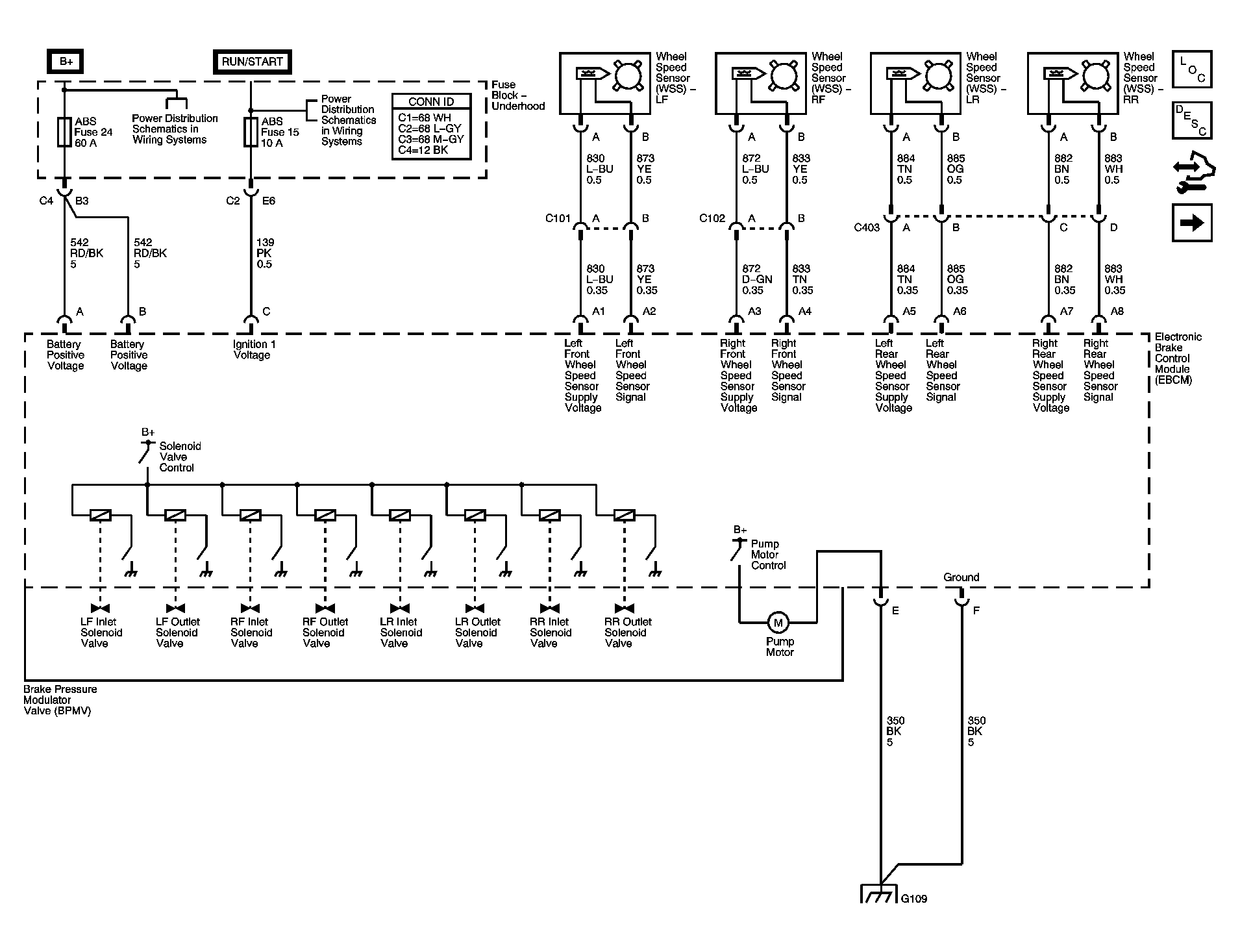

Fig 1: Power, Ground and Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

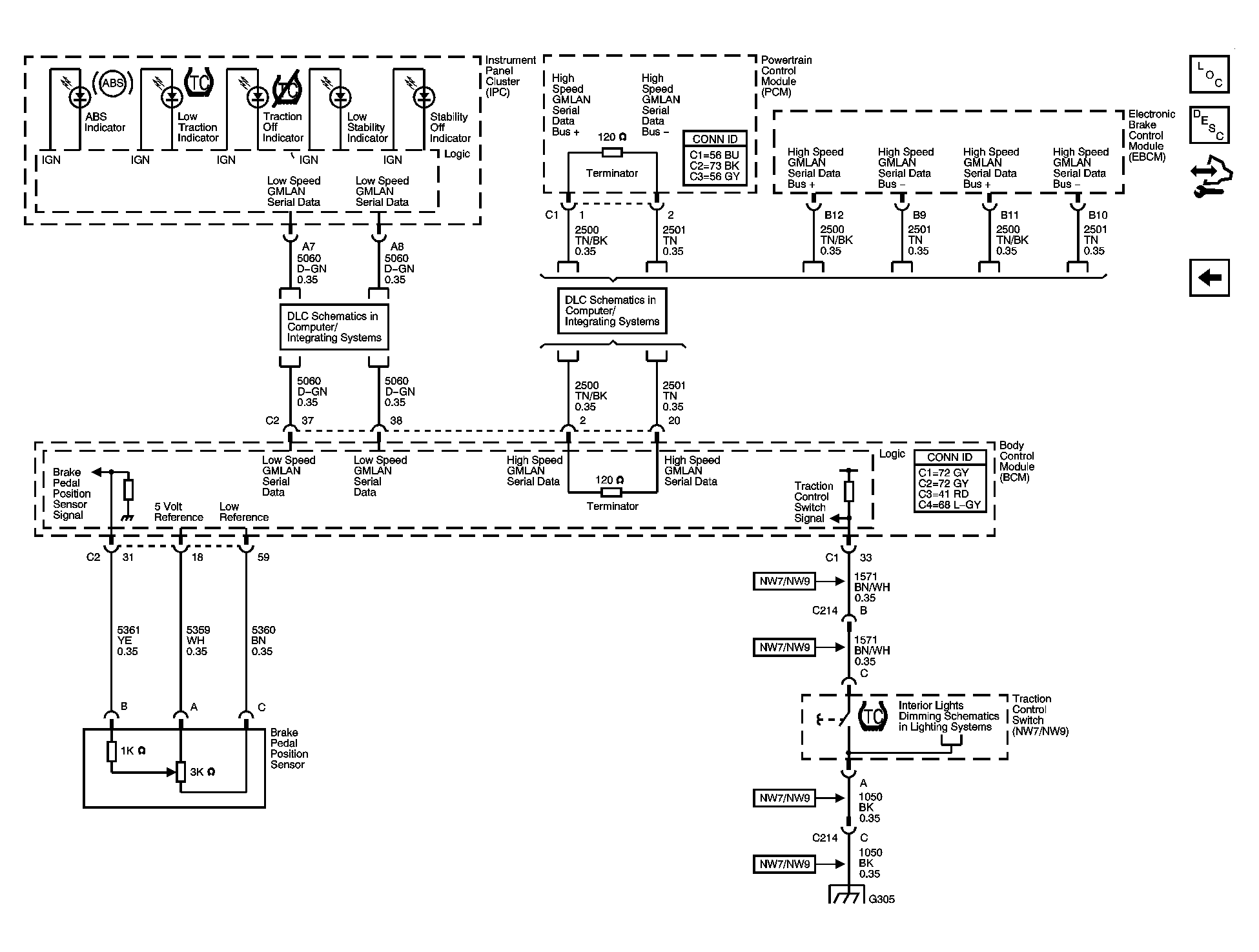

Fig 2: Brake Pedal Position Sensor, Traction Control Switch and Data Link Communications
Courtesy of GENERAL MOTORS CORP.
