Tail Lamp Assembly and /or Backup, Sidemarker, Stop, Turn Signal Bulb Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

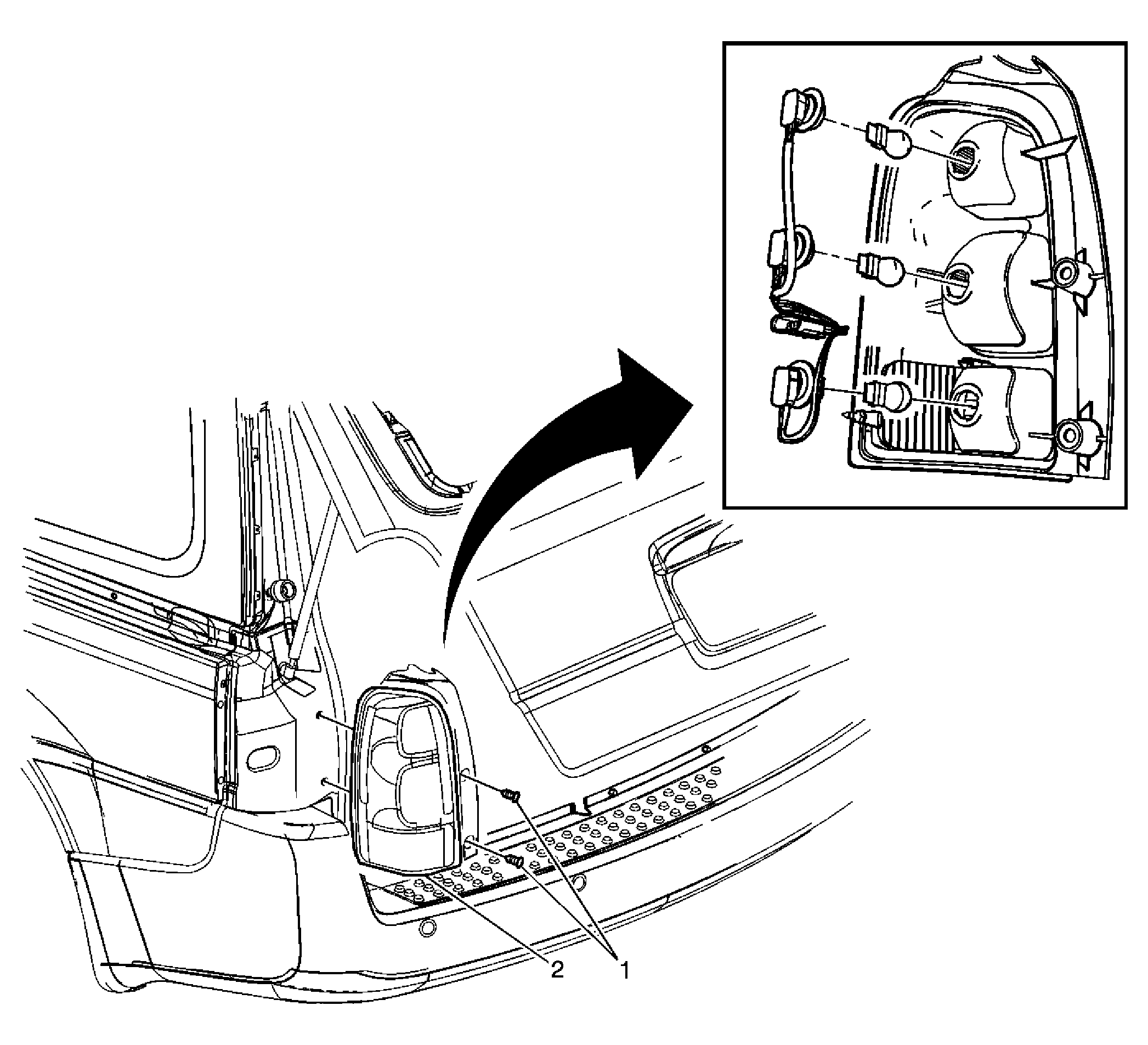

Fig 1: Replacing Tail Lamp Assembly And/or Backup, Sidemarker, Stop, Turn Signal Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Tail Lamp Assembly Replacement
1	Screw, Tail Lamp (Qty: 4) Tip: Open the liftgate to gain access to the screws. Tighten: 6 N.m (53 lb in)
2	Lamp Assembly, Tail (Qty: 2) Tip: Pull the tail lamp rearward to disengage the 2 retainers on the back side of the tail lamp. Disconnect the electrical connector. Remove and replace the bulbs, if necessary. Remove and replace the tail lamp wiring harness, if necessary.
