Control Module HVAC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Control Module HVAC

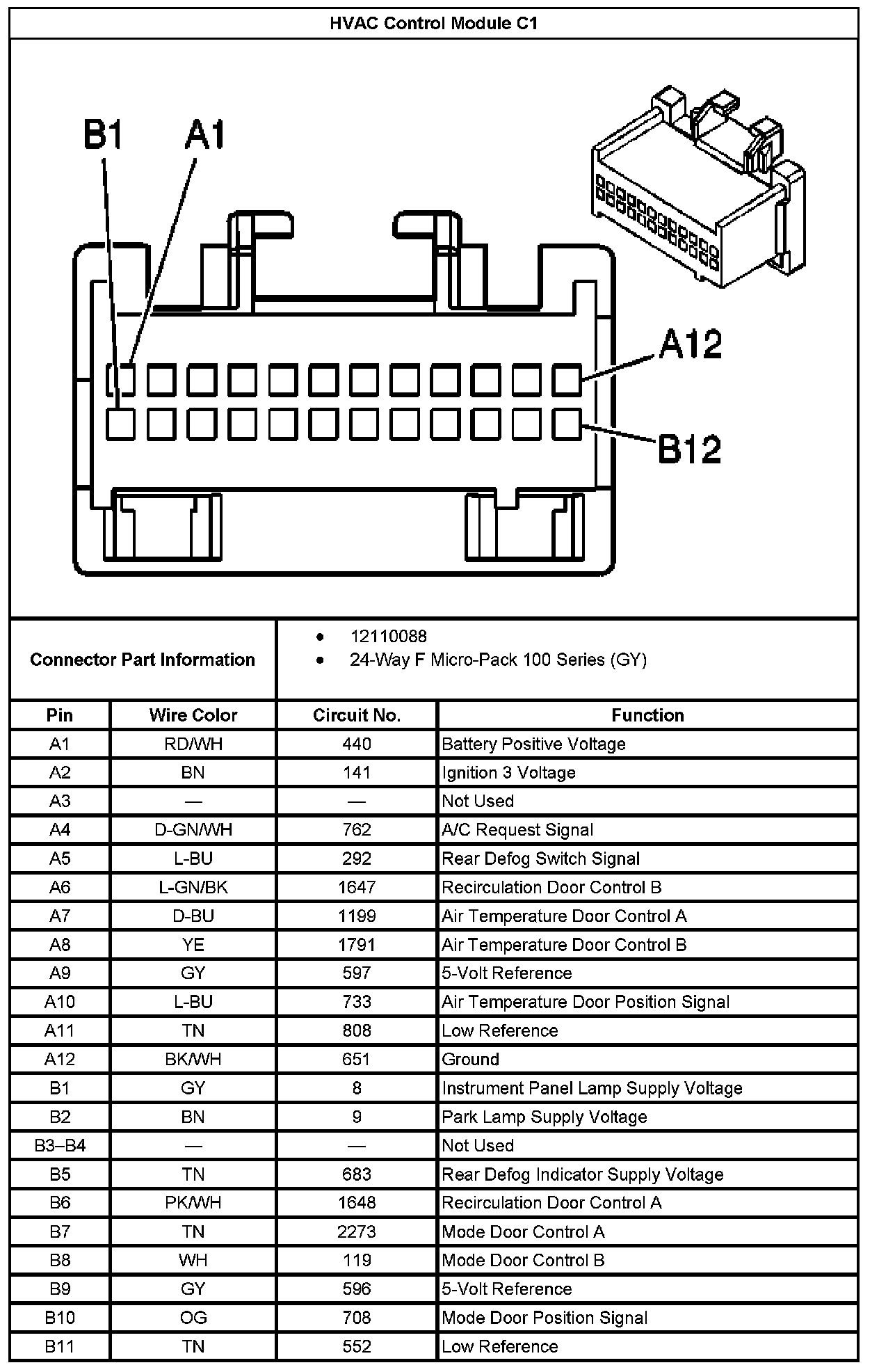

HVAC Control Module C1 Part 1:
HVAC Control Module C1 Part 2:

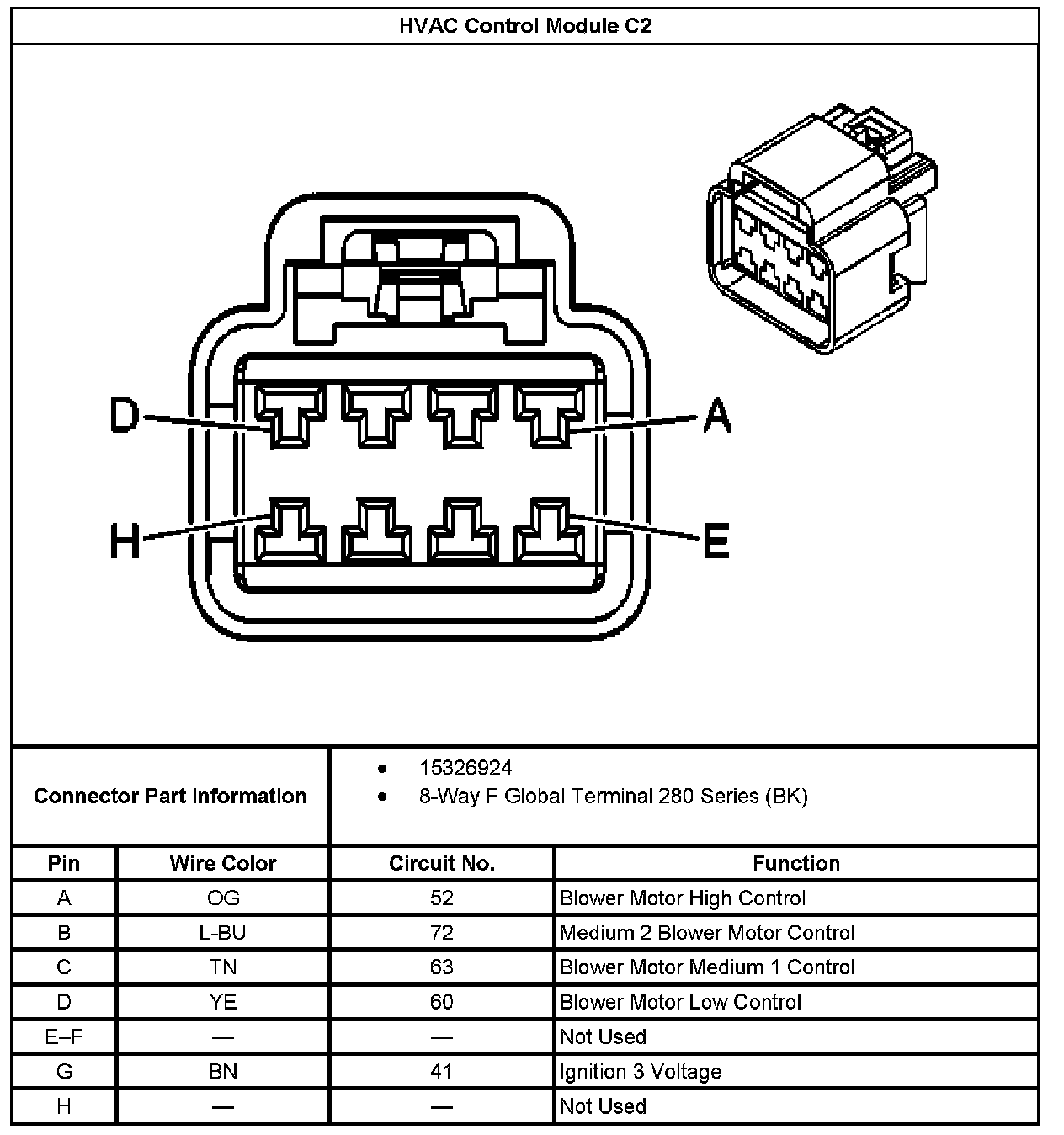

HVAC Control Module C2:
