Electrical Diagrams

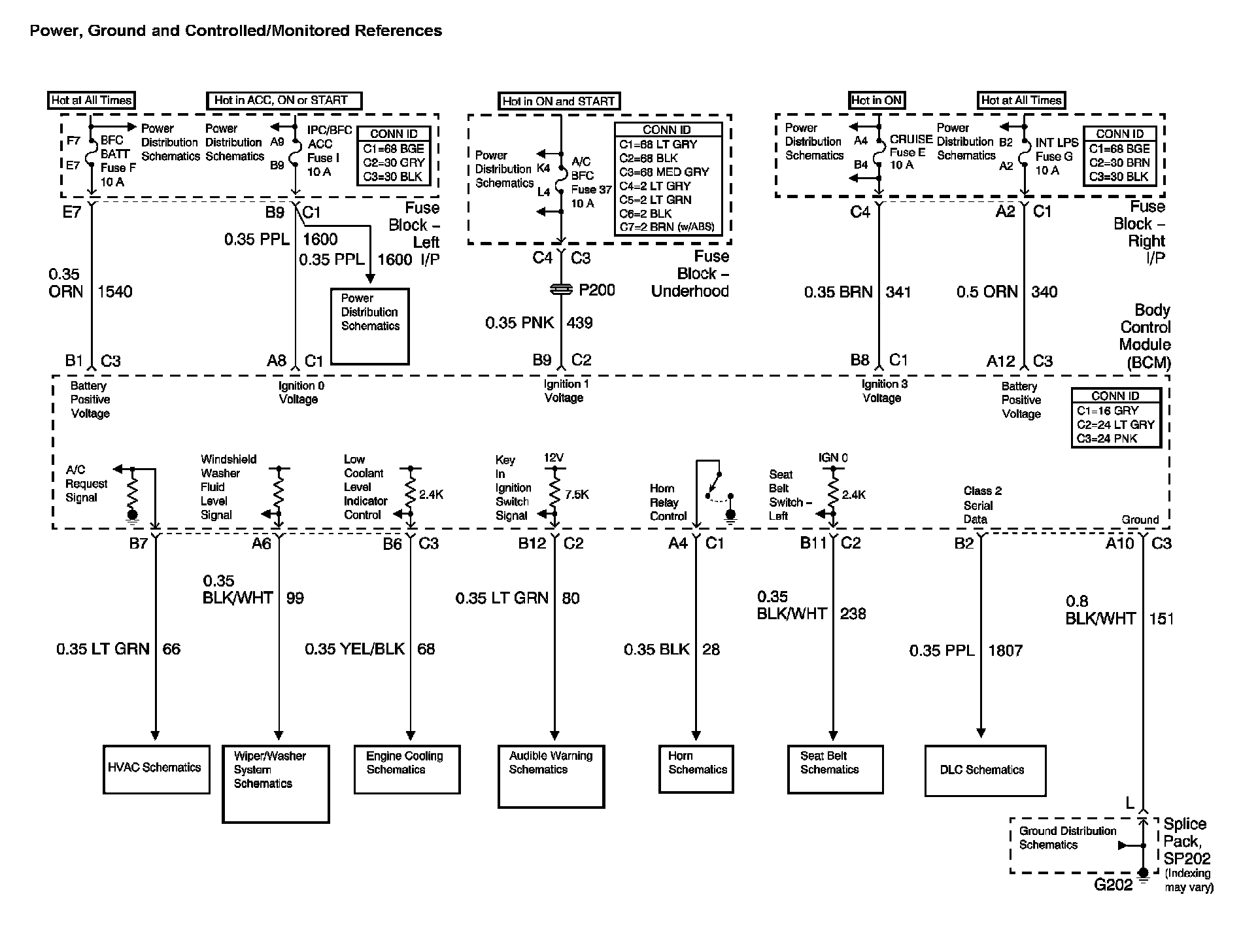

Body Control System Diagram 1:

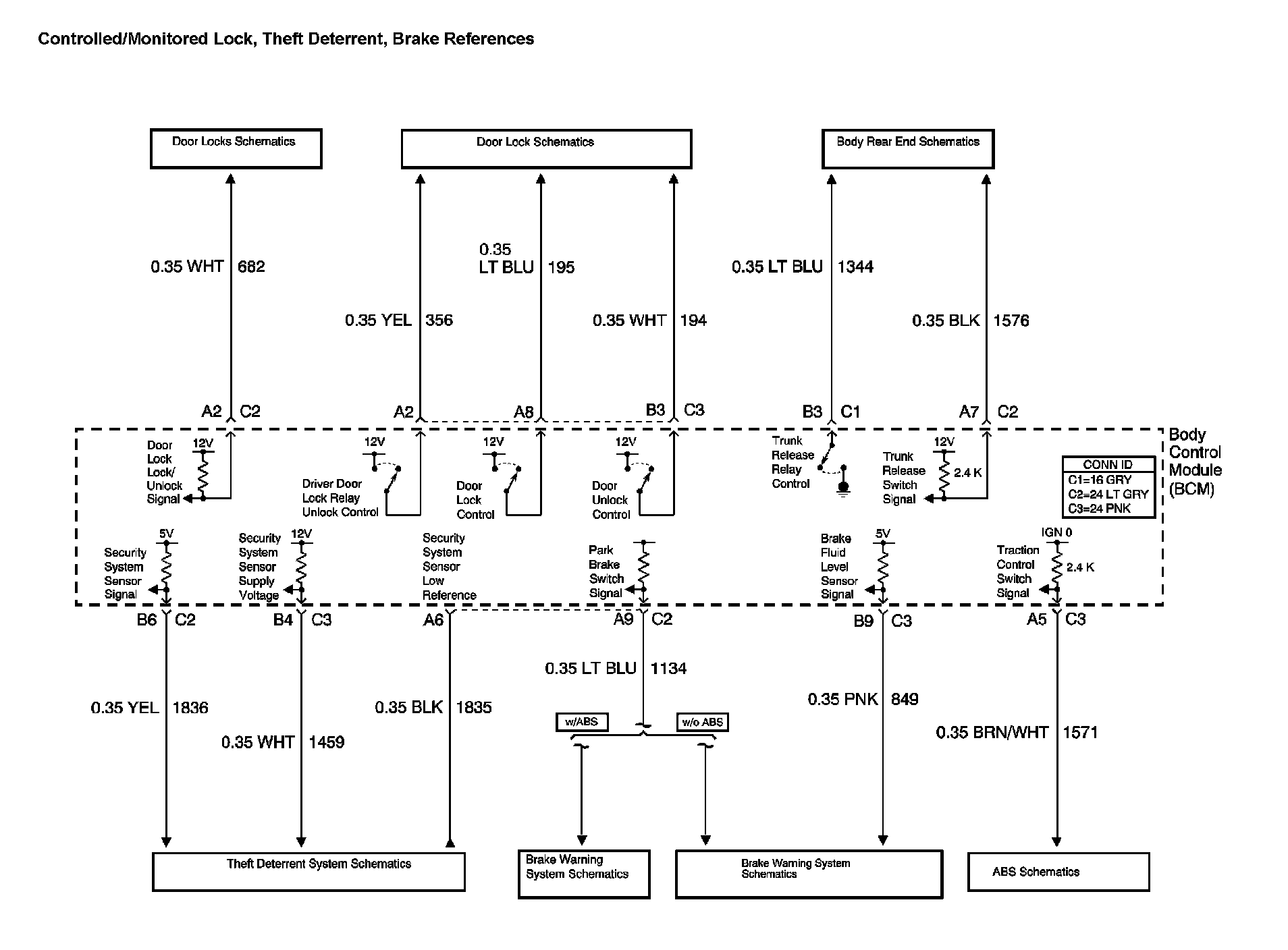

Body Control System Diagram 2:

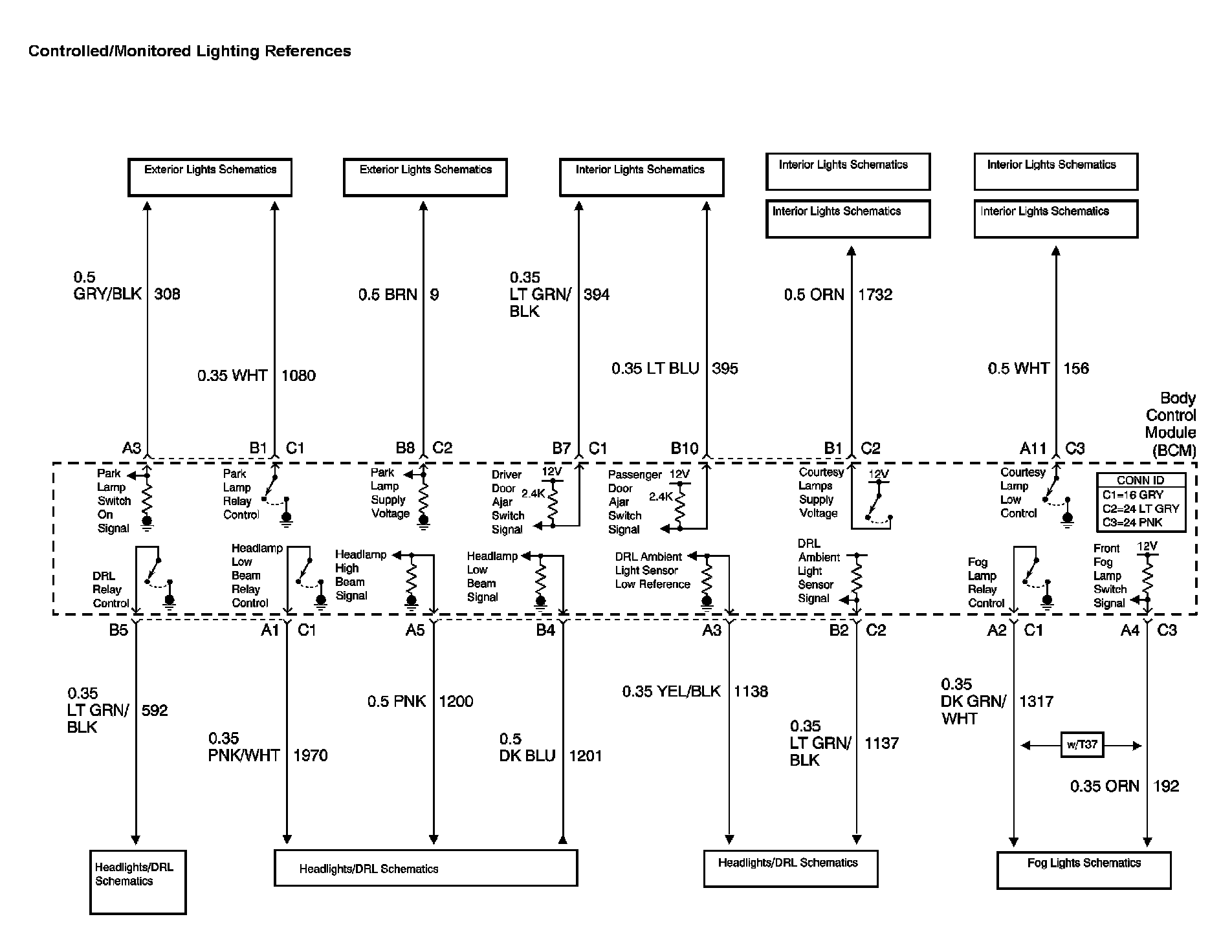

Body Control System Diagram 3:





Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
