ABS Schematics

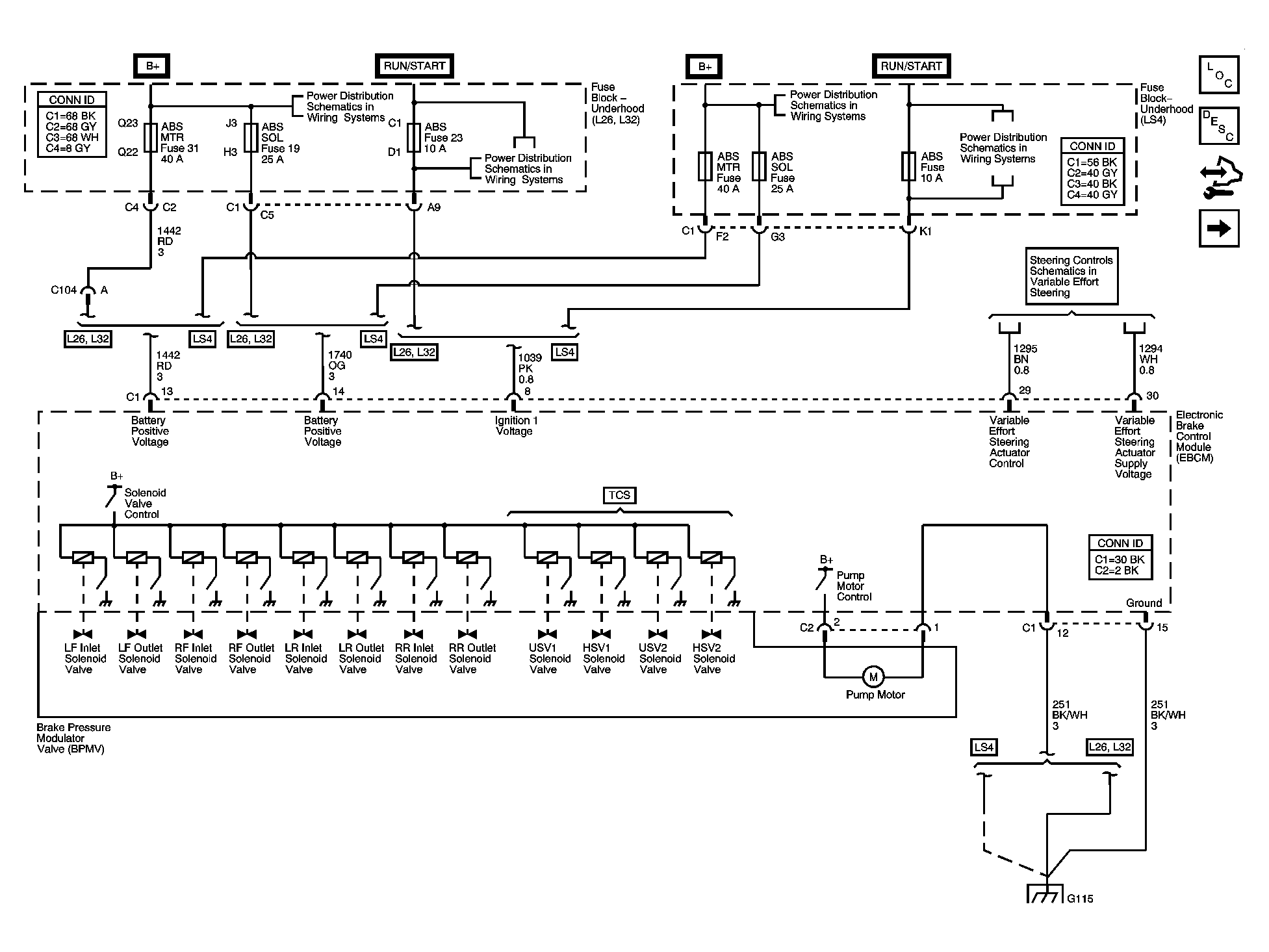

Fig 1: Power, Ground and Brake Pressure Modulator Valves Schematics

Courtesy of GENERAL MOTORS CORP.

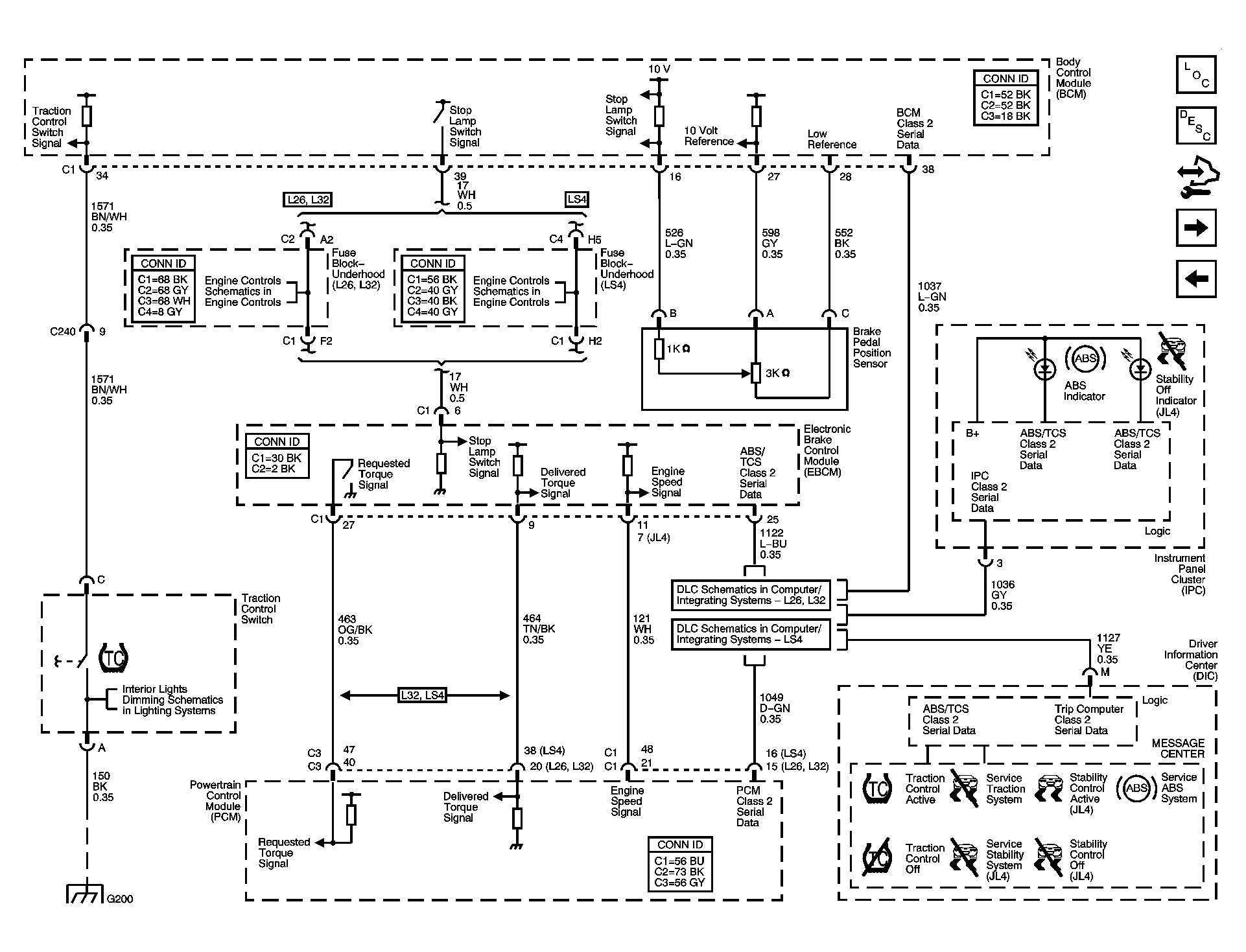

Fig 2: Indicators, ABS, Stability and Traction Controls Schematics

Courtesy of GENERAL MOTORS CORP.

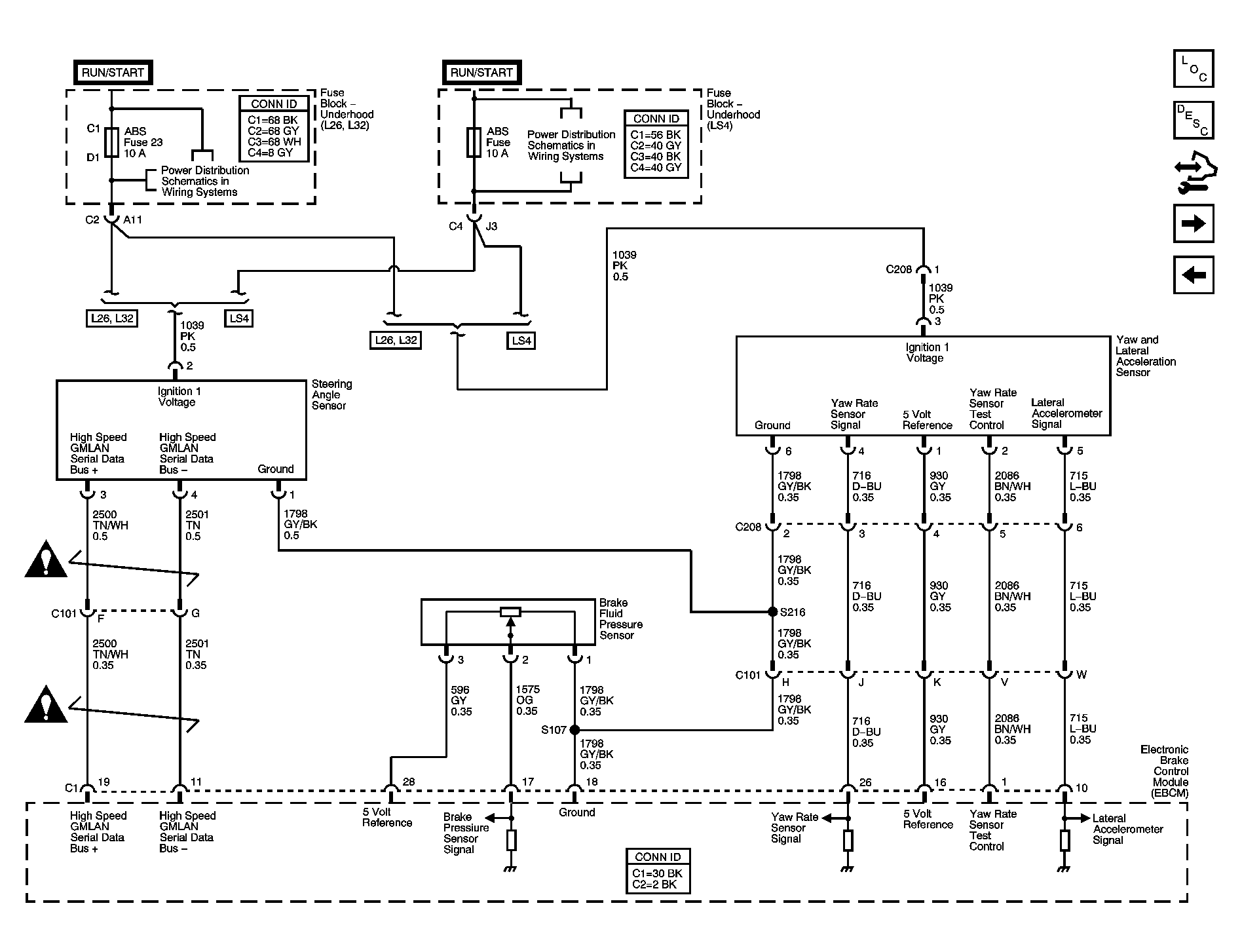

Fig 3: Stability Control Sensors Schematics - JL4

Courtesy of GENERAL MOTORS CORP.

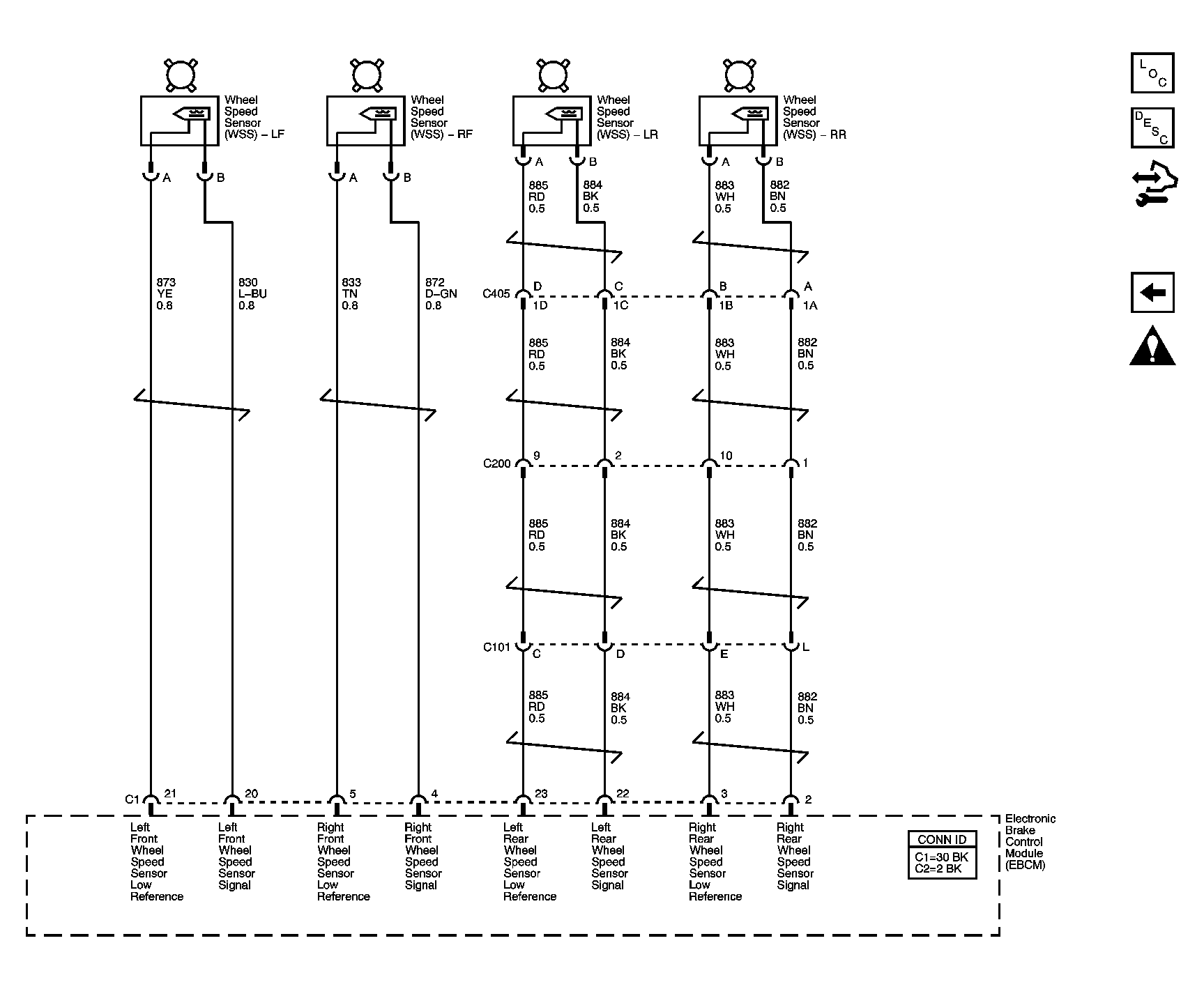

Fig 4: Wheel Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.
