Installation Procedure

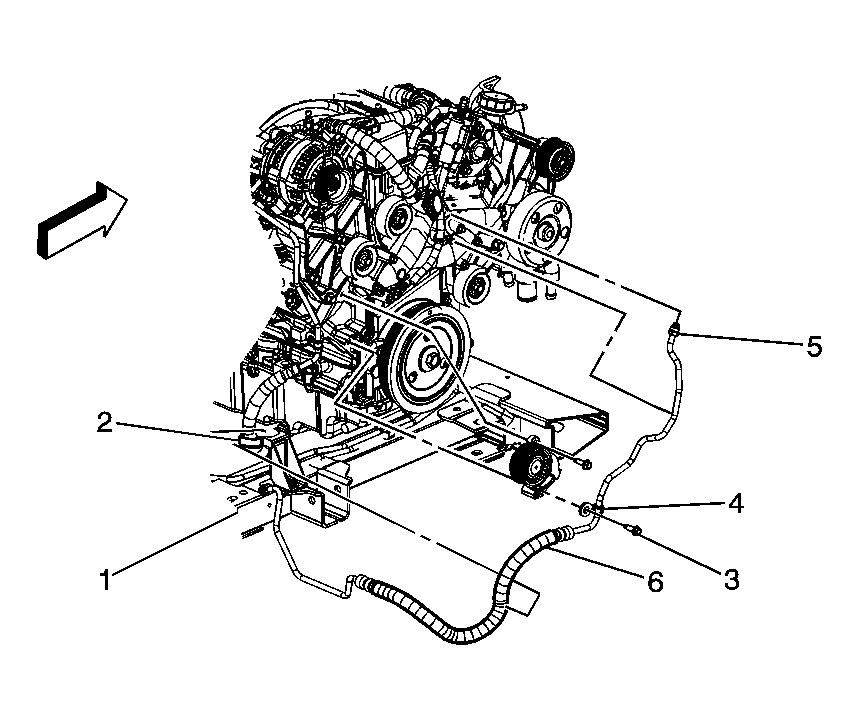

    Fig 1: Power Steering Pressure Pipe/Hose
    GM1578673Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the power steering pressure hose (6) to the power steering pump (5).

    Tighten:  Tighten the fitting to 27 N.m (20 lb ft).

  2. Install the power steering pressure hose (1) to the power steering gear.

    Tighten:  Tighten the pressure hose fitting to 27 N.m (20 lb ft).

  3. Install the power steering pressure hose to the clamps (2).
  4. Install the bolt to the power steering line support clamp (4).

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  5. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Accessory in Engine Mechanical - 5.3L.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels
  7. Remove the drain pan from under the vehicle.
  8. Lower the vehicle.
  9. Fill the power steering system with power steering fluid. Refer to Checking and Adding Power Steering Fluid .
  10. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  11. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks .
